U-PROX MPX L

Description

U-PROX MPX L is a the center of a wireless security system. It manages a home security system and supports the connection of wireless devices (detectors, keypads, key fobs, etc.) via a radio channel at distances of up to 4800 m. The device interacts with the user and the security company using the Internet (Wi-Fi, Ethernet) and LTE communication for reliability.

The device has two transceivers – 868.0…868.6 MHz with several redundant channels and provides secure, encrypted (256-bit encryption key) two-way radio communication with radio channel sabotage detection. Wireless devices connected to U-PROX MPX L operate according to the notification scheme of data transmission – they notify about events that have occurred, such as motion detector or magnetic contact triggering, and periodically transmit their status, such as battery level, etc. This principle of operation allows you to save battery and reduce the load on the radio channel.
U-PROX MPX L supports photo verification and photo recording of alarms thanks to motion detectors with a built-in U-PROX PIR Cam.
The device has a built-in 2500 mAh battery and can operate for up to 20 hours in the absence of main power.
To interact with users, the device requires Internet access to connect to the U-PROX Cloud service. Using the cloud service and smartphone applications, users can
connect to the U-PROX MPX L for management and configuration.
The U-PROX Cloud service is required to interact with the security system and its maintenance, to receive new software versions of both the security center itself and to
update the software of wireless equipment connected to U-PROX MPX L.
U-PROX MPX L and U-PROX Cloud are designed in such a way that only the minimum required amount of personal data is stored on the cloud service in a secure form, and
communication between the device and U-PROX Cloud takes place via a secure imitation and crypto-resistant channel.
The device can work both autonomously, with the transmission of events to users’ smartphones, and with connection to security companies. The device uses Internet
access to transmit events to security companies. Depending on the device settings, events can be transmitted to the security company directly and/or via the U-PROX
Cloud.

Safety warnings

During installation and operation of the device, it is necessary to comply with the “Rules for the technical operation of consumer electrical installations” and the “Rules for the safe operation of electrical installations”.

Installation work must be performed with the power supply switched off. In addition, fire safety rules must be observed when performing any work.

DO NOT DISASSEMBLE THE DEVICE OR ITS POWER SUPPLY UNIT WHILE VOLTAGE IS APPLIED AND DO NOT USE A POWER SUPPLY UNIT WITH A DAMAGED CABLE.

THE DEVICE HAS A BUILT-IN BATTERY. REPLACING THE BATTERY WITH AN INCORRECT TYPE MAY RESULT IN FIRE OR EXPLOSION. DISPOSE OF USED BATTERIES IN ACCORDANCE WITH LOCAL LAWS AND REGULATIONS.

THE BATTERY MUST NOT BE CHARGED AT TEMPERATURES BELOW 10°C; MAKE SURE THAT THE POWER ADAPTER IS CONNECTED.

Device functional elements

1. Device enclosure
2. LED indicator
3. Mounting plate
4. GID — serial number
5. Tamper contact
6. Power button
7. Power supply connector
8. SIM card holder No.1
9. SIM card holder No.2
10. Cable retainers

Mobile communication

U-PROX MPX L supports 4G/2G communication. Data transmission speed in 2G is 20–55 kbit/s, and in 4G it can reach up to 10 Mbit/s.

The device works sequentially with two SIM cards, when one of the cards is active, the other is in cold standby.

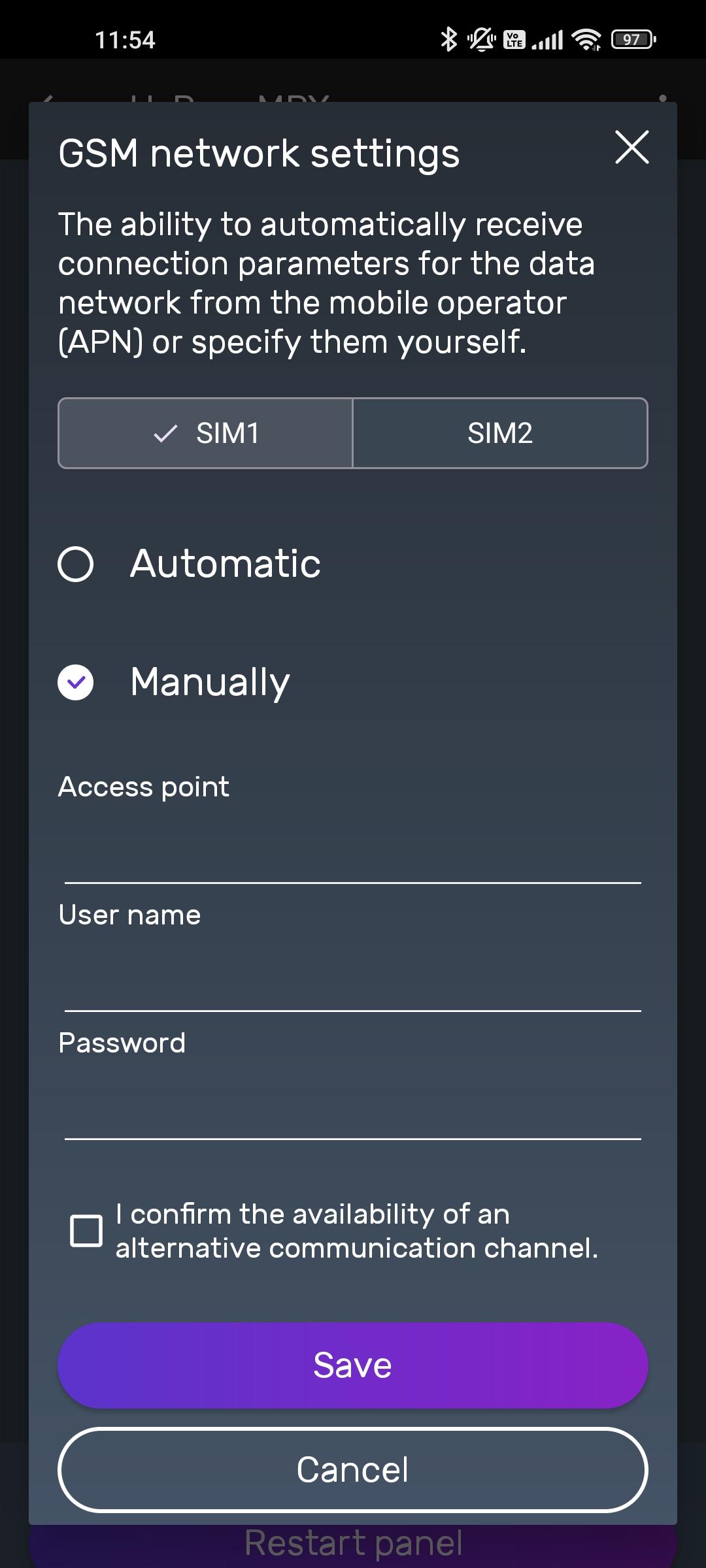

The device automatically detects the service provider and settings for accessing the mobile network.
Depending on the services provided by the service provider, not only data transfer is available, but also a call to a specific phone number, which can be used to notify users
of an alarm.

IF BOTH SIM CARDS ARE ABSENT FROM THE DEVICE FOR 5 MINUTES, THE DEVICE WILL TURN OFF THE MODEM. AFTER INSTALLING A SIM CARD, THE DEVICE MUST BE RESTARTED.

Wi-Fi

All U-PROX MPX L models support Wi-Fi 2.4 GHz.

Search and connection to the access point can be performed both locally from the U-PROX Installer mobile application via BLE (Bluetooth Low Energy) channel and remotely
from the U-PROX Installer WEB web portal or the U-PROX Installer mobile application.

DHCP is supported for dynamic IP address acquisition on the network.

Power supply

The device is powered by a 12 V power supply and is equipped with a standard DC 5.5×2.5 mm connector. This allows the use of alternative power sources or connection of an external uninterruptible power supply or battery.

In the absence of main power, the device switches to power-saving mode and operates from the built-in battery.

In this mode, if there is no Wi-Fi connection, the device turns off Wi-Fi and operates exclusively via LTE.

The constant status display of the device will also be disabled, instead the status will be displayed every 30 seconds.

Indication in normal operation mode

The U-PROX LED indicator on the front panel displays the current device status and can be configured by the user. The following indication modes are available:

• Off – the LED indicator is turned off.

• Cloud connection status – displays the connection status to U-PROX Cloud:

– Green light: connection to U-PROX Cloud is established via at least one communication channel.

– Red light: there is no connection to U-PROX Cloud via any LTE or Wi-Fi channel.

• Security status – displays the system arming status:

– Red light: the system is armed.

– Green light: the system is disarmed.

Indication during operation without main power supply

Flashes green every 30 seconds – indicates that the main power supply is absent, the device is operating in power-saving mode, and the connection to U-PROX Cloud is established via at least one communication channel (available when the Cloud connection status indication mode is enabled).

Flashes red every 30 seconds – indicates that the main power supply is absent, the device is operating in power-saving mode, and the connection to U-PROX Cloud is not available via any LTE or Wi-Fi channel (available when the Cloud connection status indication mode is enabled).

Installation

Installation location selection

Carefully select the installation location for the U-PROX MPX L wireless security control panel. It must meet the following criteria:

1. Reliable communication with U-PROX wireless devices.
2. Stable LTE network signal.
3. Stable signal of the Wi-Fi wireless network.
4. The device must not be placed in a visible location.

U-PROX MPX L must not be placed:

1. Outdoors or in places with unacceptable humidity and temperature.
2. In areas with a high level of radio interference.
3. Near objects that may cause radio signal attenuation (for example, metal, mirrors, etc.).

Connection

1. Unscrew the fixing screw.

2. Slide the backplate down and detach it.

3. Place the SIM cards (with PIN request disabled) into the holders.

4. Secure the cable using the cable retainer included in the package.

Turning on and off

For the appliance to turn on, simply connect the power supply to the appliance and plug the power supply into a power outlet.
To turn on the appliance without the main power supply connected, press the (6), the indicator light (2) will turn on and the appliance will start booting up.
To turn off the appliance, disconnect the power supply, then press and hold the (6) for 3 seconds until the sound indication and the light indication go out.

Communication testing

BEFORE PERFORMING THIS STEP, THE DEVICE MUST BE CONNECTED TO U-PROX CLOUD.

1. Launch the U-PROX Installer application.
2. Select the device from the list.
3. Move the device within the previously selected installation area.
4. Using the information provided in the U-PROX Installer mobile application, select a location with the optimal signal level.

Mounting

1. Secure the mounting plate to the surface (for example, a wall) at the installation location using the screws and wall plugs included in the package.

2. Make sure that the power supply unit is connected and secured with the cable retainer.

3. Install the device onto the mounting plate and slide it downward to secure it and lock the tamper contact.

4. Secure the enclosure with the screw included in the package.

Working with U-PROX Cloud

To work with U-PROX devices in the cloud system, two separate applications are used, the functions of which are separated. The first is the U-PROX Home user application for managing the security system and the second is the U-PROX Installer application for configuring U-PROX devices.

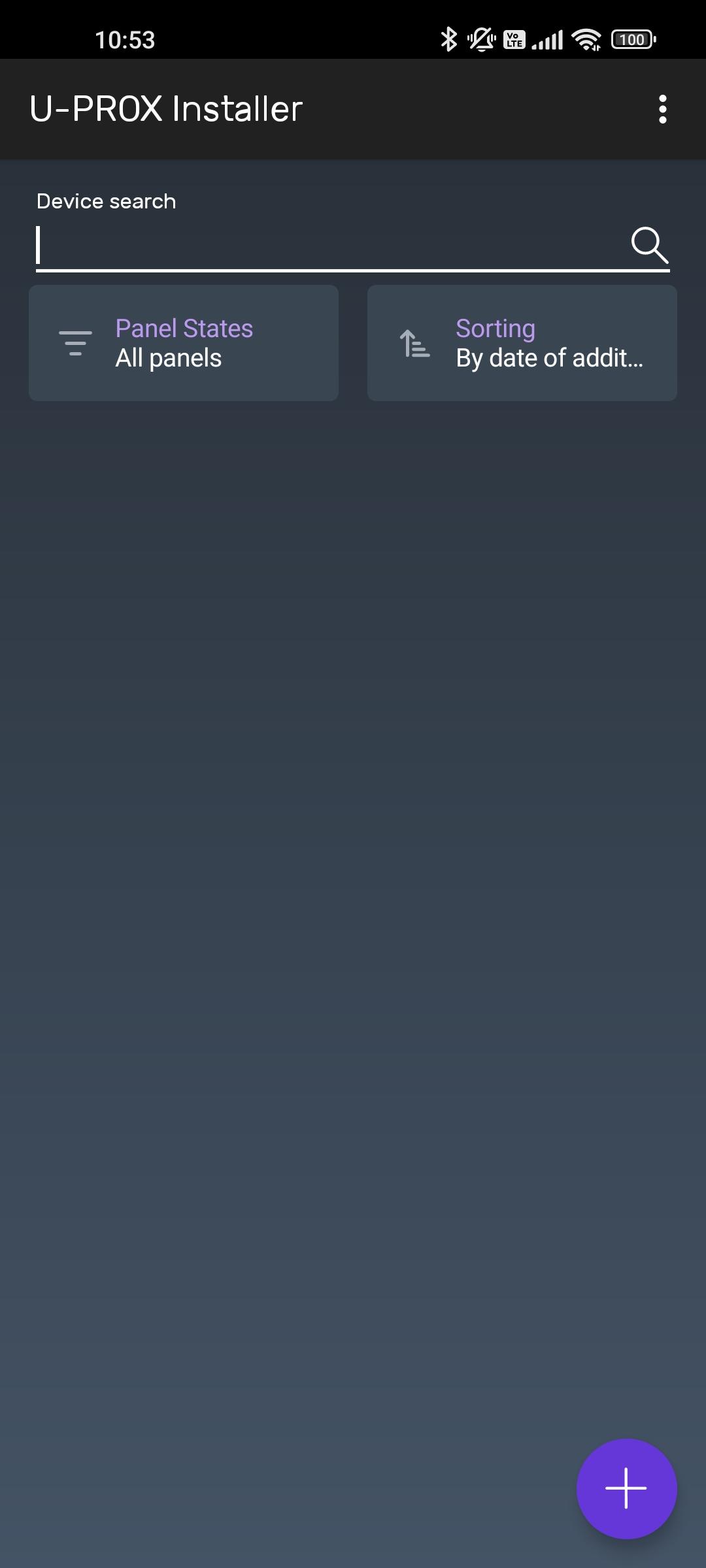

The U-PROX MPX L device is configured using the U-PROX Installer mobile application or the U-PROX Installer WEB web portal via the U-PROX Cloud.
To access U-PROX Cloud services, you need to register and create an account. To register an account, use your email address.

U-PROX Cloud accounts

The cloud system supports the following account types:

Individual (standalone) installer

Registration is performed via the U-PROX Installer application or on the U-PROX Installer web portal:

https://web-security.u-prox.systems/

The individual installer can:

• Add U-PROX MPX L devices to U-PROX Cloud

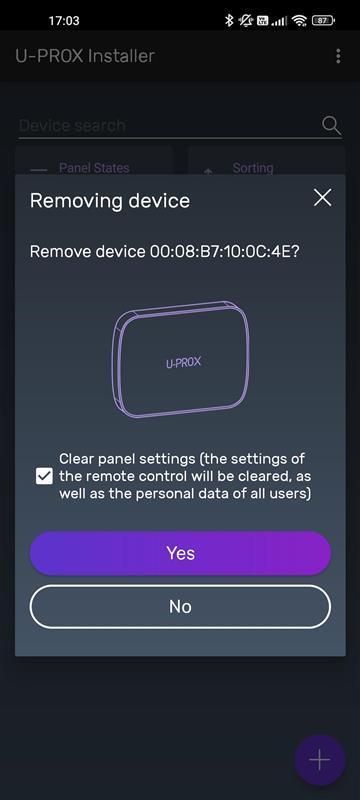

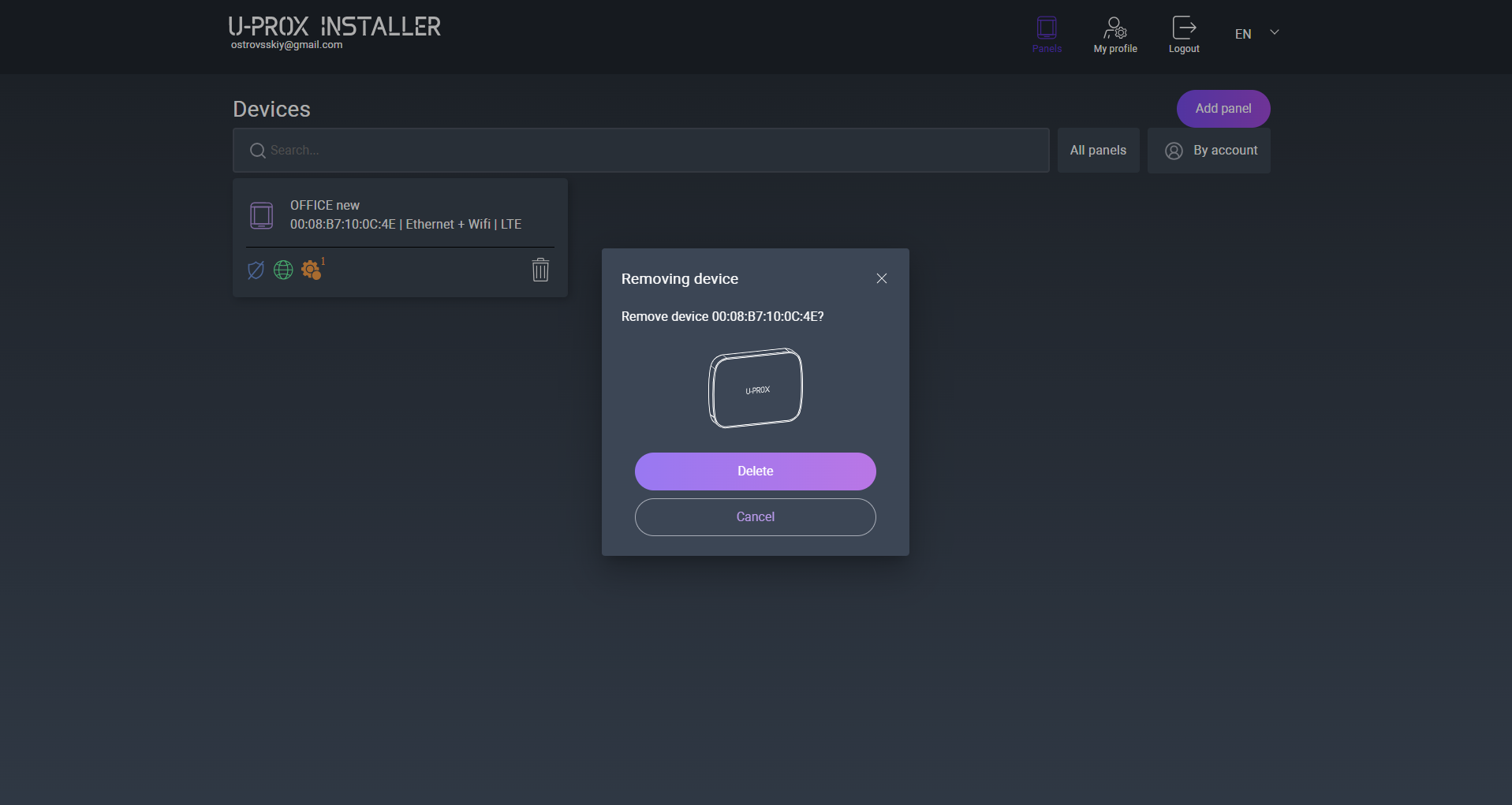

• Remove U-PROX devices from U-PROX Cloud

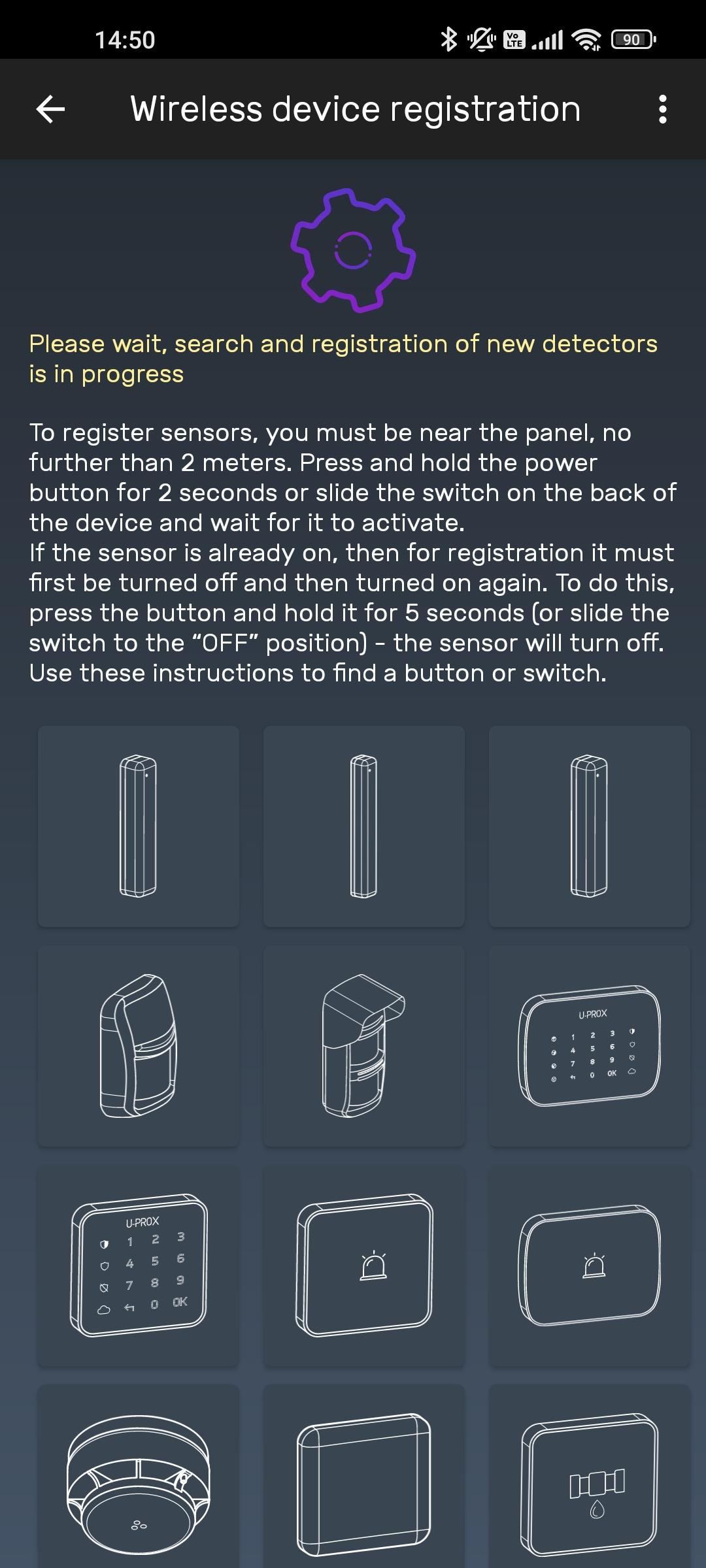

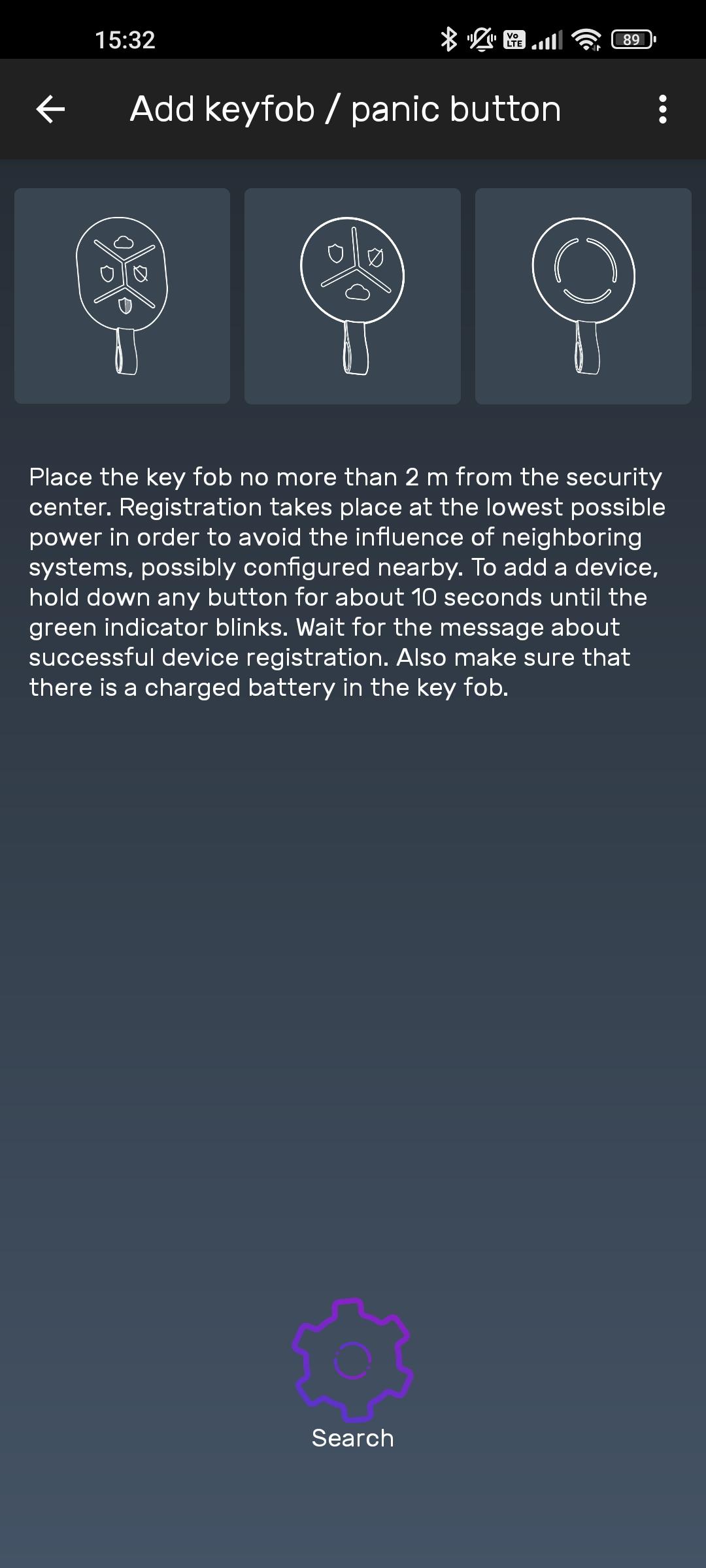

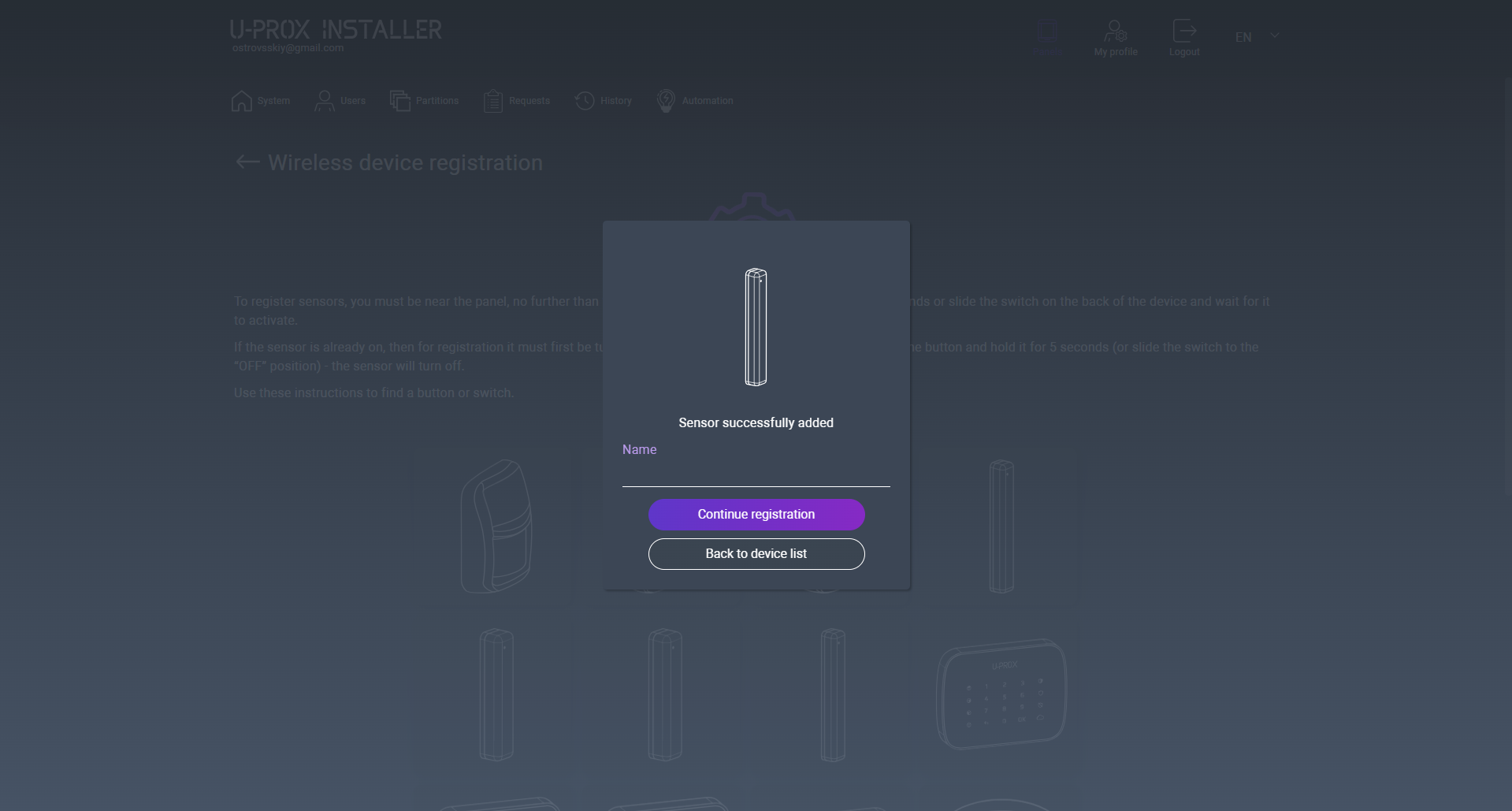

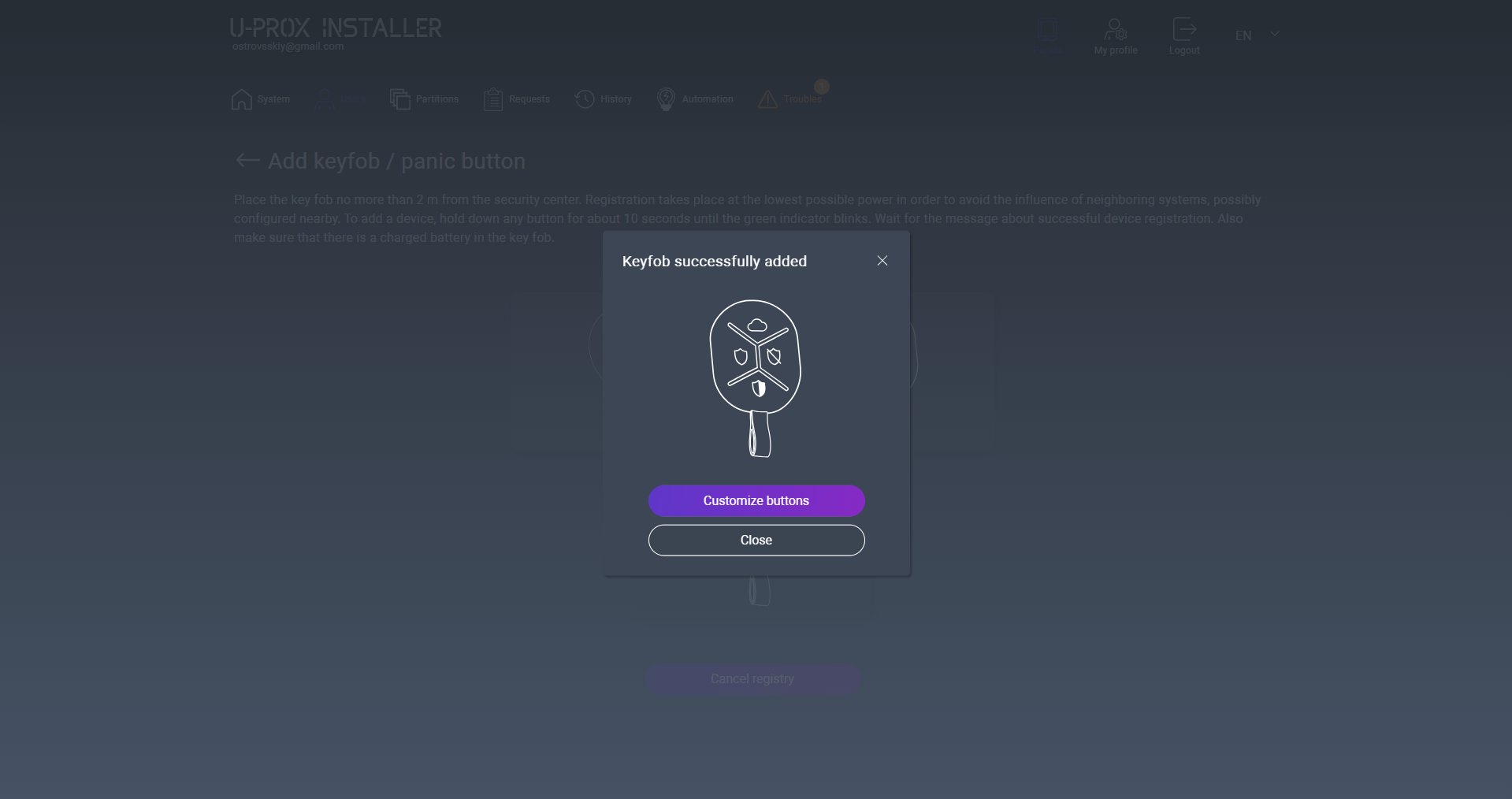

• Add (register) wireless devices to U-PROX MPX L, such as detectors, keypads, etc.
• Configure added wireless devices
• Configure security groups in U-PROX MPX L devices

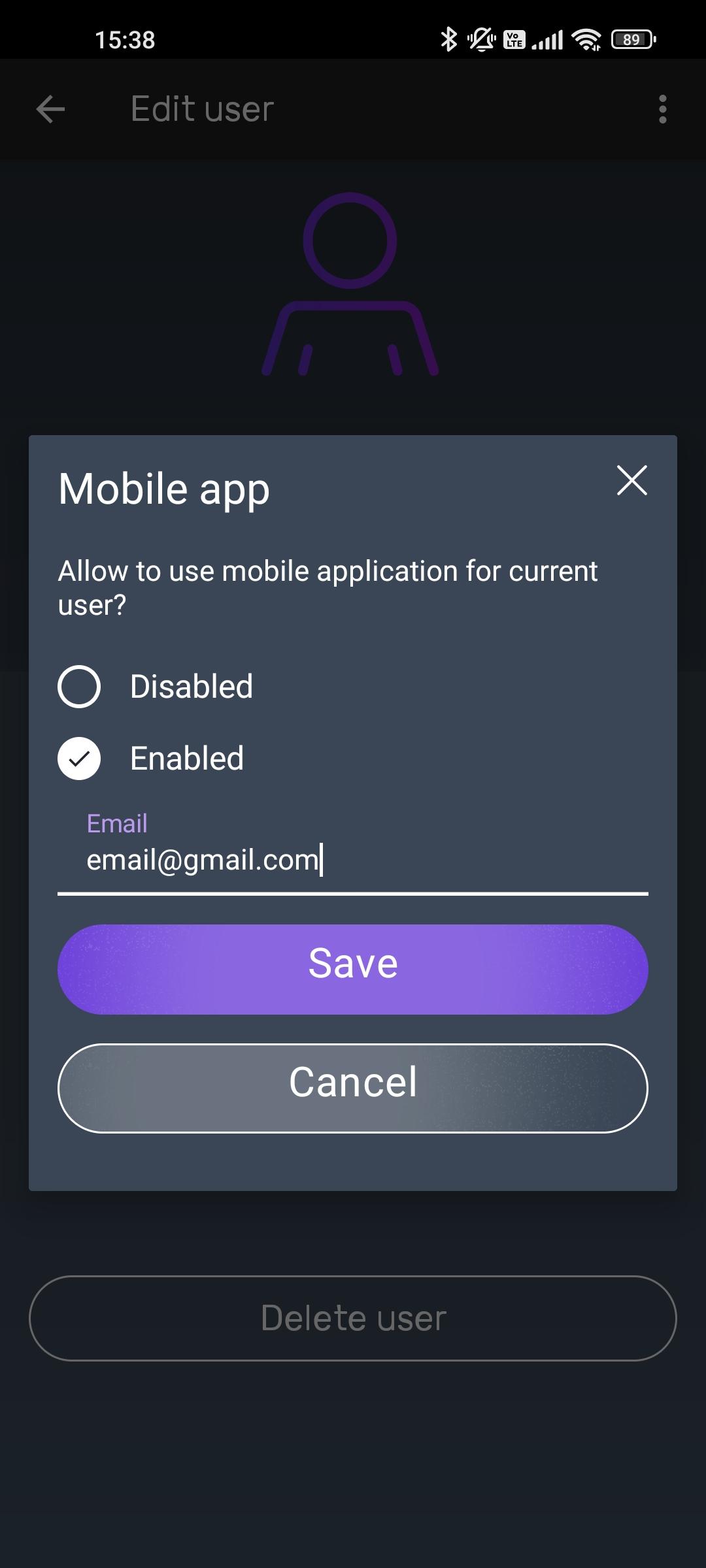

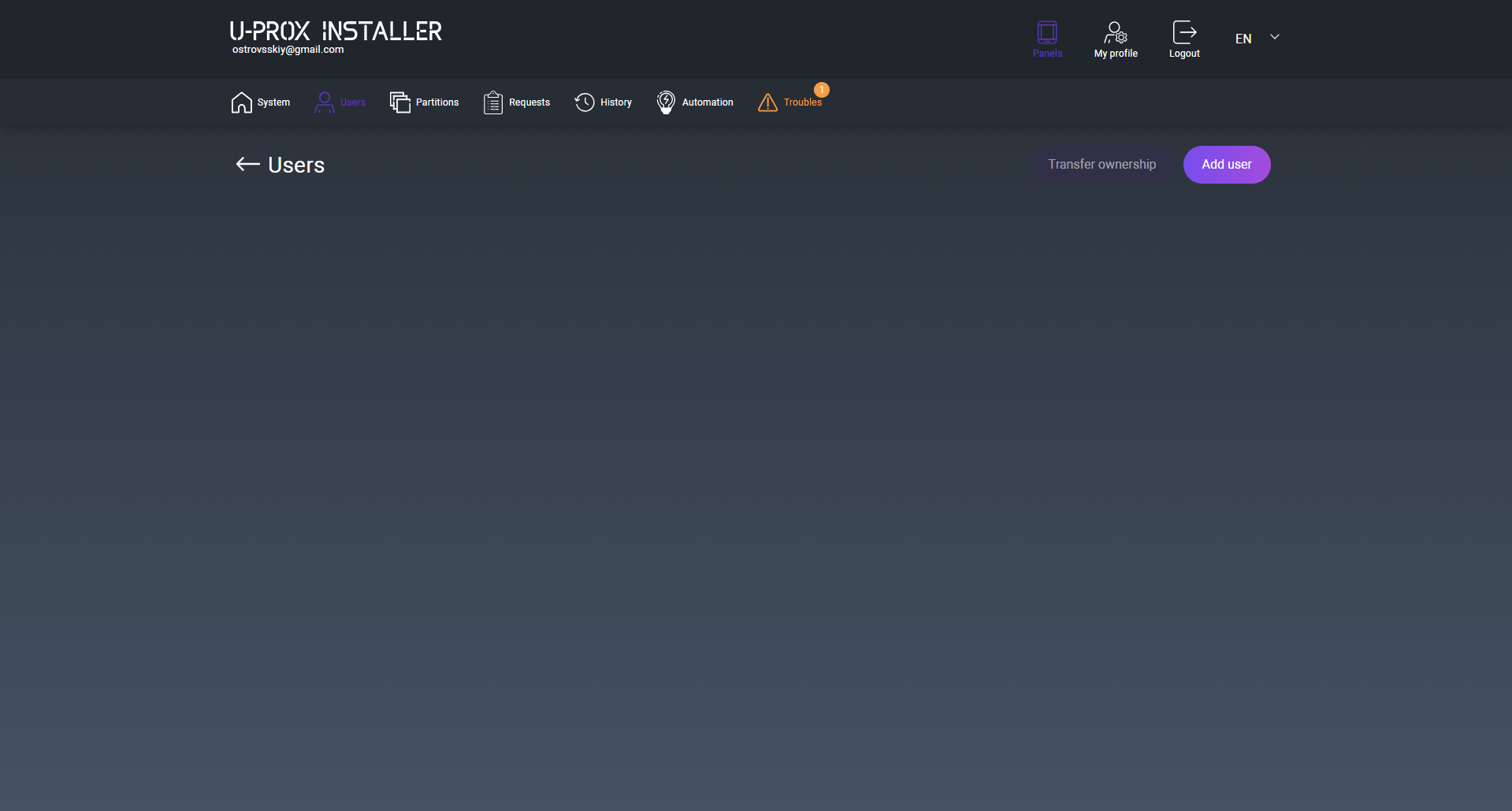

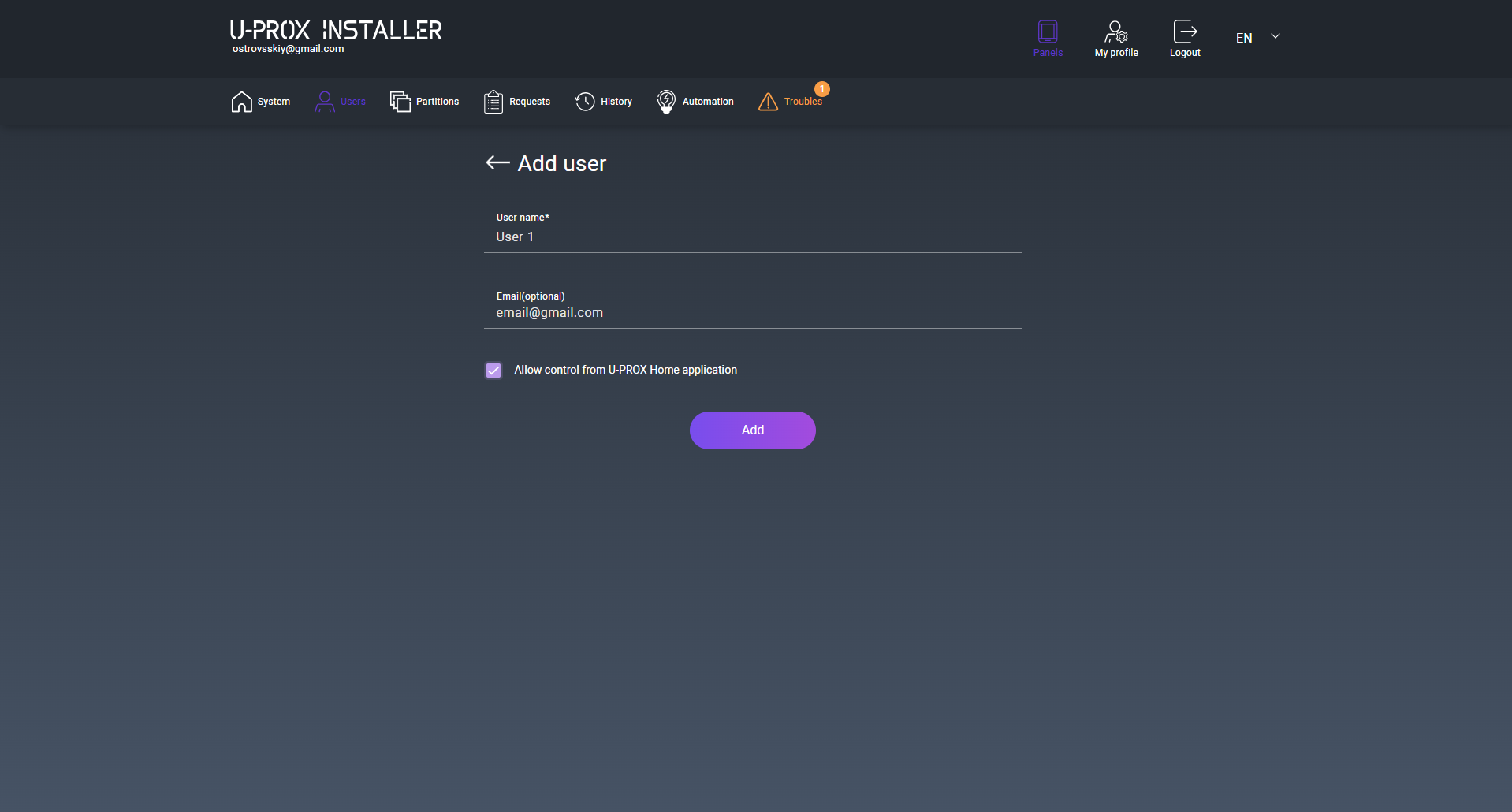

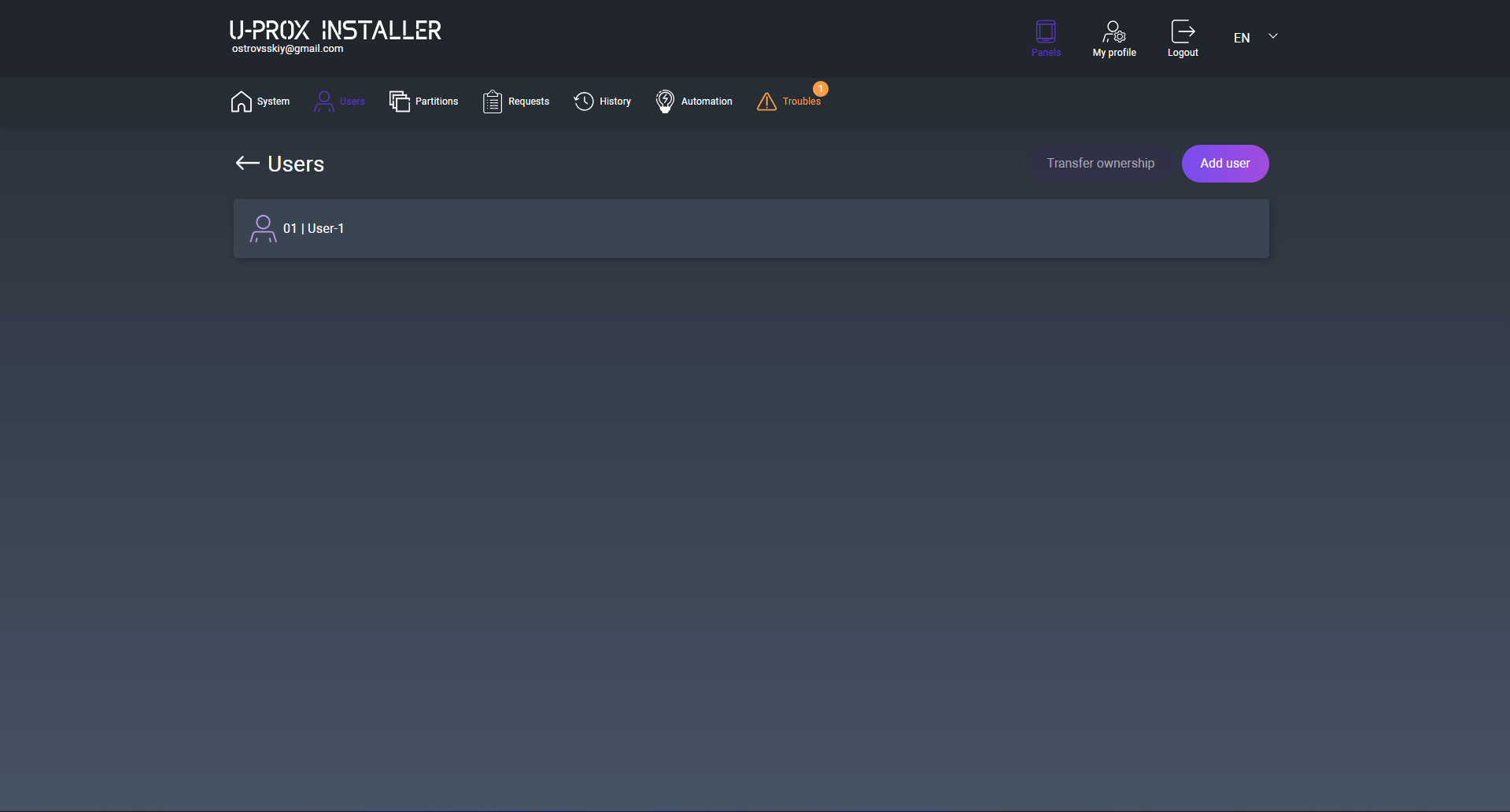

• Create users of the U-PROX MPX L security system and configure their access parameters (keypad code, key fob, notifications, etc.)

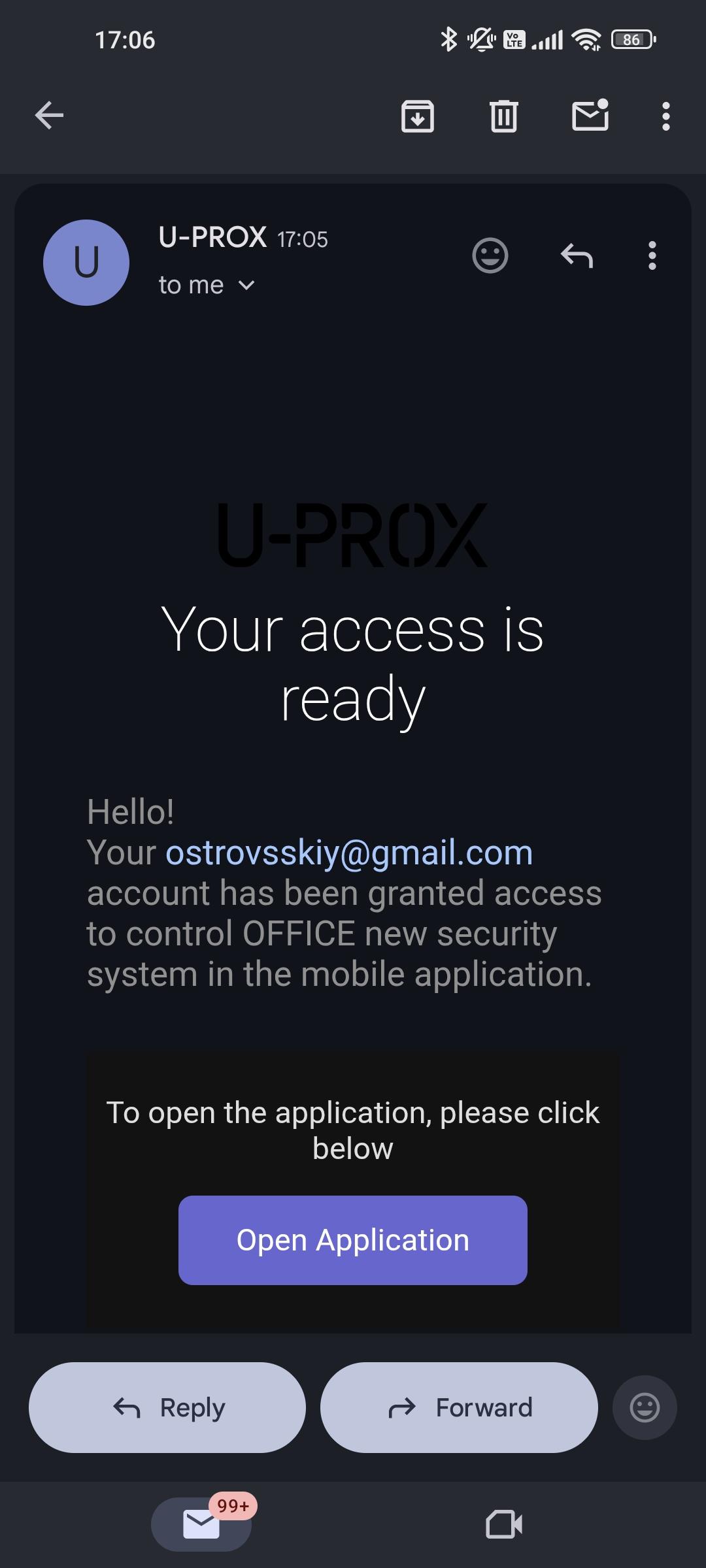

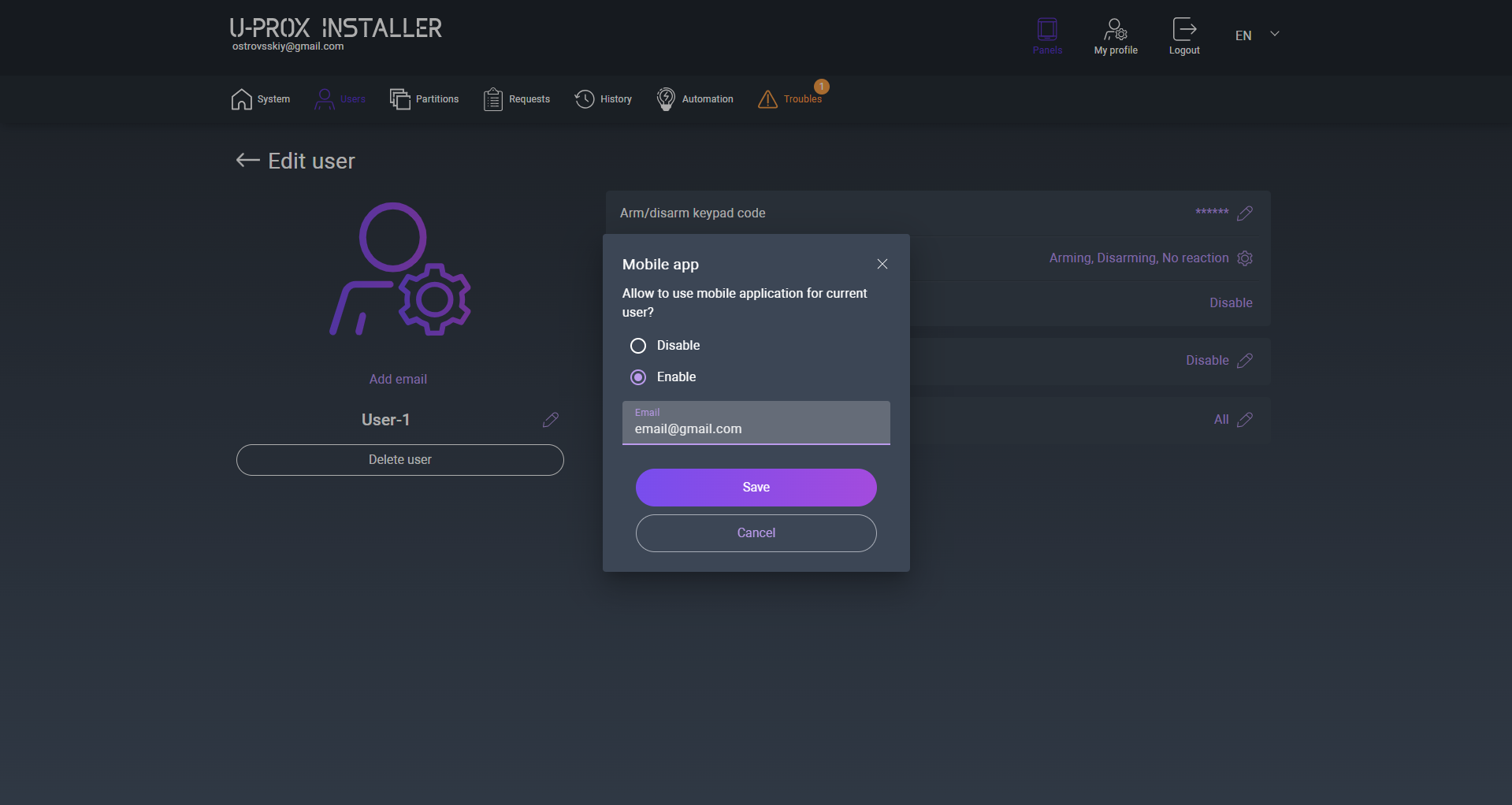

• Grant users access to the U-PROX Home mobile application
• View events for all U-PROX devices added to the installer’s account
• Transfer the U-PROX MPX L security system to a security company for maintenance

Security company administrator

To register, send a request to:

support@u-prox.systems

The security company administrator can:

• Configure company information – description, logo, contact details
• Manage company personnel – add or remove engineers and managers
• Manage personnel access rights (for example, restrict the list of devices available to an installer)
• Process connection requests from individual installers
• Add U-PROX MPX L devices to U-PROX Cloud
• Remove U-PROX devices from U-PROX Cloud
• Add (register) wireless devices to U-PROX MPX L, such as detectors, keypads, etc.
• Configure added wireless devices
• Configure security groups in U-PROX MPX L devices
• Create users of the U-PROX MPX L security system and configure their access parameters
• Grant users access to the U-PROX Home mobile application
• View events for all U-PROX devices added to the security company account
• Download the U-PROX Console v2 event receiver software to receive events from security control panels and connect to monitoring software

Security company installer

Registration is performed via an invitation link that the security company administrator sends to the installer’s email address.

The security company installer can:

• Add U-PROX MPX L devices to U-PROX Cloud
• Add (register) wireless devices to U-PROX MPX L, such as detectors, keypads, etc.
• Configure added wireless devices
• Configure security groups in U-PROX MPX L devices
• Create users of the U-PROX MPX L security system and configure their access parameters
• Grant users access to the U-PROX Home mobile application
• View events for all U-PROX devices added to the installer’s account

Security company manager

Registration is performed via an invitation link that the security company administrator sends to the installer’s email address.

The security company manager can:

• View devices and events for all U-PROX devices added to the manager’s account
• Process connection requests from individual installers

User of a system serviced by a security company

Registration is performed via an invitation link that the security company installer sends to the user’s email address.

System management is performed using a separate U-PROX Home user application.

The user can:

• View the status of the security system and its devices
• Arm and disarm the system
• Perform partial arming – “Perimeter” (night mode)
• Control home automation actuators – relays, valves, etc.
• View system events
• View video from surveillance cameras online
• Receive alarm notifications
• View images on request or during alarm photo verification from U-PROX PIR Cam detectors
• Add users if the installer has granted the appropriate permission

Standalone system user

Registration is performed via an invitation link that the individual installer sends to the user’s email address.

System management is performed using a separate U-PROX Home user application.

The user can:

• View the status of the security system and its devices
• Arm and disarm the system
• Perform partial arming – “Perimeter” (night mode)
• Control home automation actuators – relays, valves, etc.
• View system events
• View video from surveillance cameras online
• Receive alarm notifications
• View images on request or during alarm photo verification from U-PROX PIR Cam detectors
• Add users if the installer has granted the appropriate permission
• Transfer the U-PROX MPX L security system to a security company for maintenance

U-PROX Installer mobile application

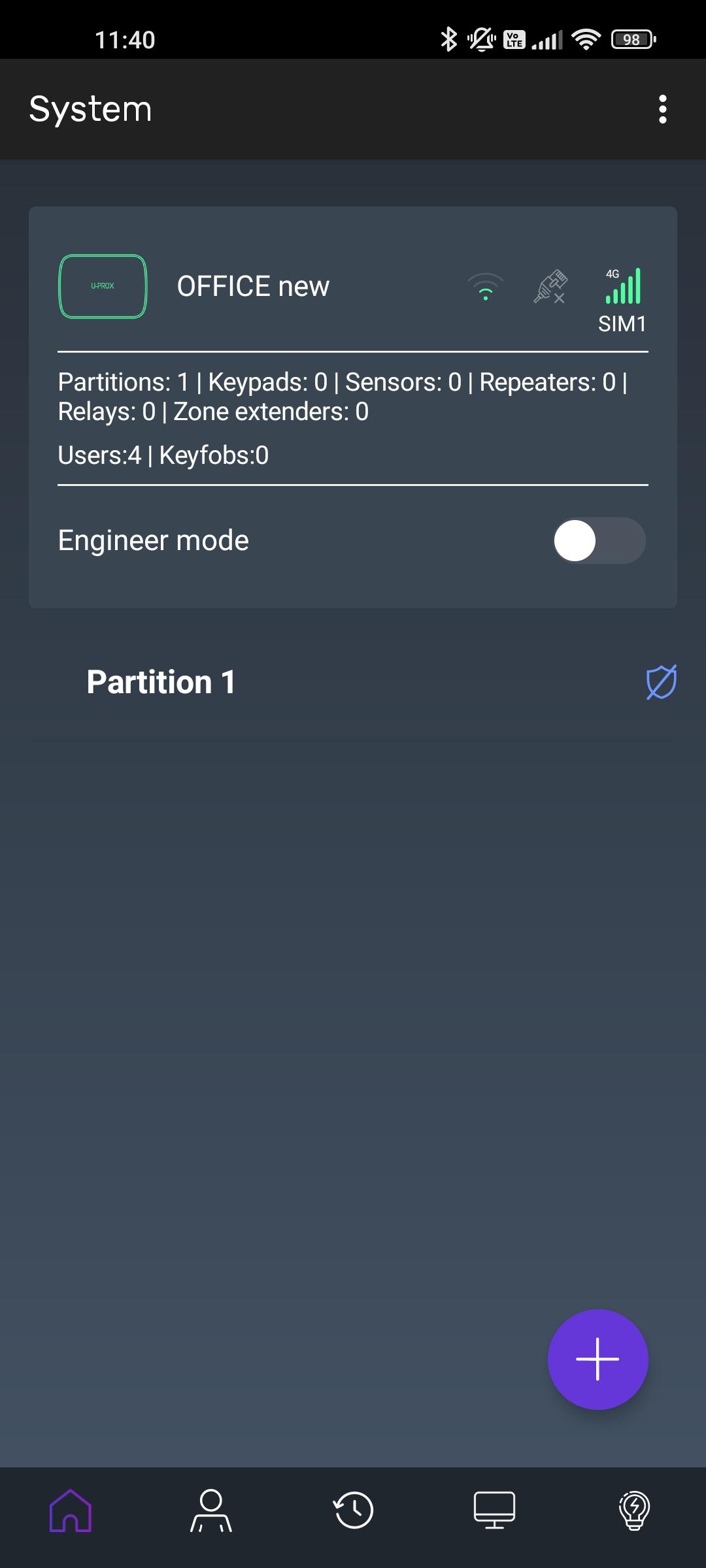

This application is used to configure the U-PROX wireless security system. It is intended both for individual users and for engineers of centralized monitoring organizations.

Using a mobile phone, the application allows full configuration of the security system – installation, testing, and calibration of wireless system elements; configuration of security groups; connection to monitoring stations; adding users and granting them rights to control the security system via the U-PROX Home application.

U-PROX Home mobile user application

This application is intended for managing the U-PROX wireless security system.

Using a mobile phone, regardless of your location, you can arm/disarm your premises, control home automation devices, and monitor system events via push notifications and event history for a selected time period.

Using this single application, you can manage multiple security systems (for example: an apartment, a country house), each of which may have one or more security groups (for example: house, garage, safe).

Installer web portal

The U-PROX Installer web portal is intended for configuring the U-PROX wireless security system. It is intended both for individual users and for engineers of centralized monitoring organizations.

Using a web browser, you can perform full system configuration – installation, testing, and calibration of wireless system elements; configuration of security groups; connection to monitoring stations; adding users and granting them rights to control the system via the U-PROX Home application.

https://web-security.u-prox.systems/

U-PROX Console v2 event receiver

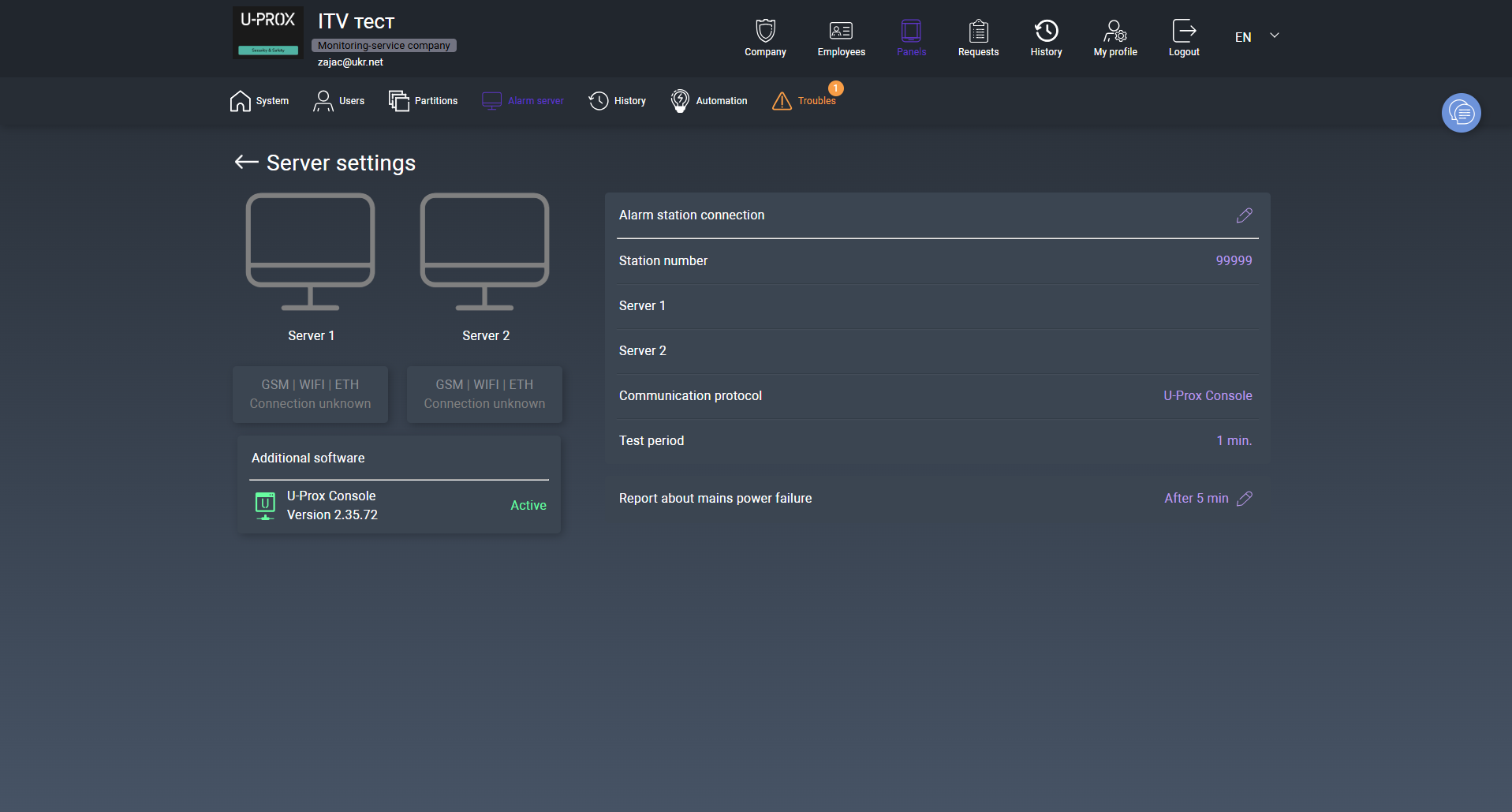

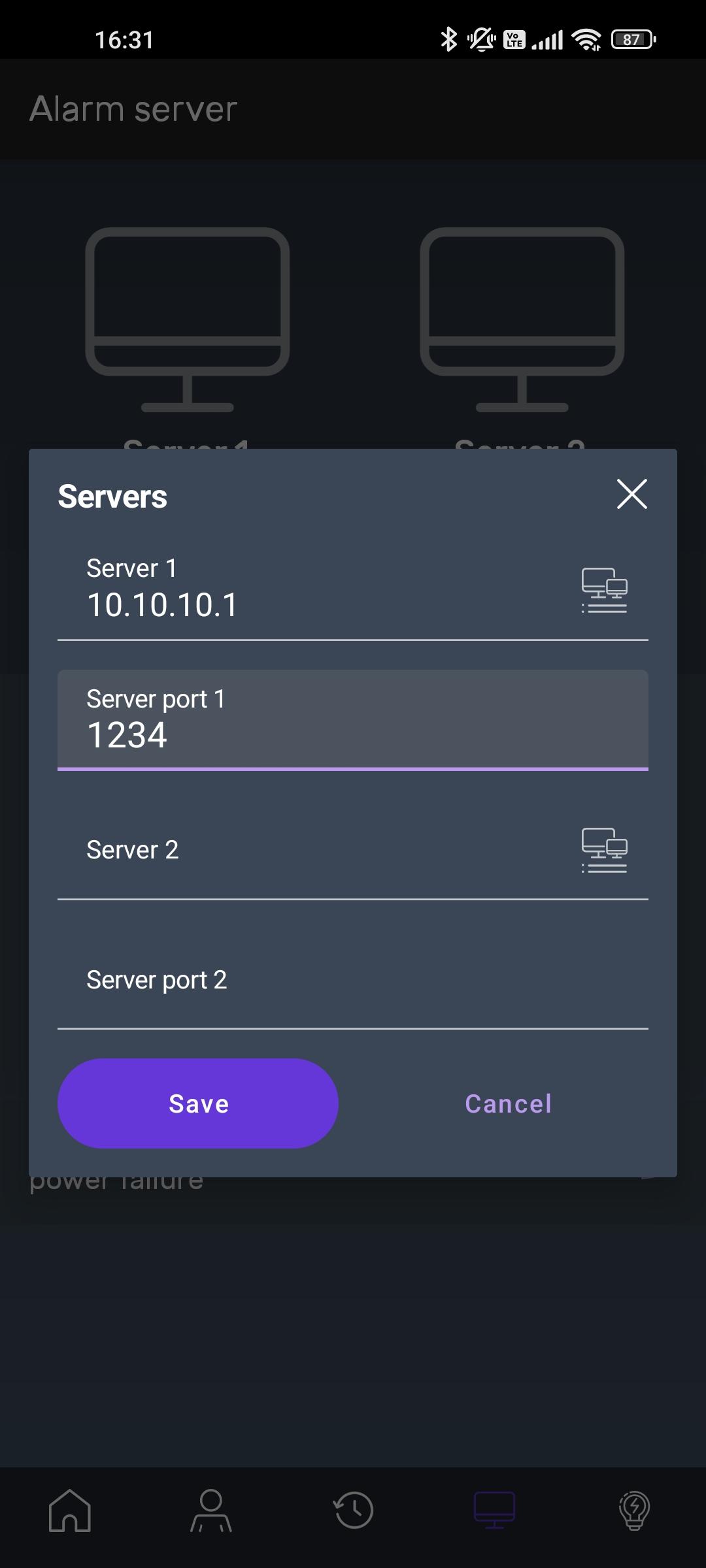

U-PROX Console v2 is software designed for convenient integration of U-PROX devices with monitoring software. It works with most monitoring programs and supports ContactID, SIA DC09, and XML formats.

You can download the U-PROX Console v2 software and the configuration file from the security company administrator’s workspace on the U-PROX Installer web portal.

Settings

1. Download and install the U-PROX Installer mobile application to configure the system.

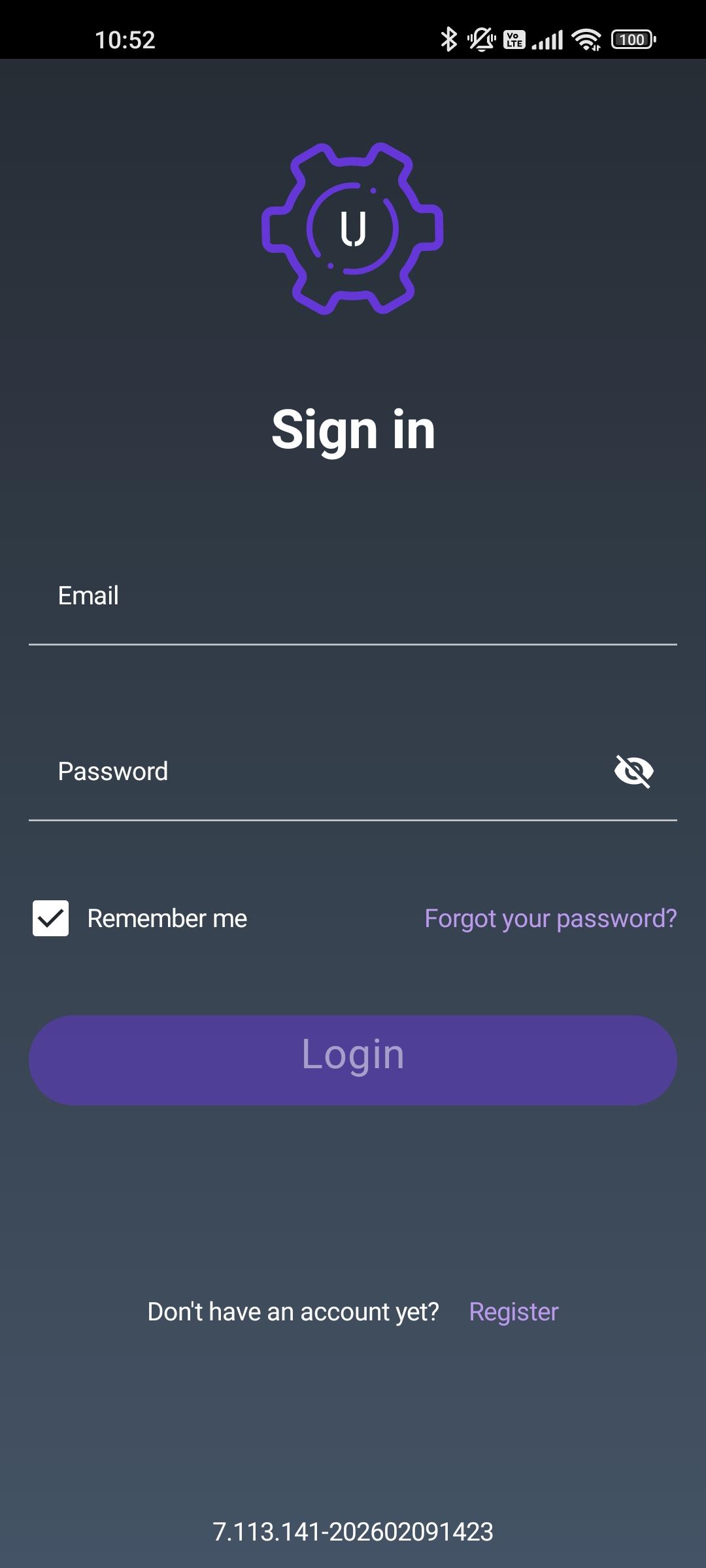

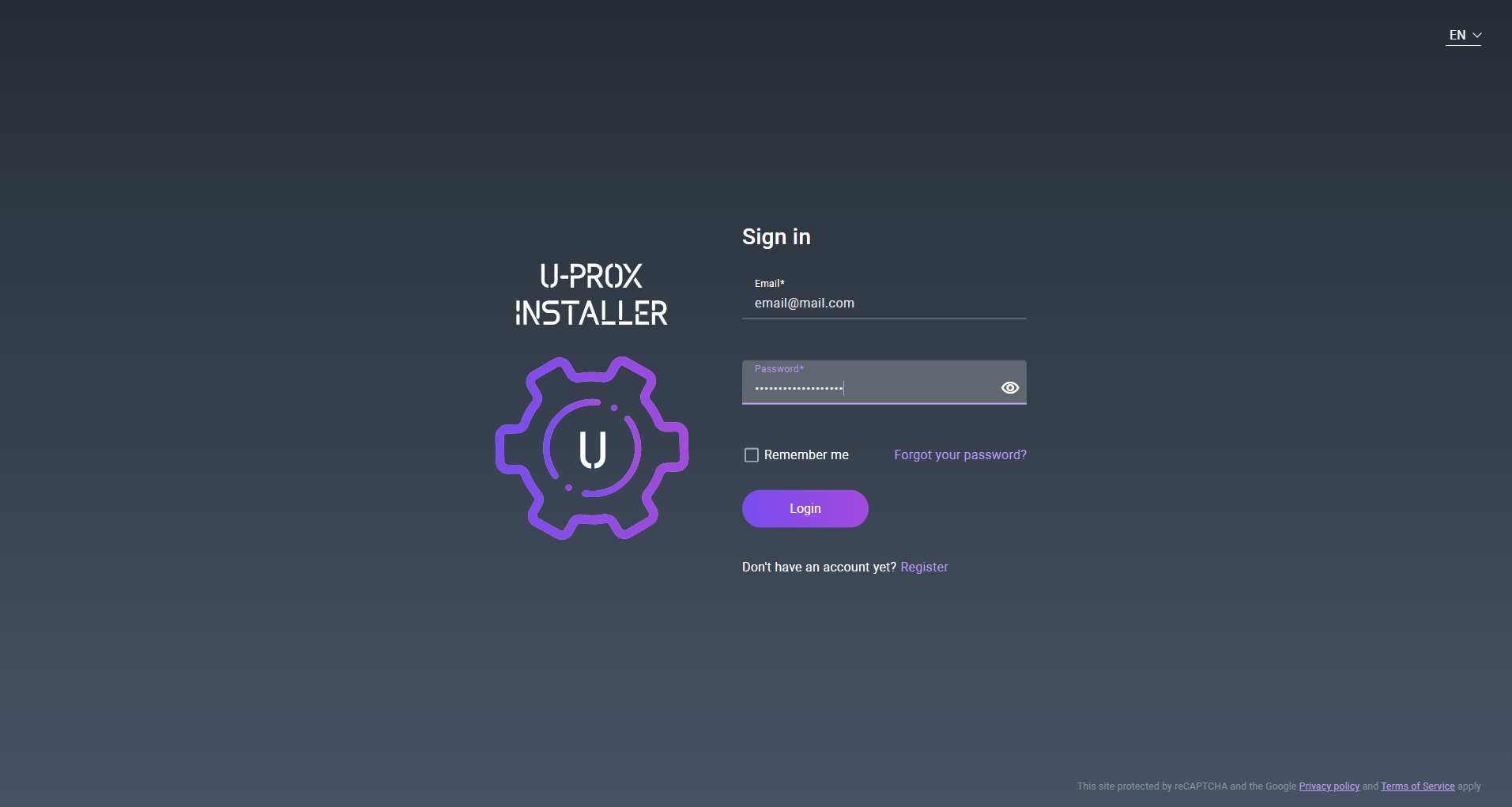

2. Launch the U-PROX Installer application and log in.

IF NECESSARY, REGISTER IN THE SYSTEM AS A STANDALONE INSTALLER OR OBTAIN ACCESS AS A SECURITY COMPANY INSTALLER.

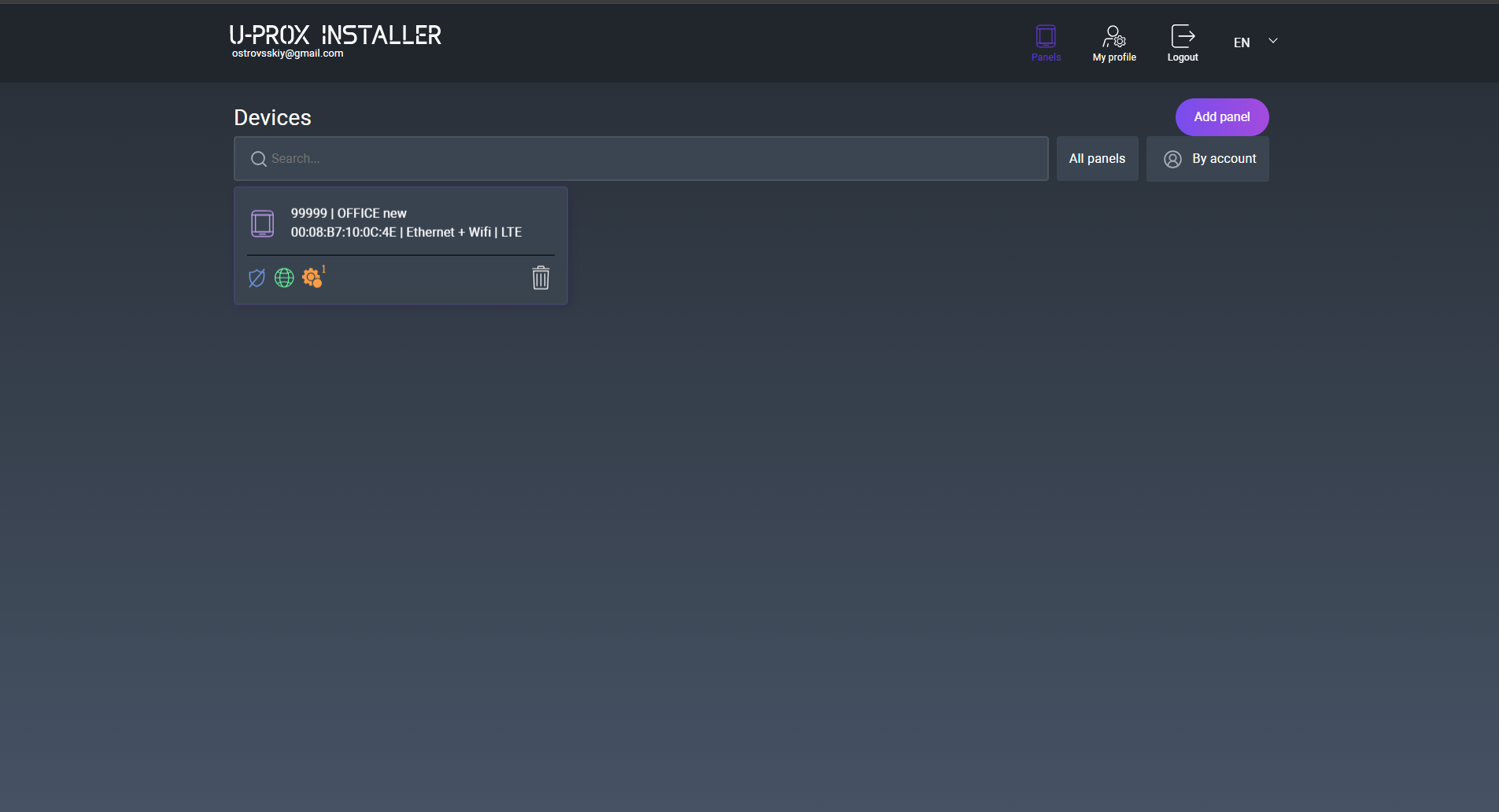

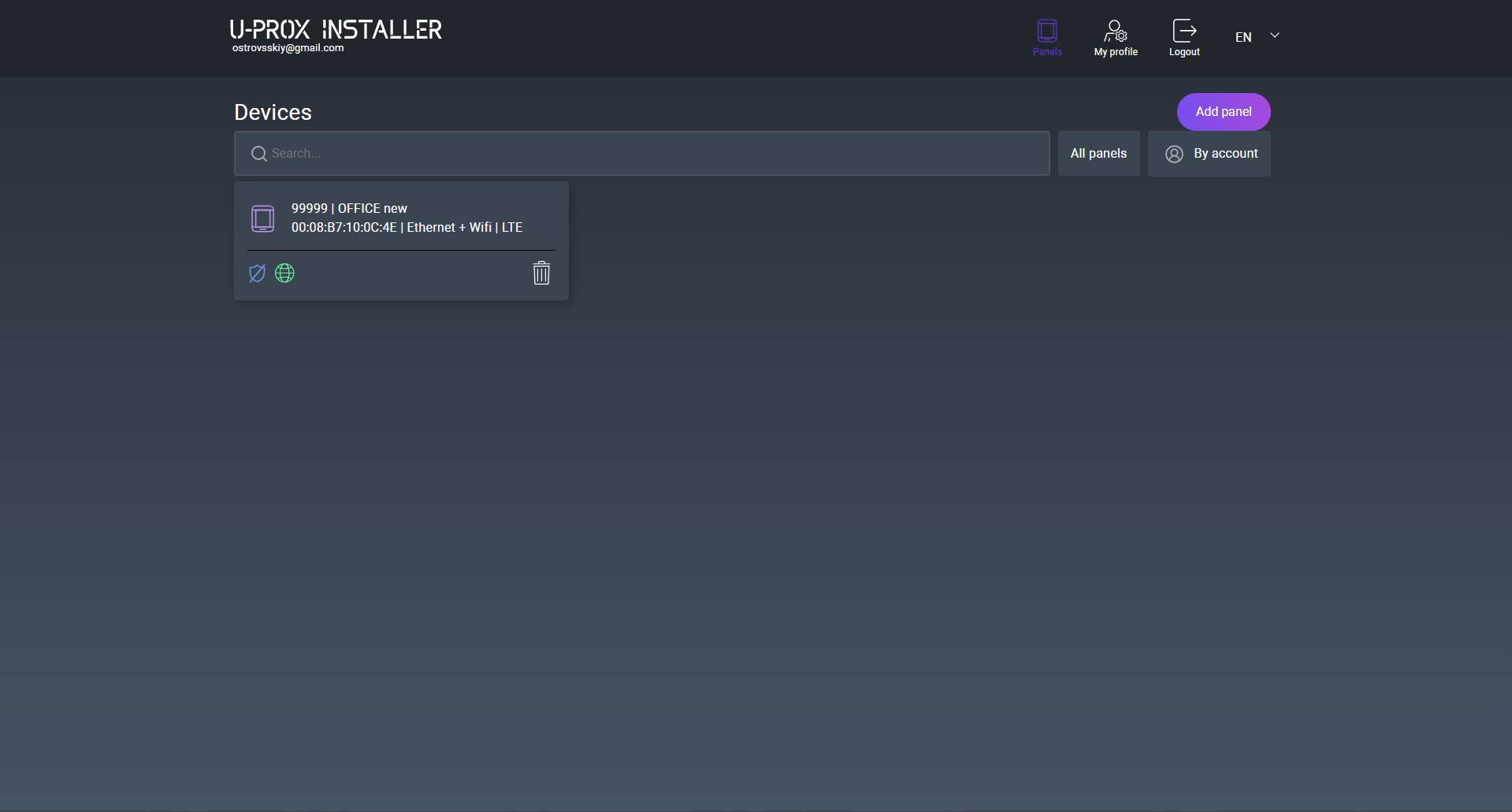

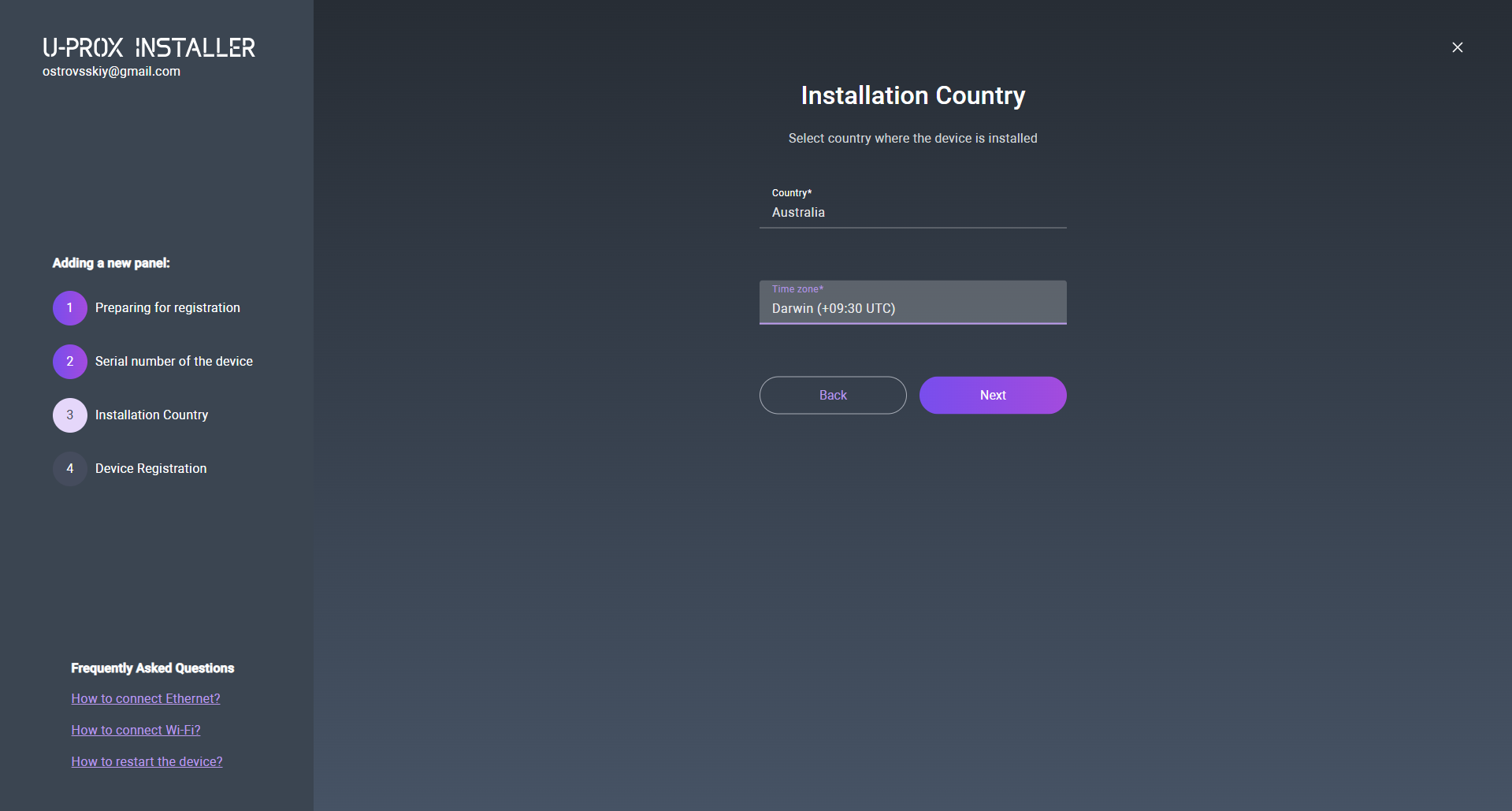

Adding a device to U-PROX Cloud

1. Launch the U-PROX Installer application or open the web portal in a browser and log in to the system

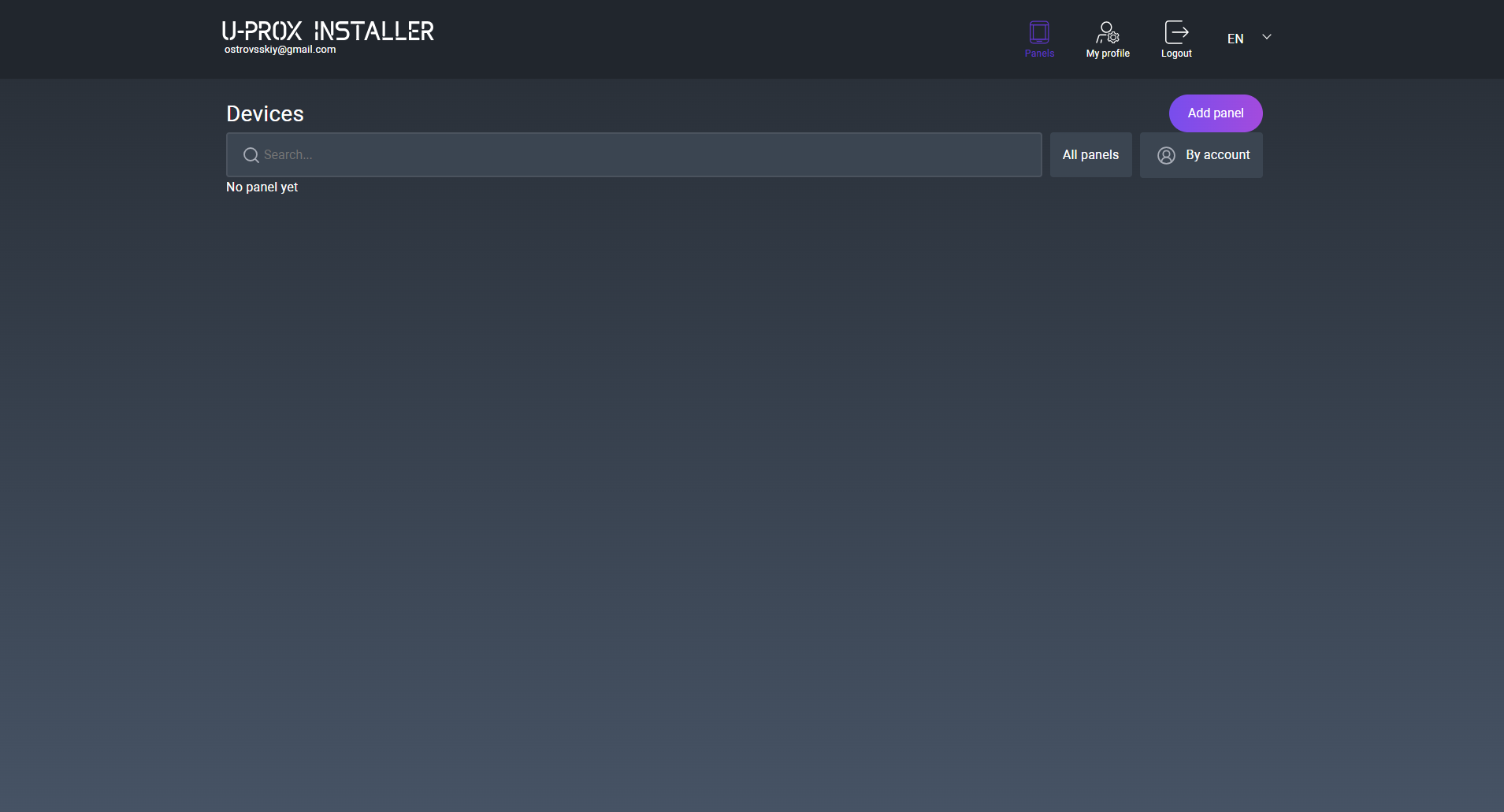

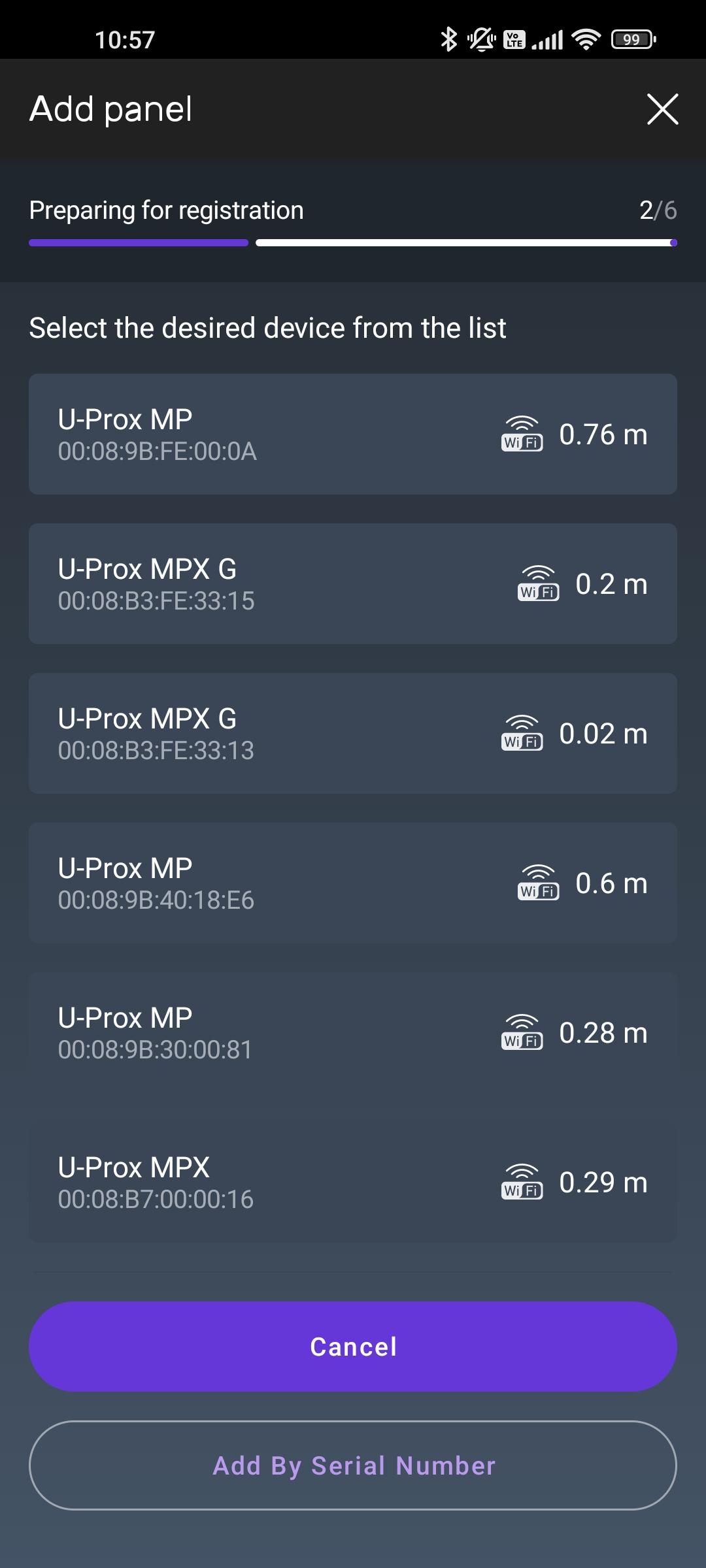

2. Press the (+) button (“Add device”) to add a device

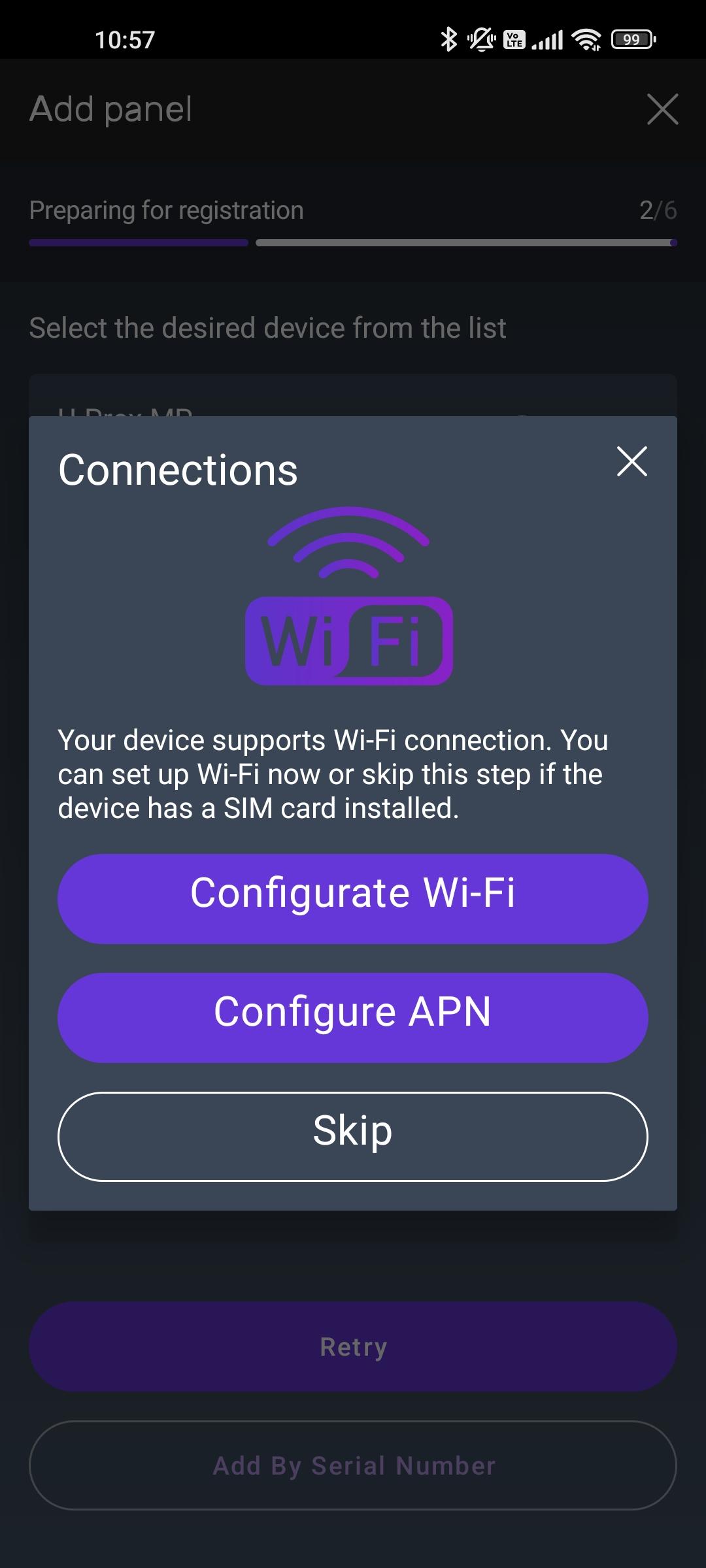

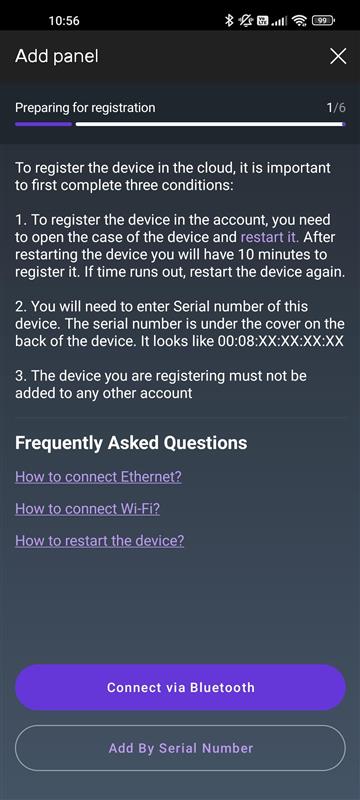

3. When adding a device from the U-PROX Installer mobile application, it is possible to add the security control panel by serial number or find it via Bluetooth:

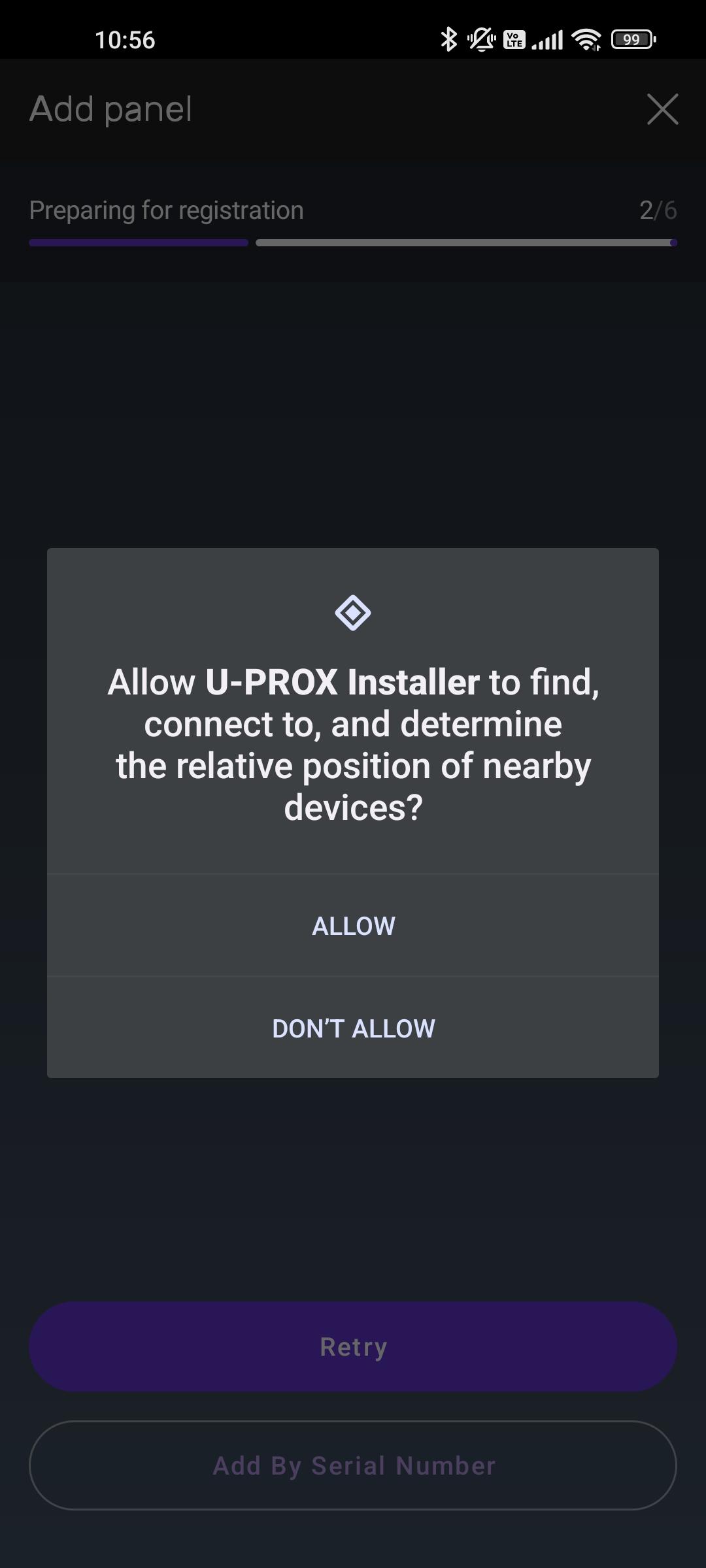

• • When pressing the “Connect via Bluetooth” button, the application will search for the device via Bluetooth. For correct operation of the application, it is necessary to enable location services and Bluetooth
•
  • To activate Bluetooth in the device, it is necessary to trigger the device tamper contact. To do this, slide the device installed on the mounting plate upward. Or, if the device has not yet been mounted, slide the mounting plate (3) downward

• The U-PROX Installer application will search and display the devices found nearby

• Select from the list the device that needs to be added to the account

• After selecting the device, the application will prompt you to configure Wi-Fi. Click “Skip” to perform the configuration later; in this case, the device will use mobile Internet (if a SIM card is inserted) or Ethernet – wired Internet connection – to communicate with U-PROX Cloud

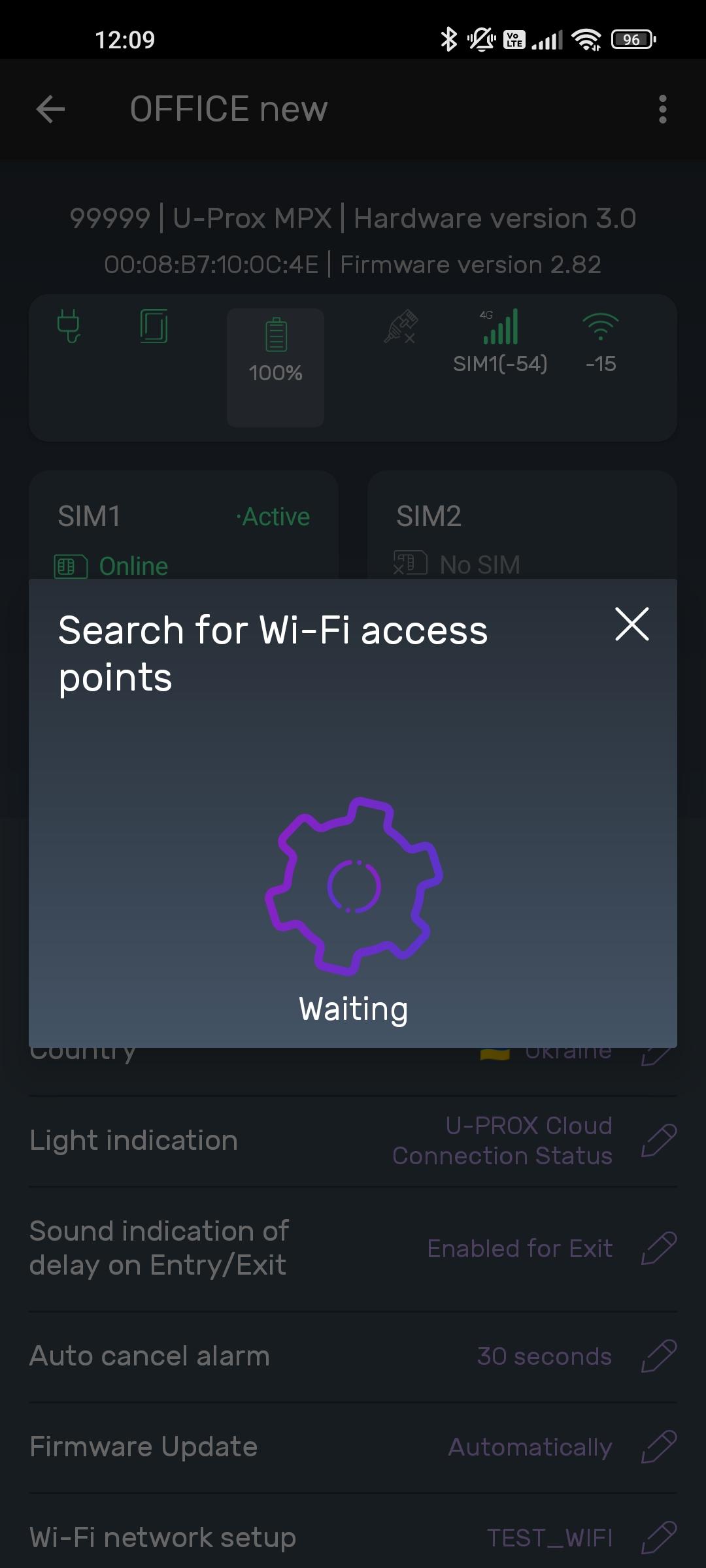

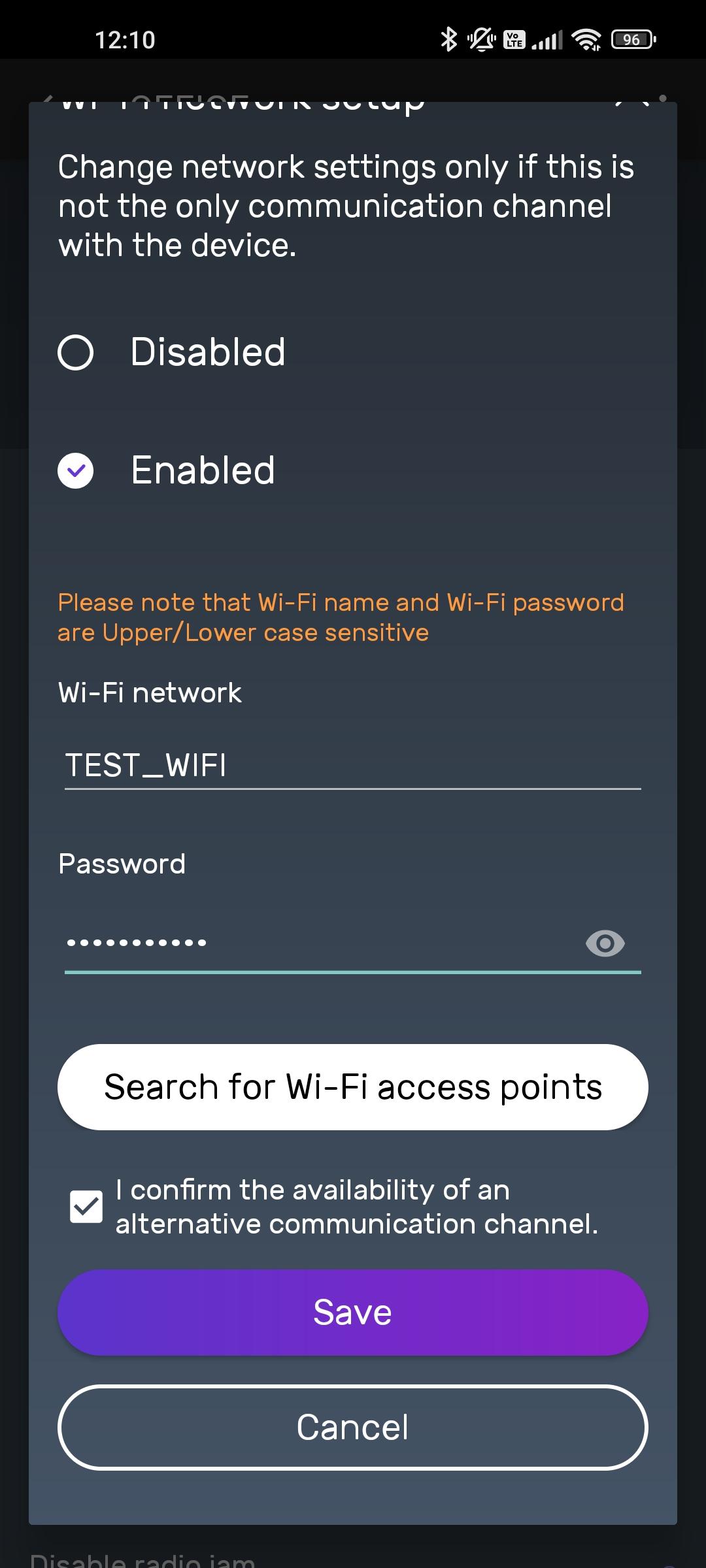

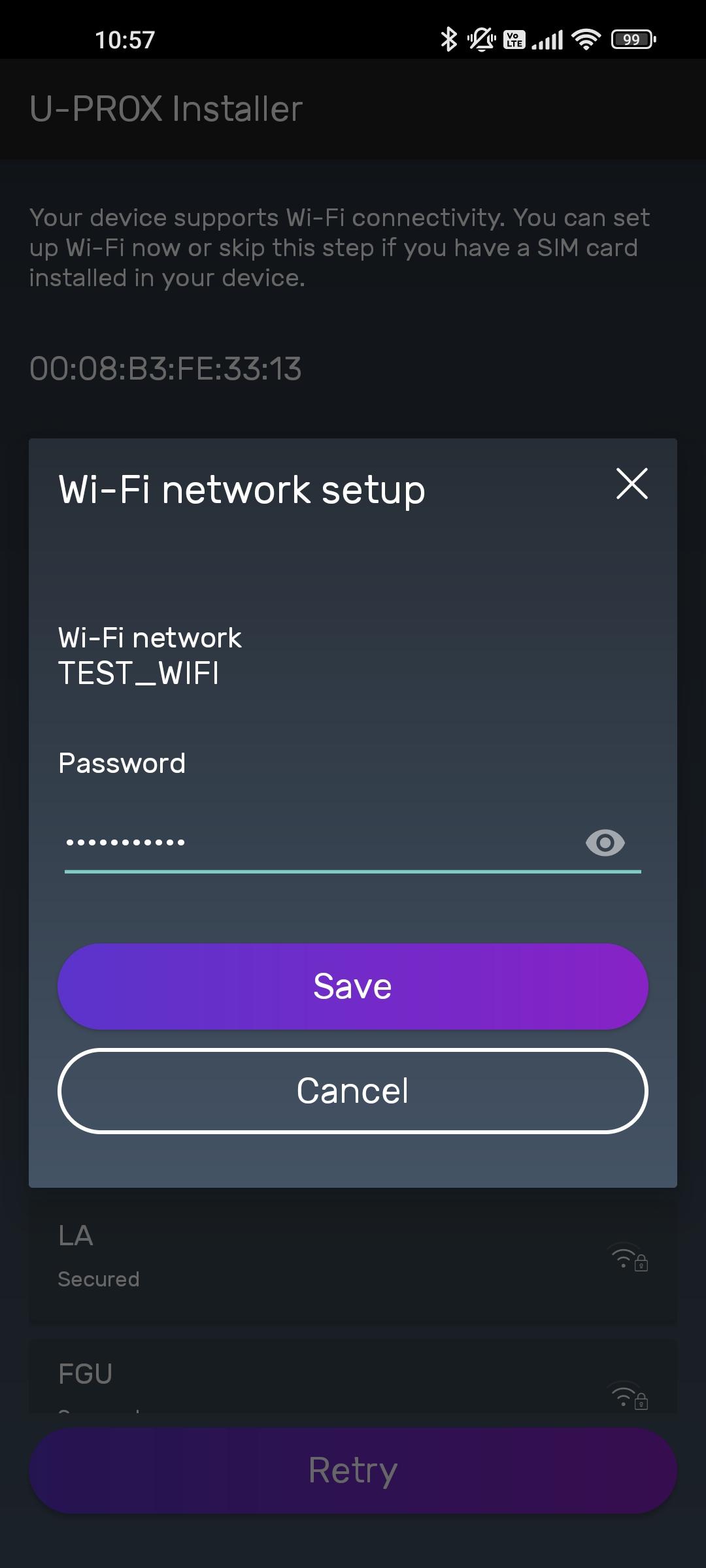

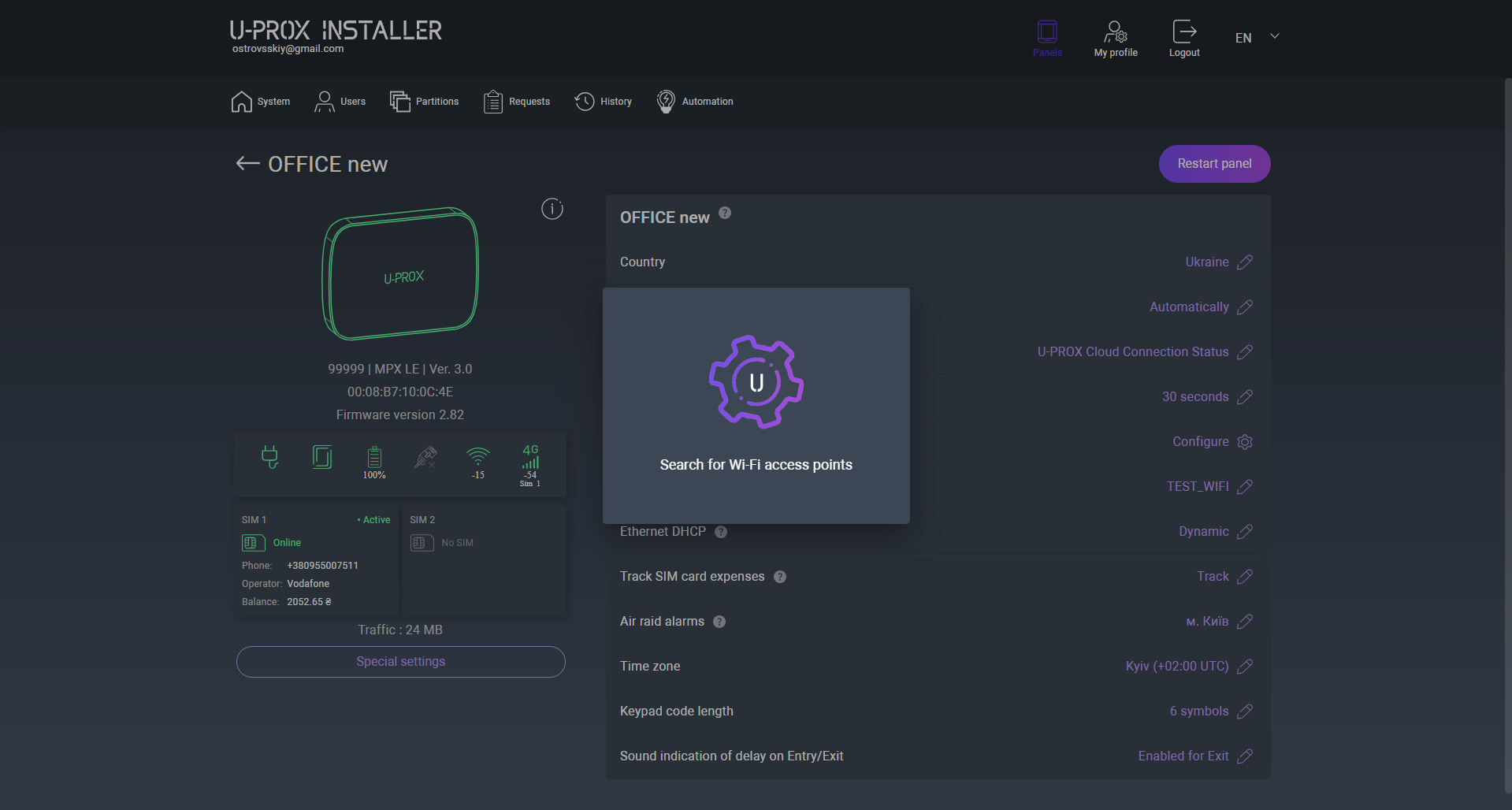

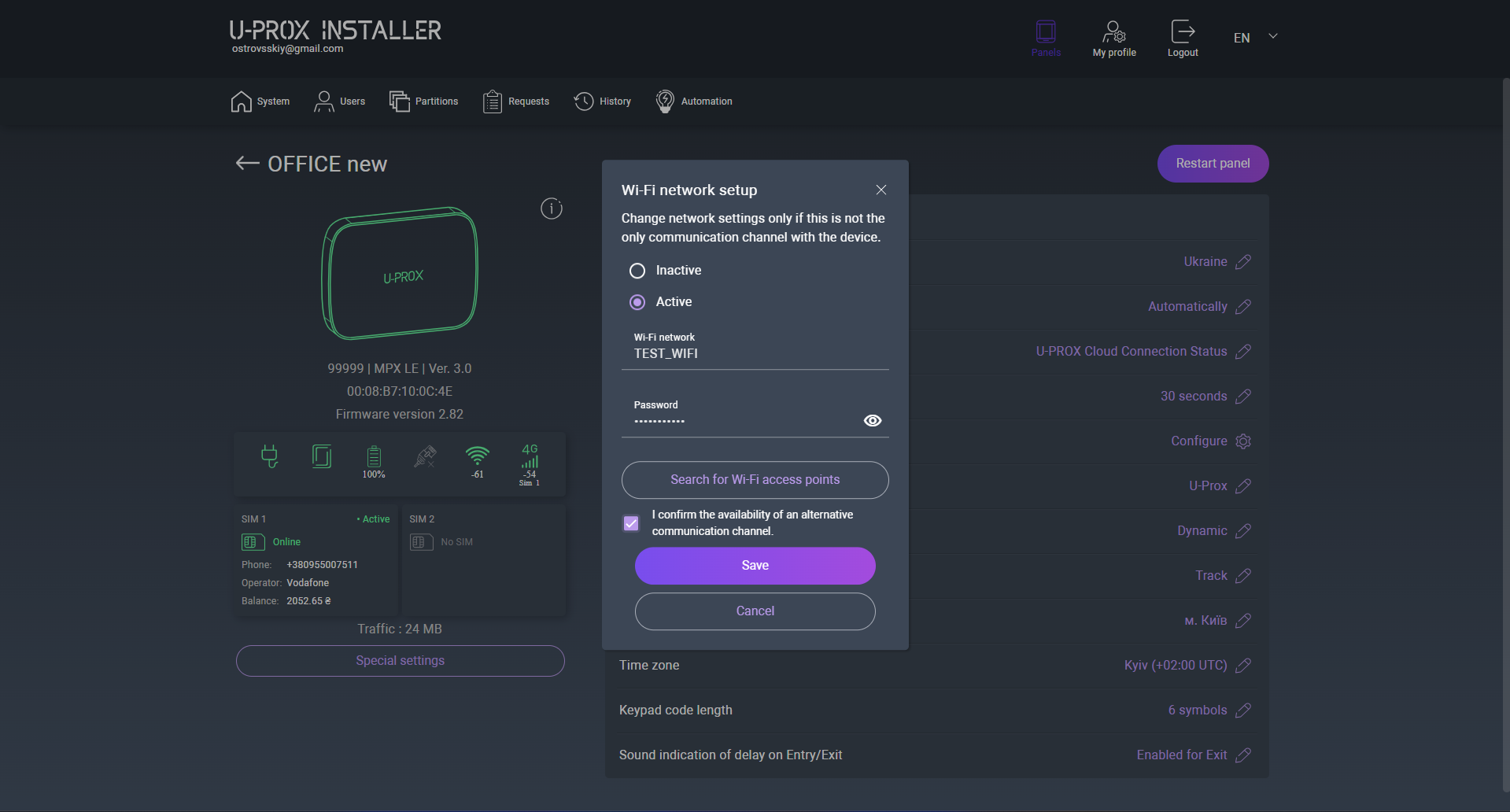

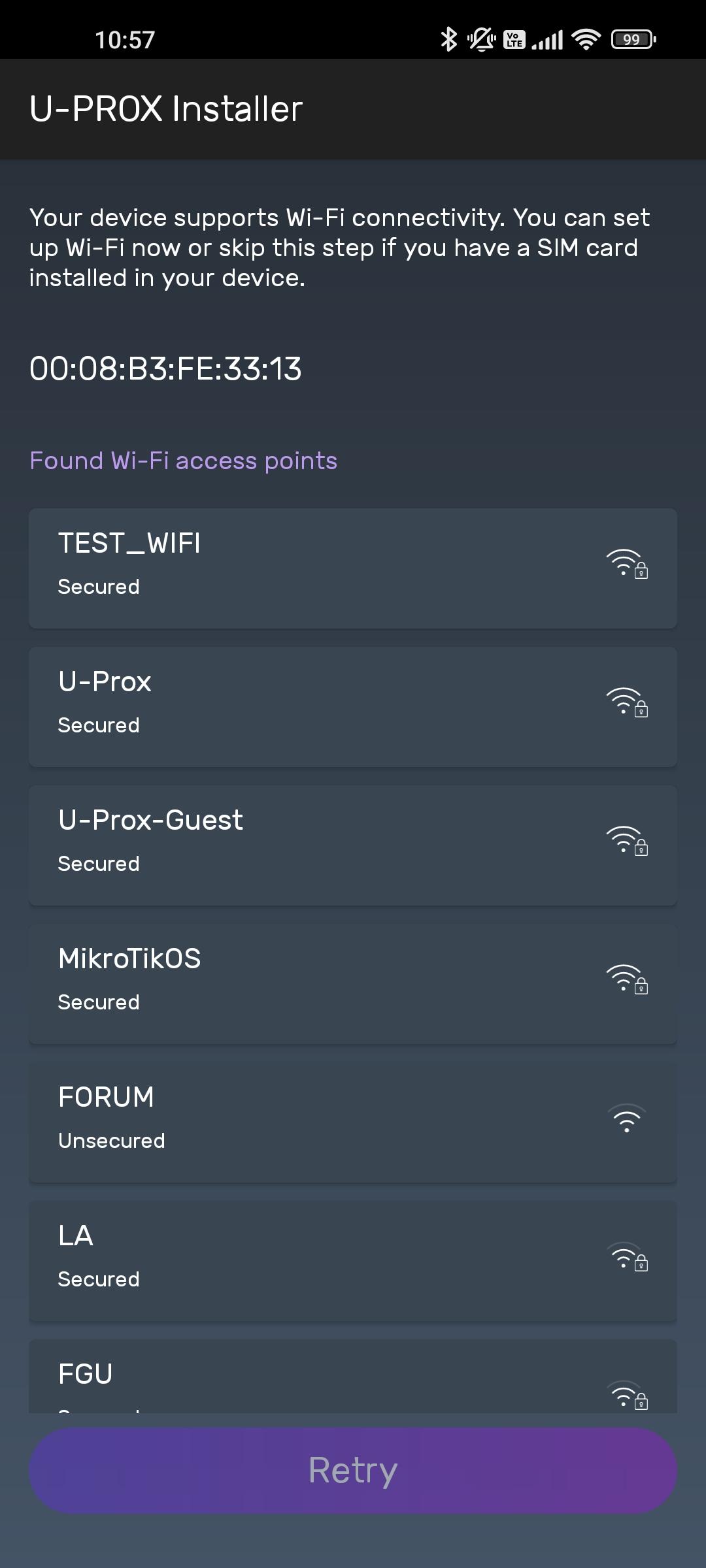

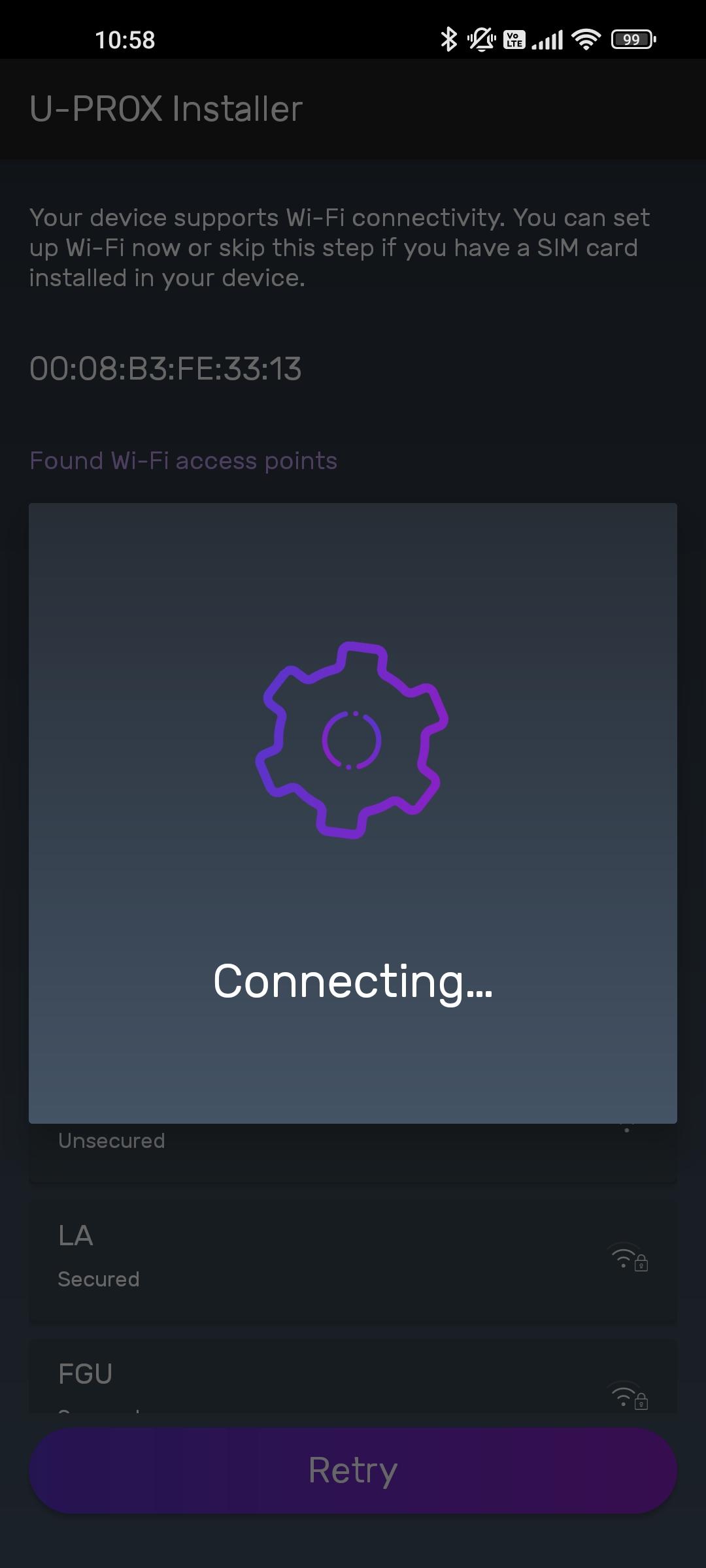

• After pressing the “Configure Wi-Fi” button, the device will scan for Wi-Fi networks

ATTENTION: THE DEVICE OPERATES ONLY WITH WI-FI 2.4 GHz. OTHER WI-FI TYPES ARE NOT SUPPORTED AND WILL NOT BE DISPLAYED DURING SCANNING.

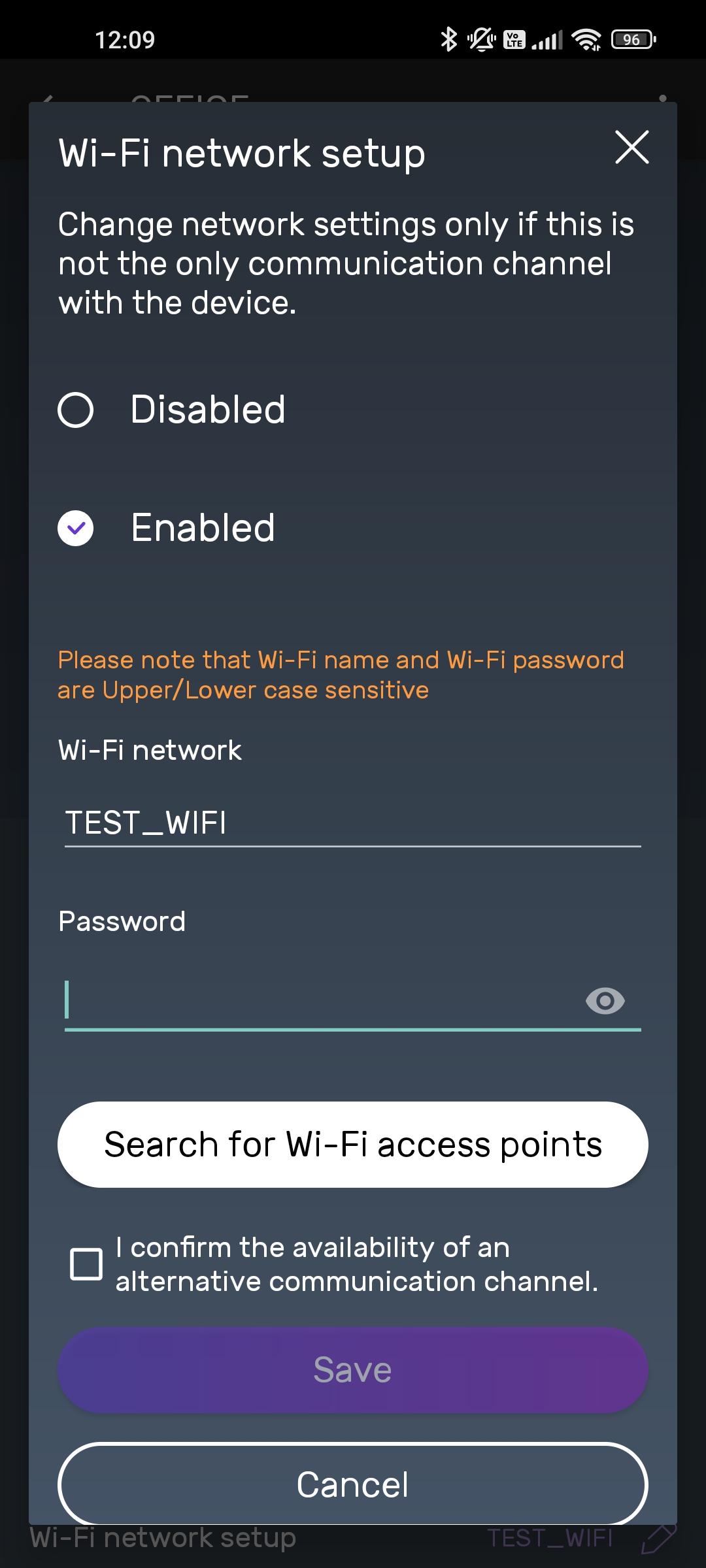

• Select the network to which you want to connect from the list and enter the password

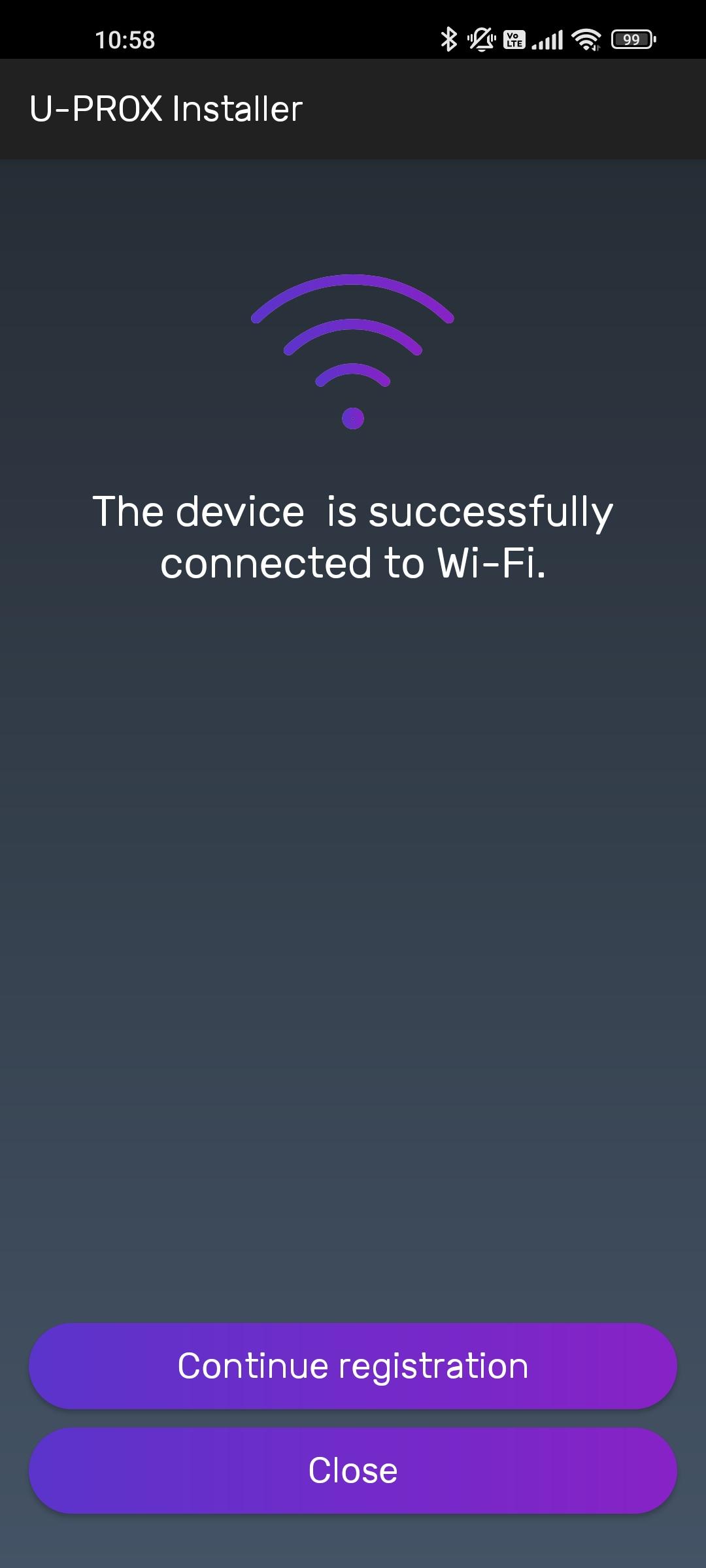

• The connection to the Wi-Fi network will be established and the process of adding the device to U-PROX Cloud will continue

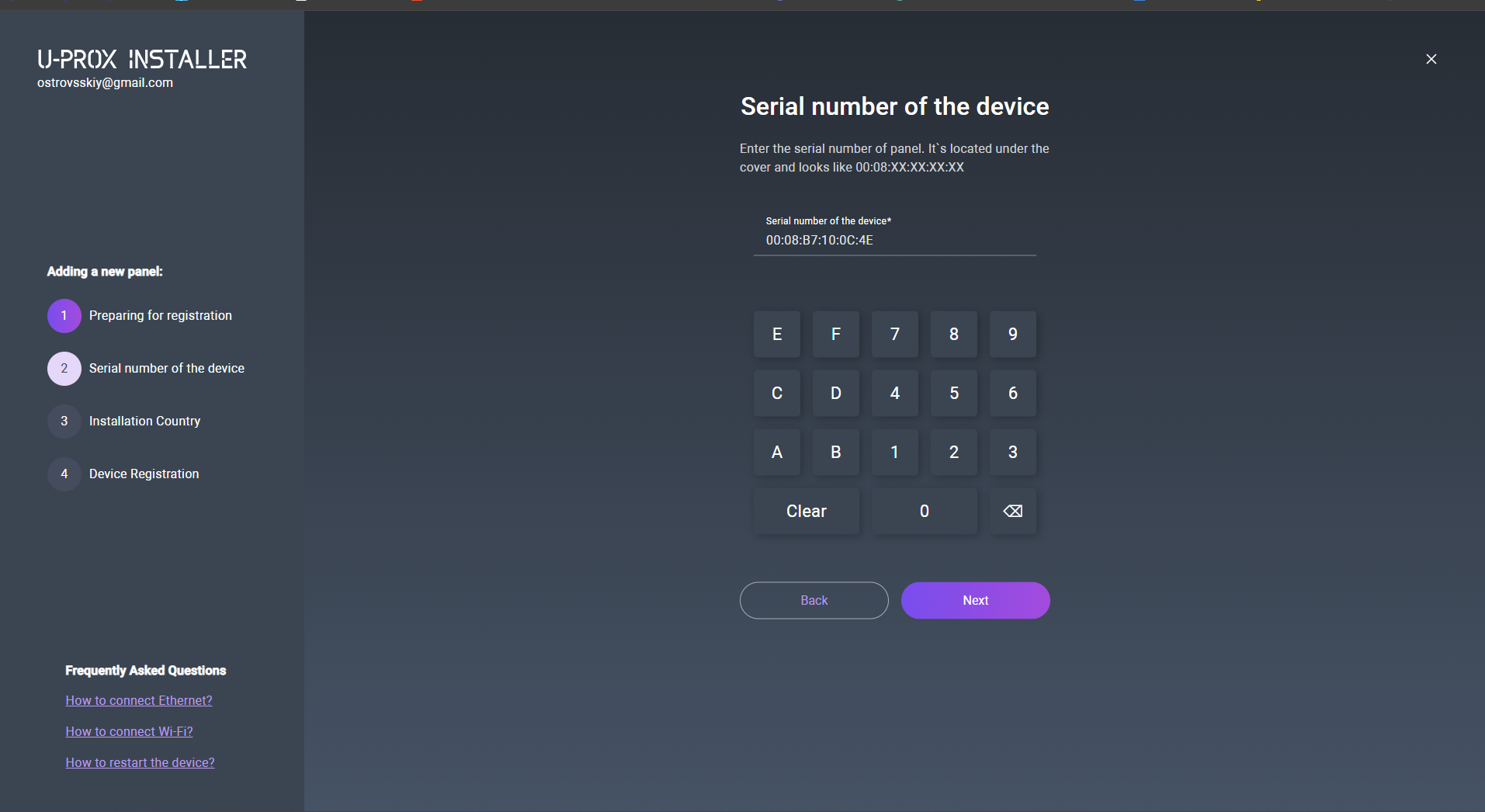

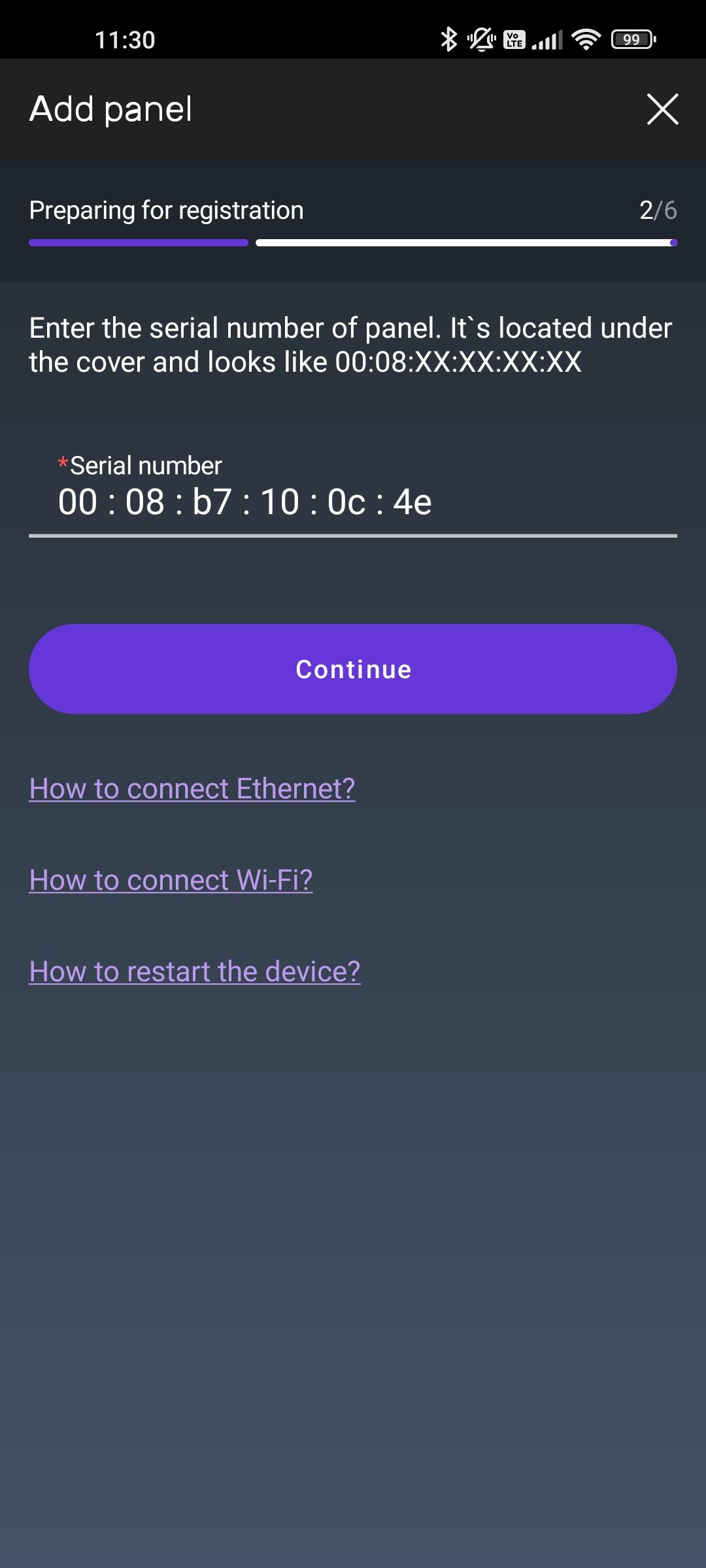

4. When adding a device from the U-PROX Installer WEB web portal, you must enter the serial number of the security control panel. In the U-PROX Installer mobile application, press the “Add by serial number” button for this purpose.

5. The device will be added to the cloud account

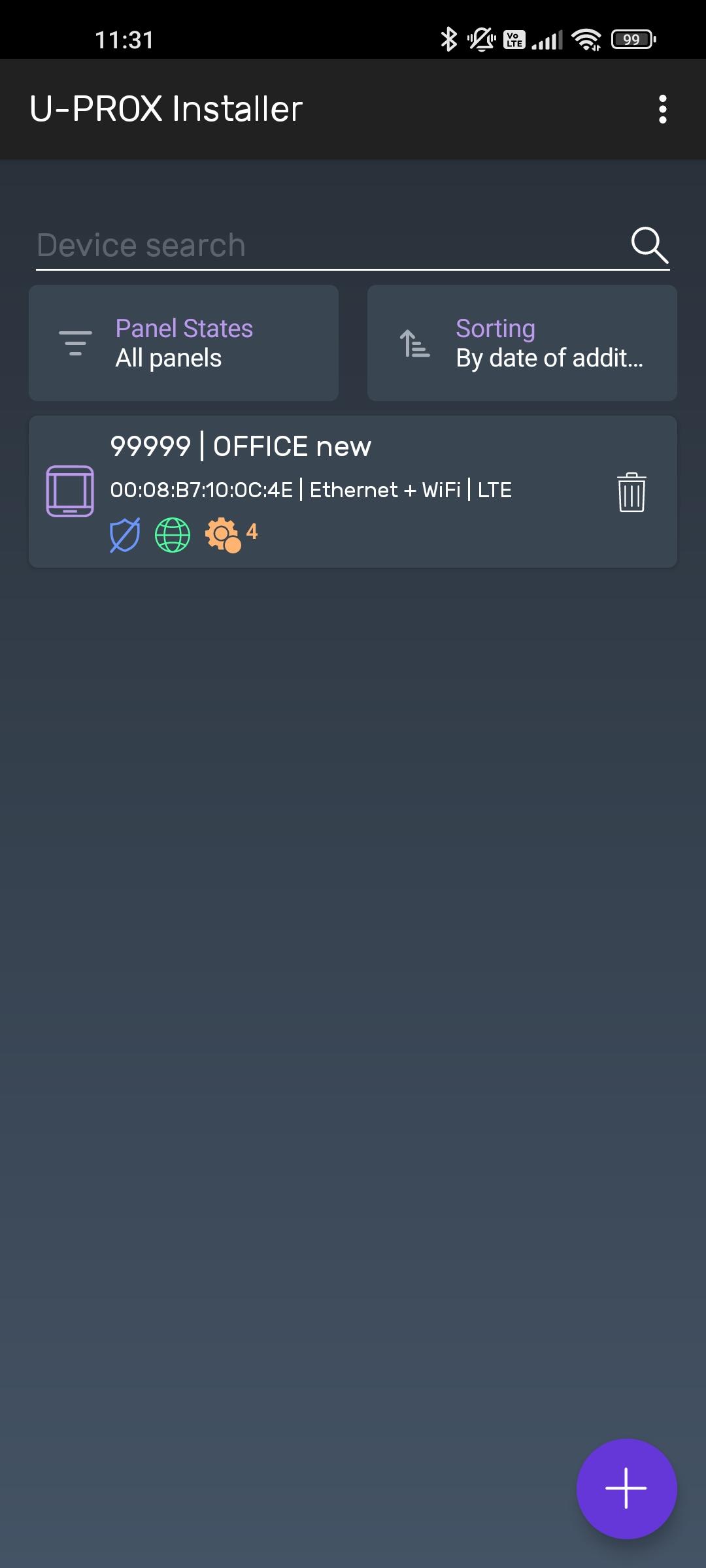

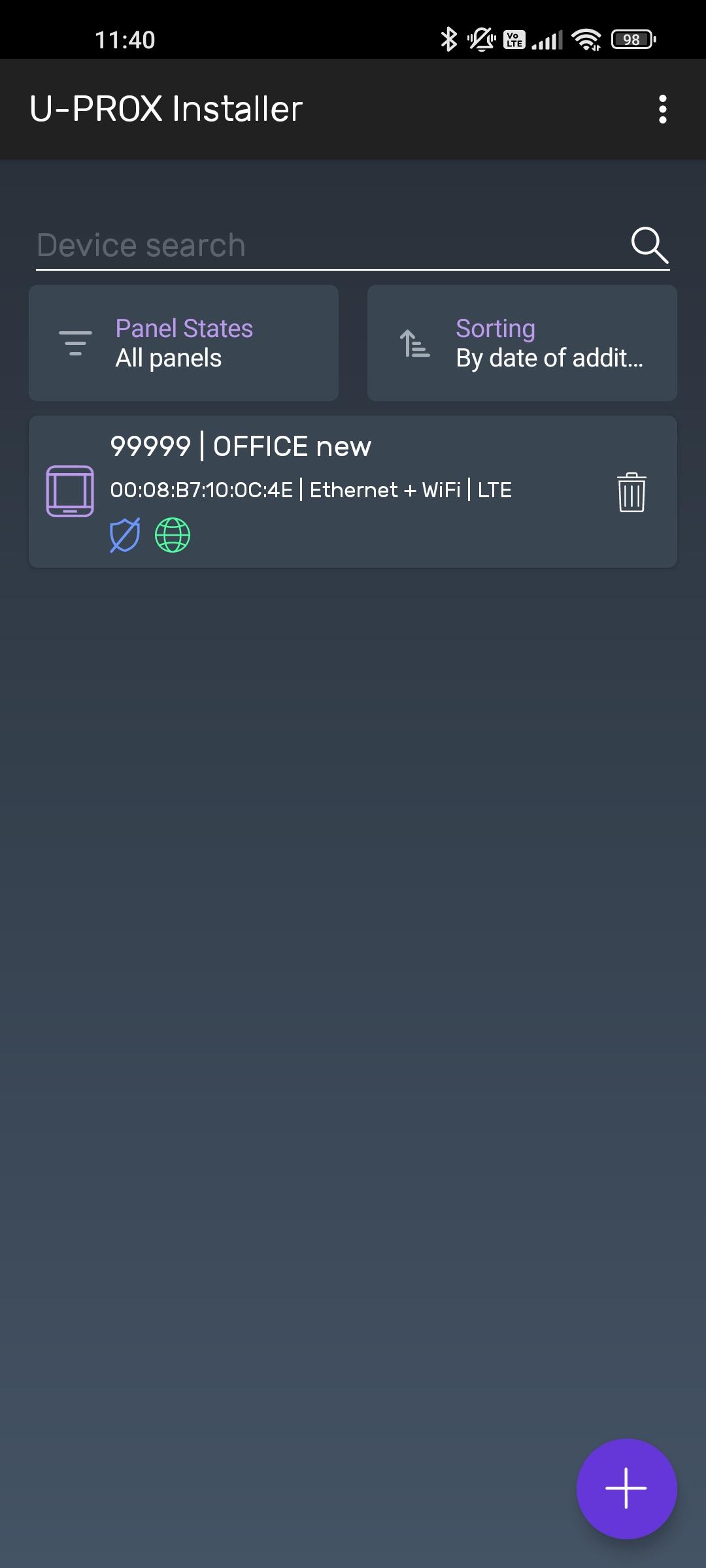

6. The system will navigate to the device list

AFTER SUCCESSFUL ADDING, THE DEVICE IS LINKED TO THE ACCOUNT OF THE SECURITY COMPANY OR THE INDIVIDUAL INSTALLER. TO ADD IT TO ANOTHER ACCOUNT, THE DEVICE MUST BE REMOVED FROM THE PREVIOUS ACCOUNT.

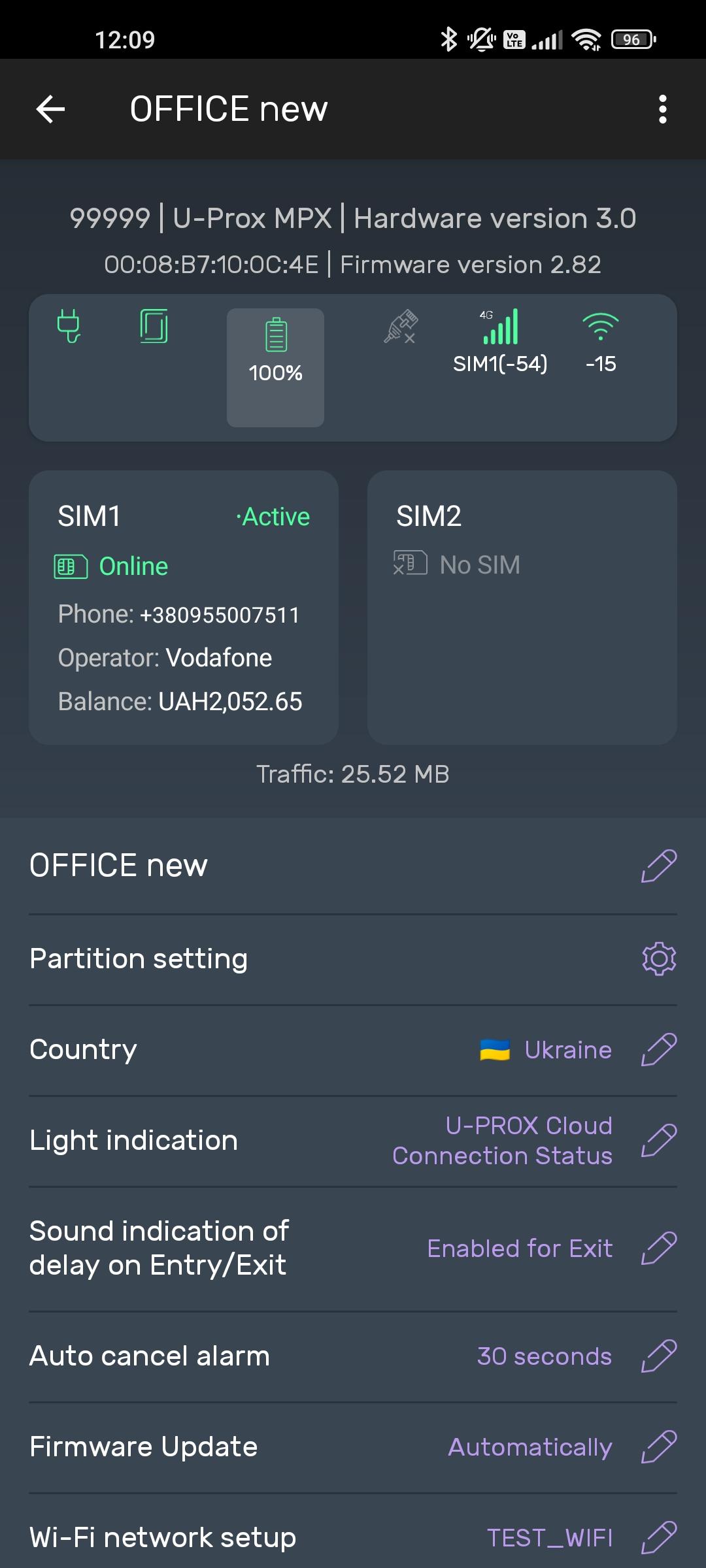

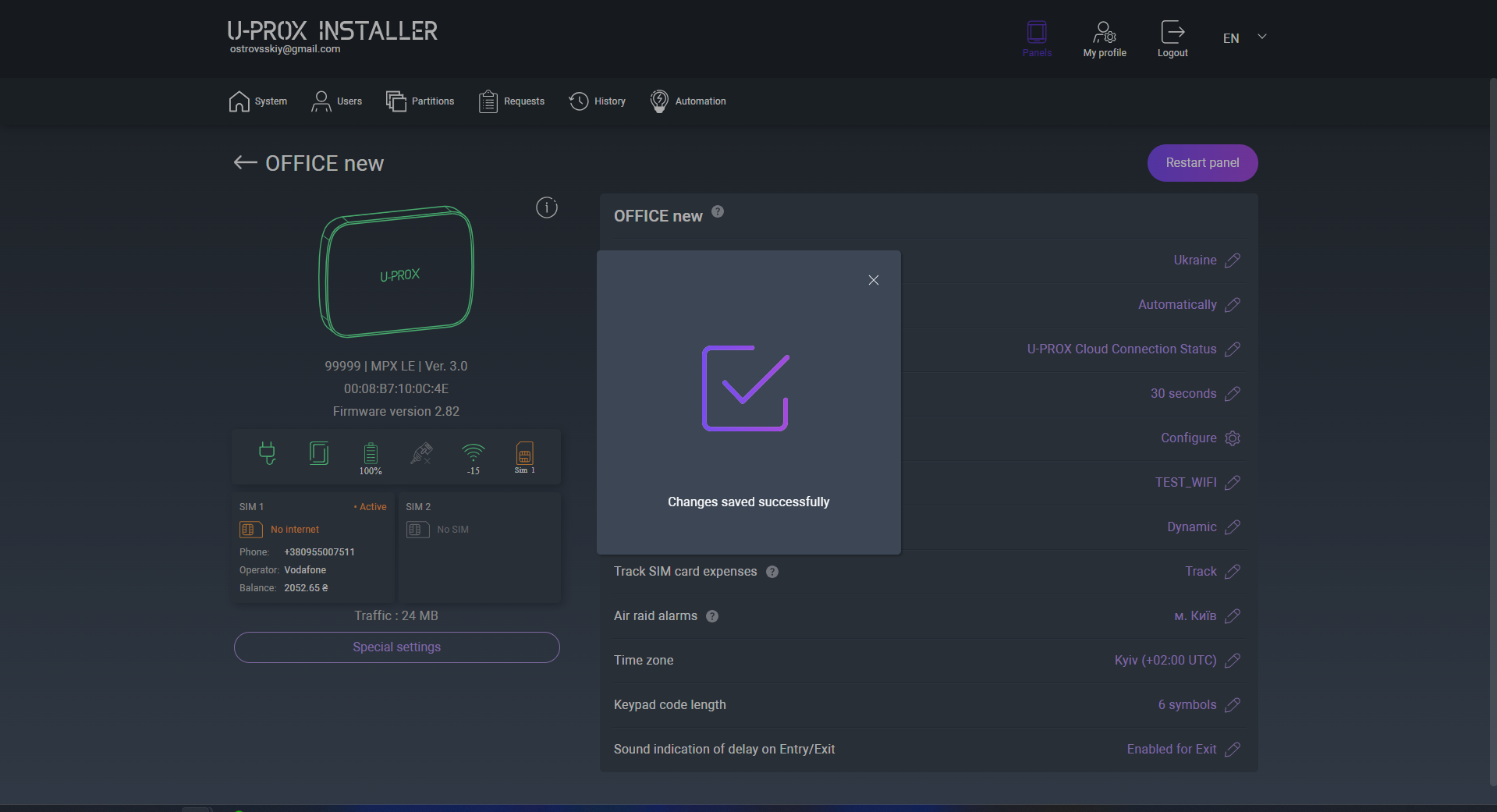

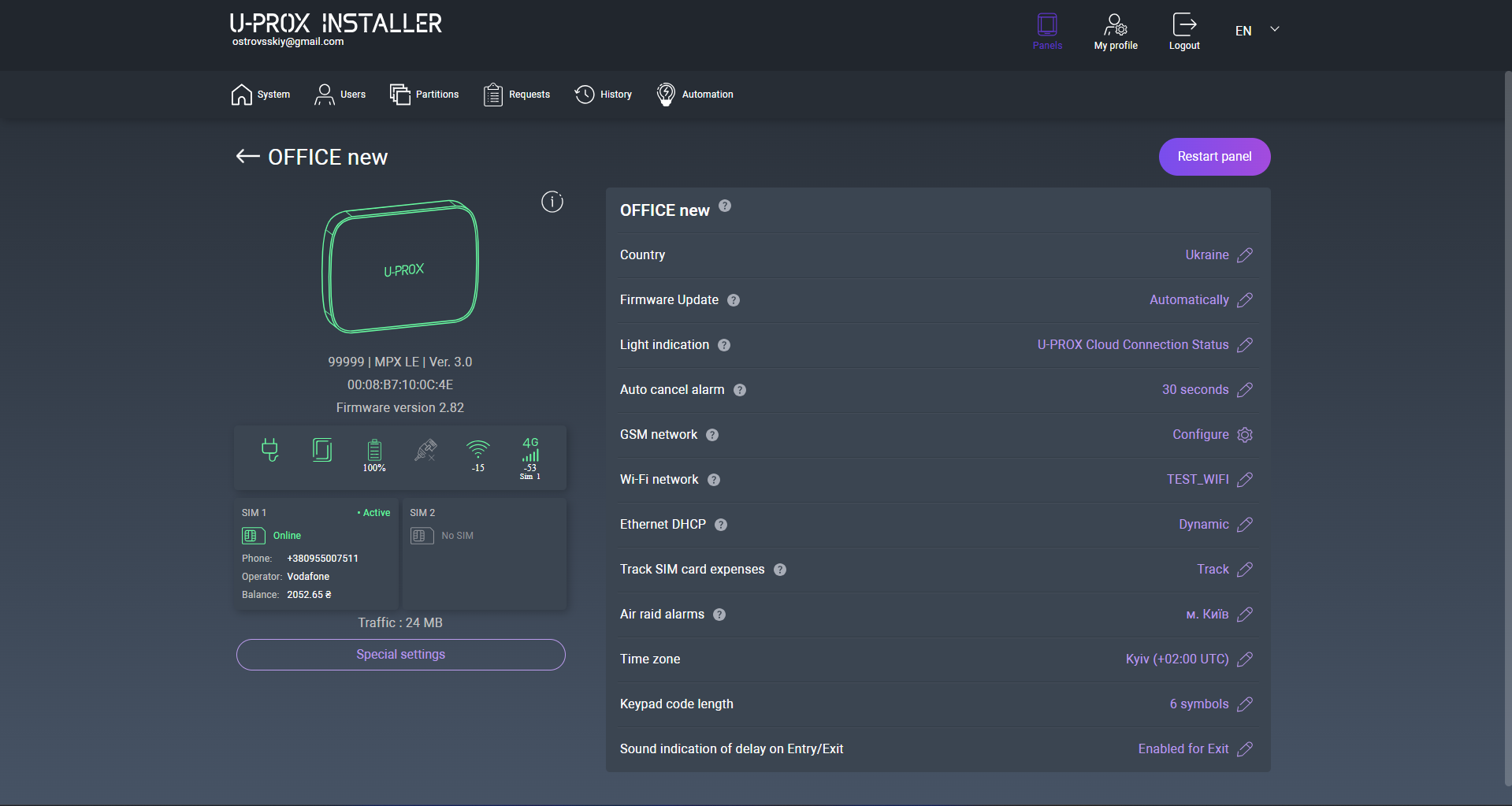

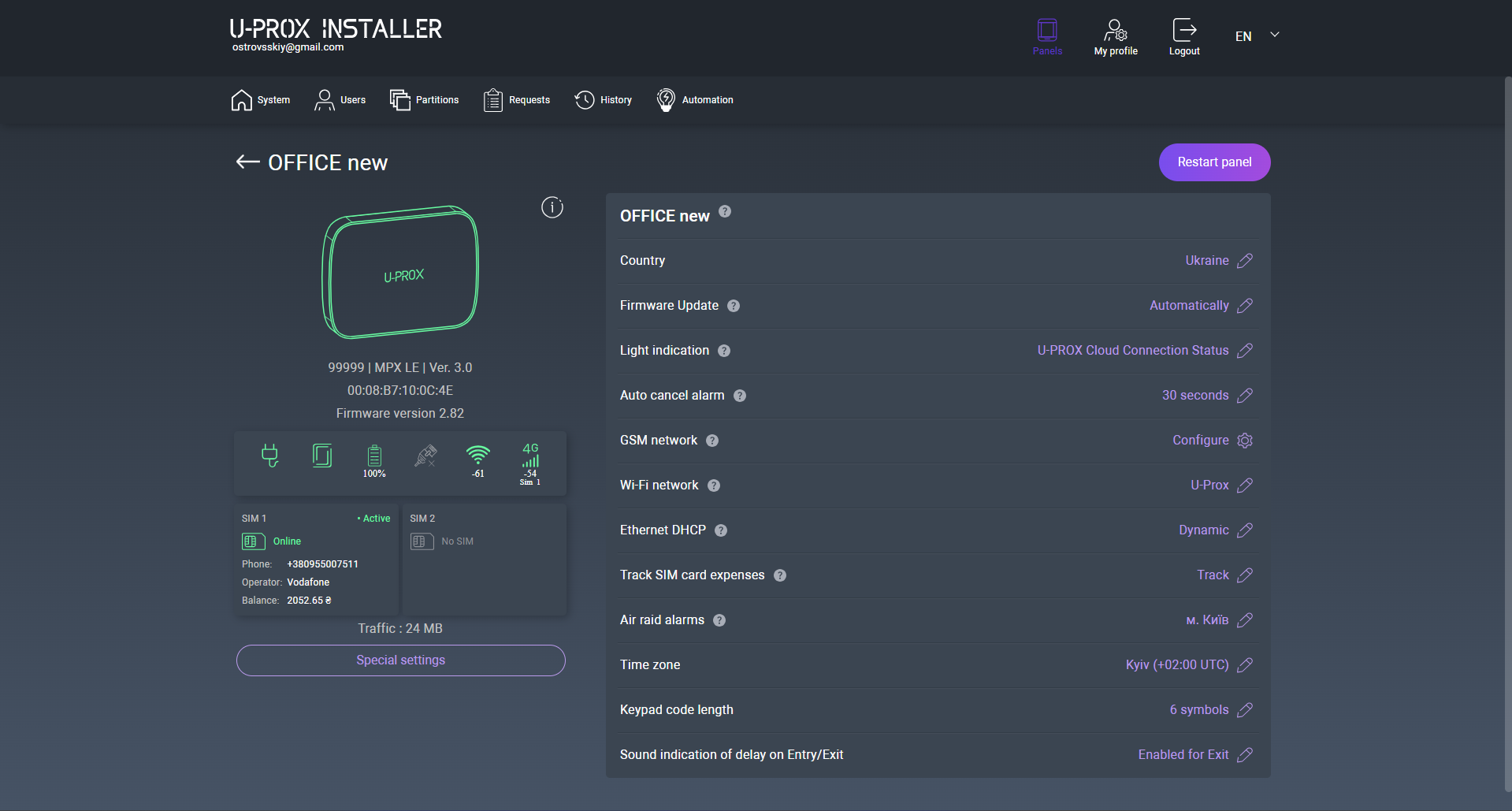

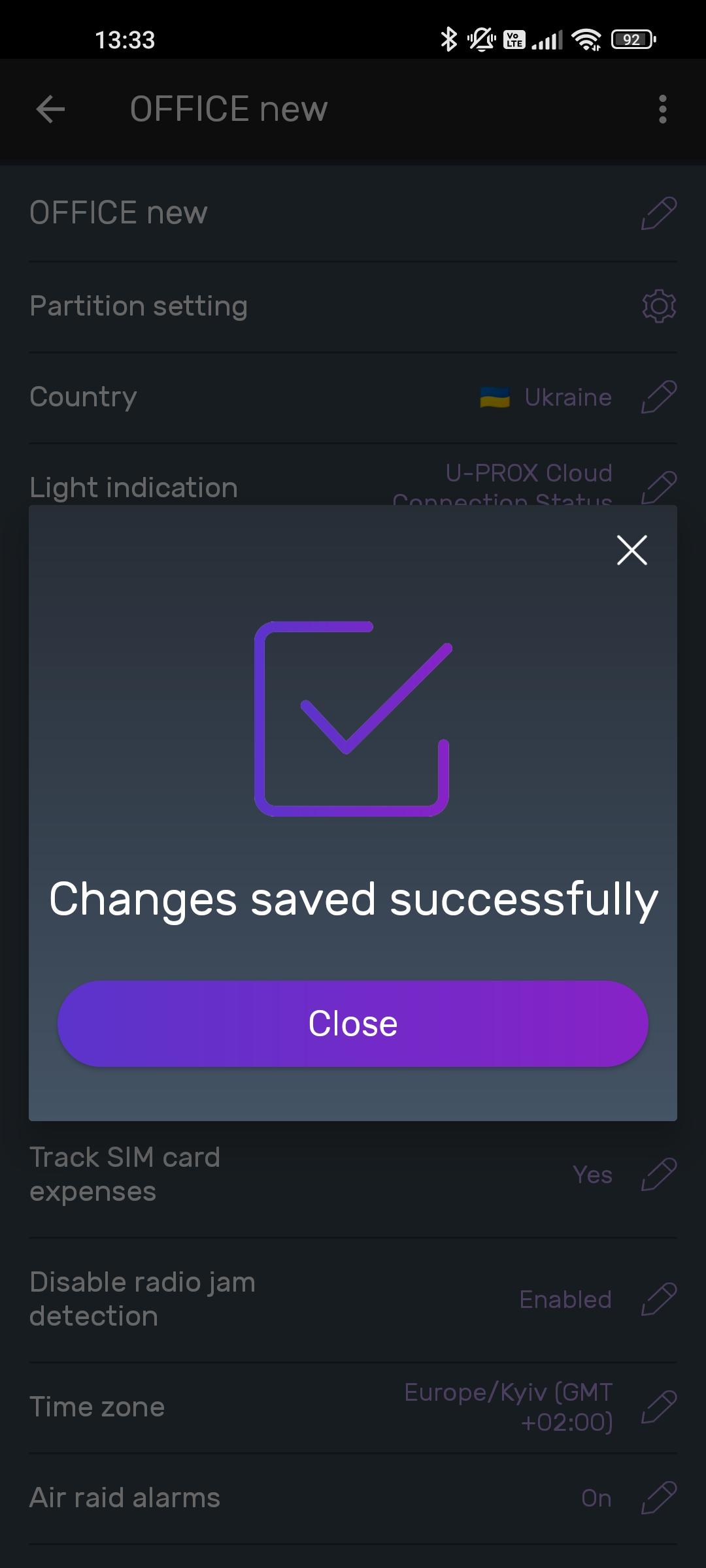

Main settings of the security control panel

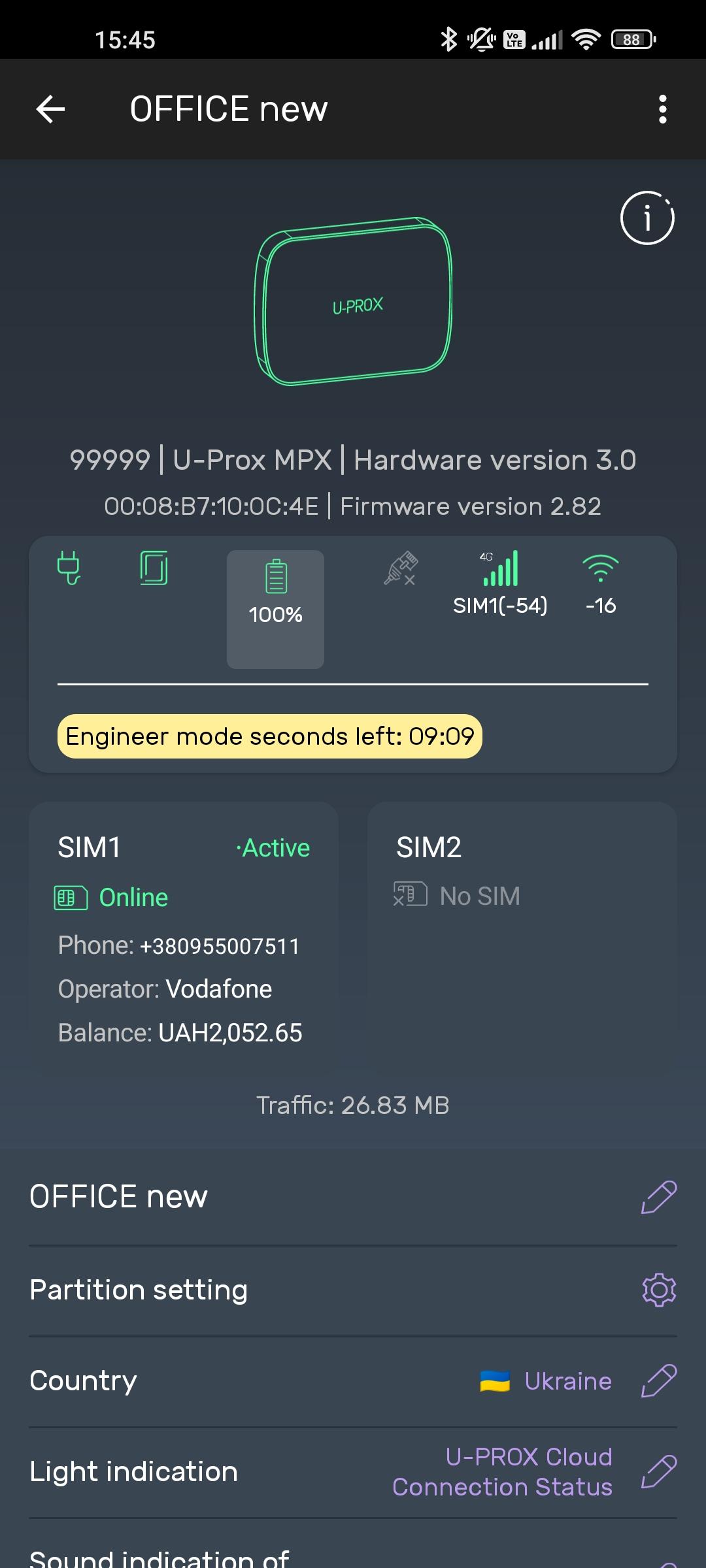

1. Select the device you want to configure from the list.

2. Go to the security control panel settings.

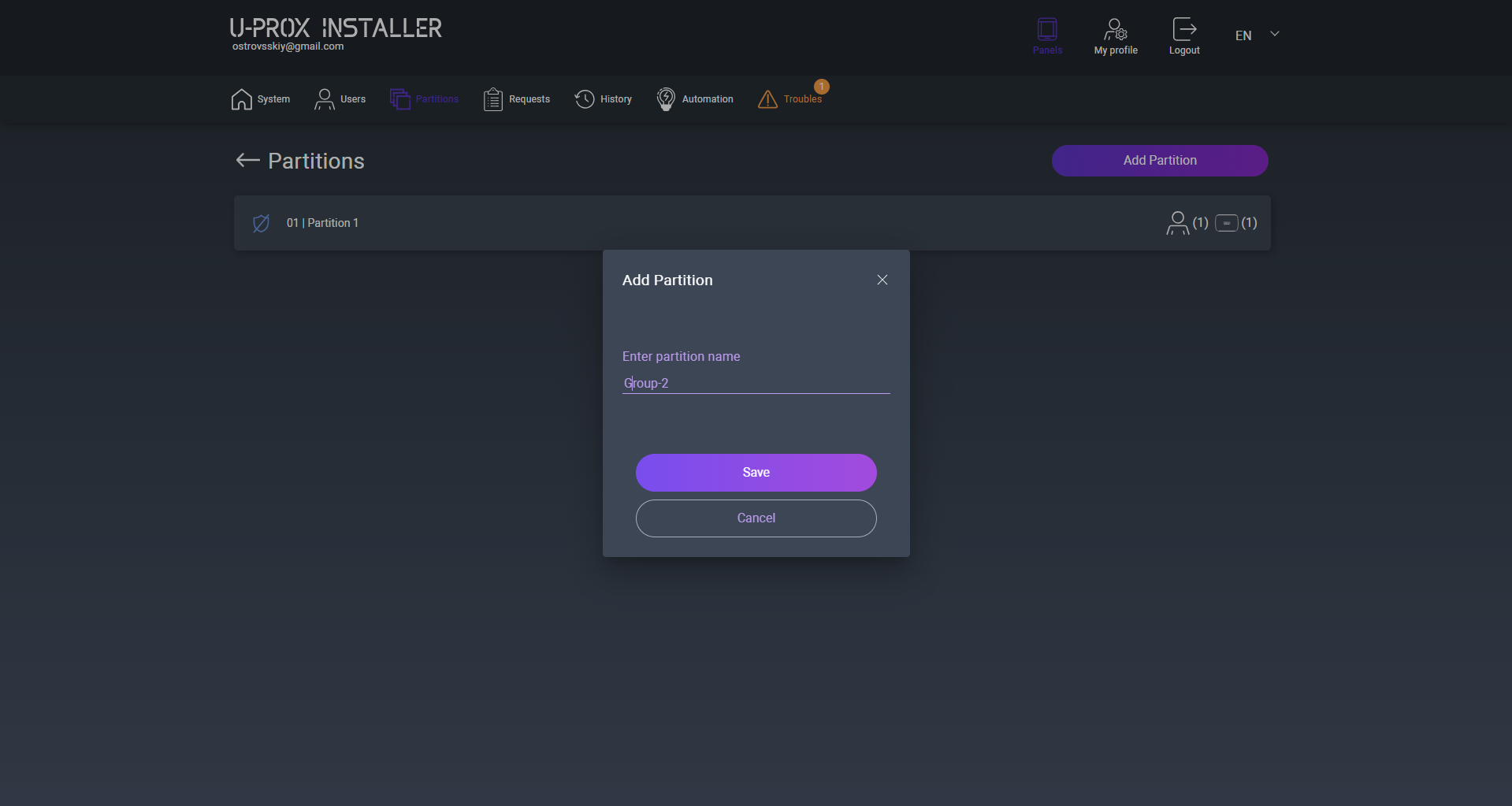

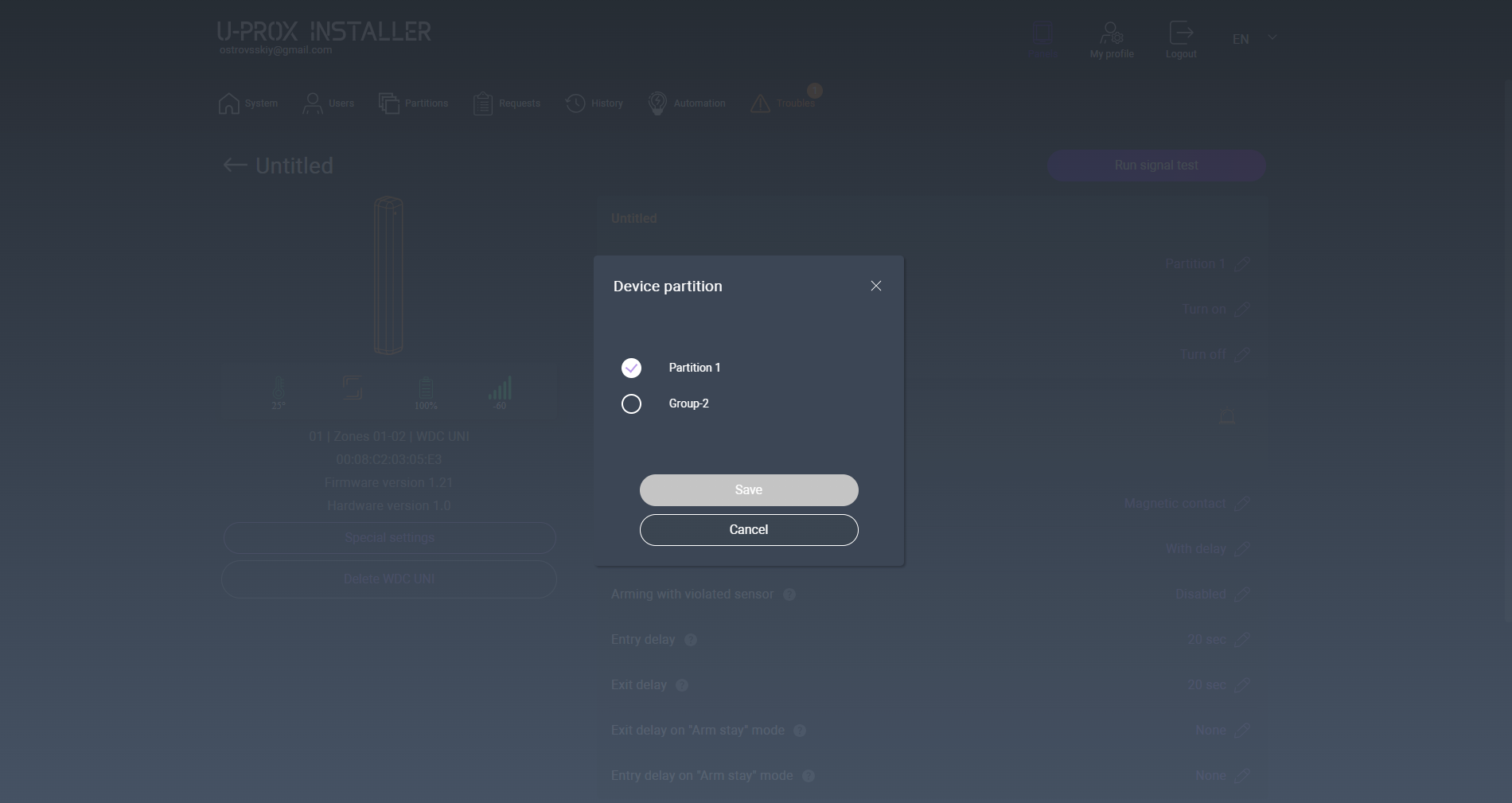

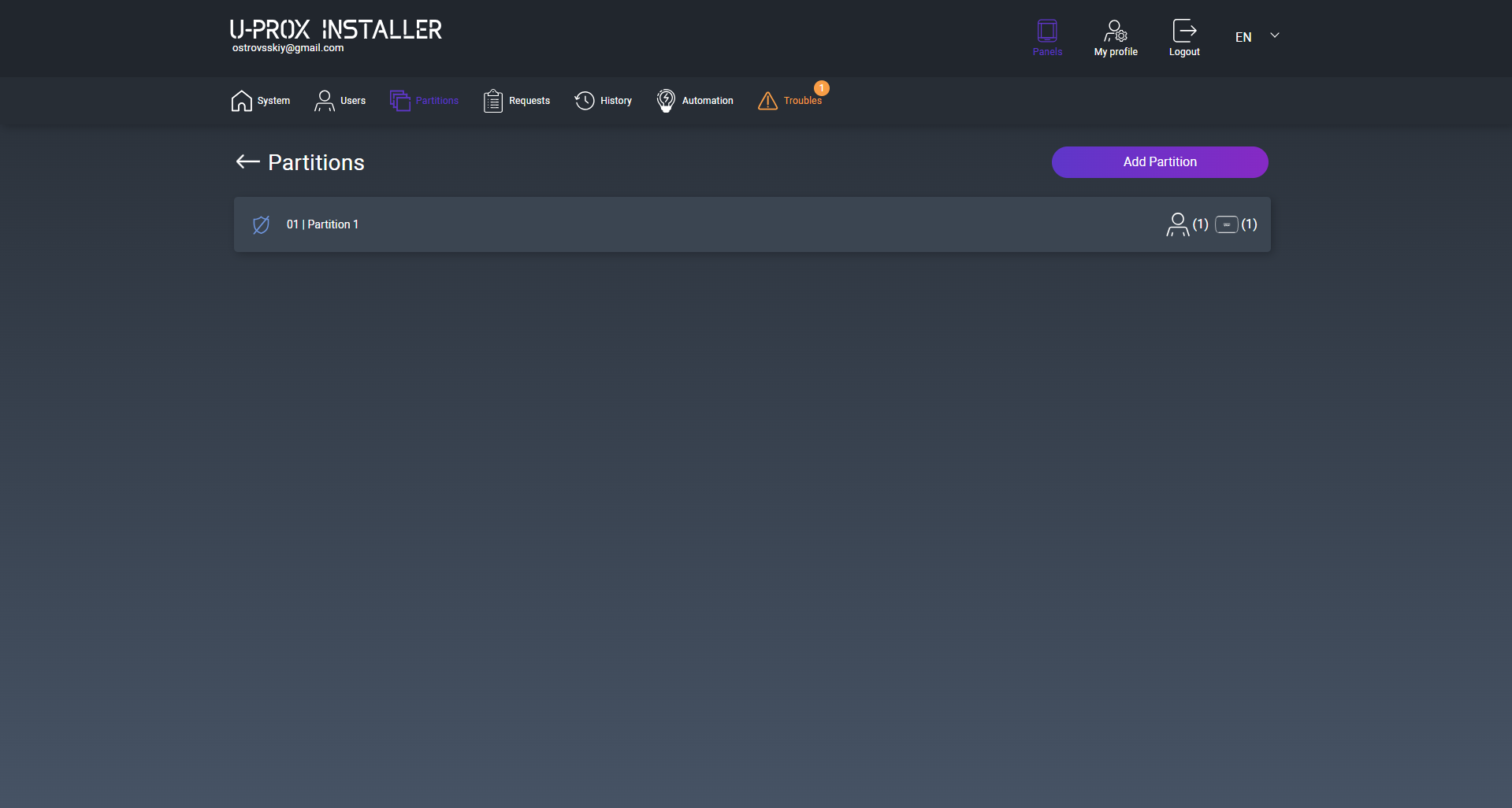

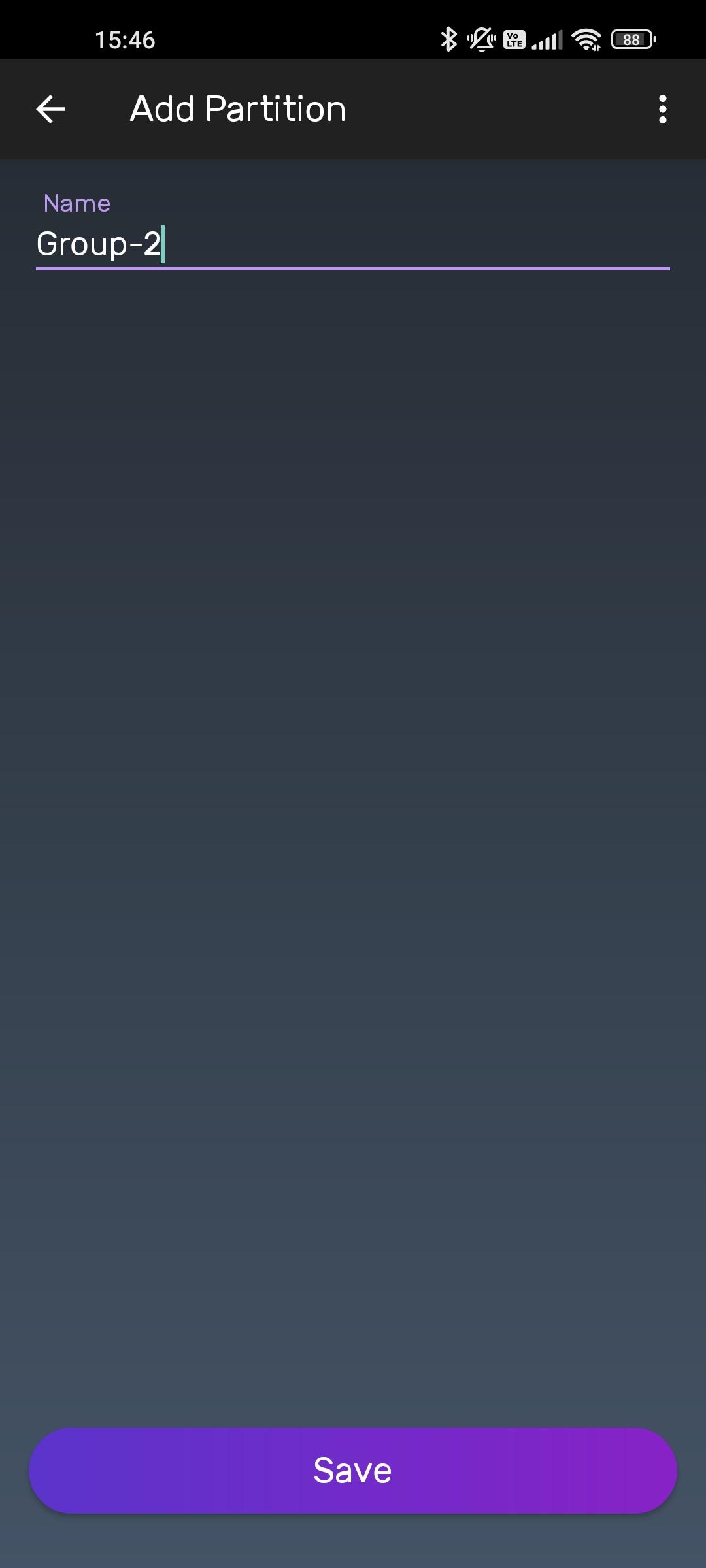

3. “Group settings” – go to the section for managing security groups.

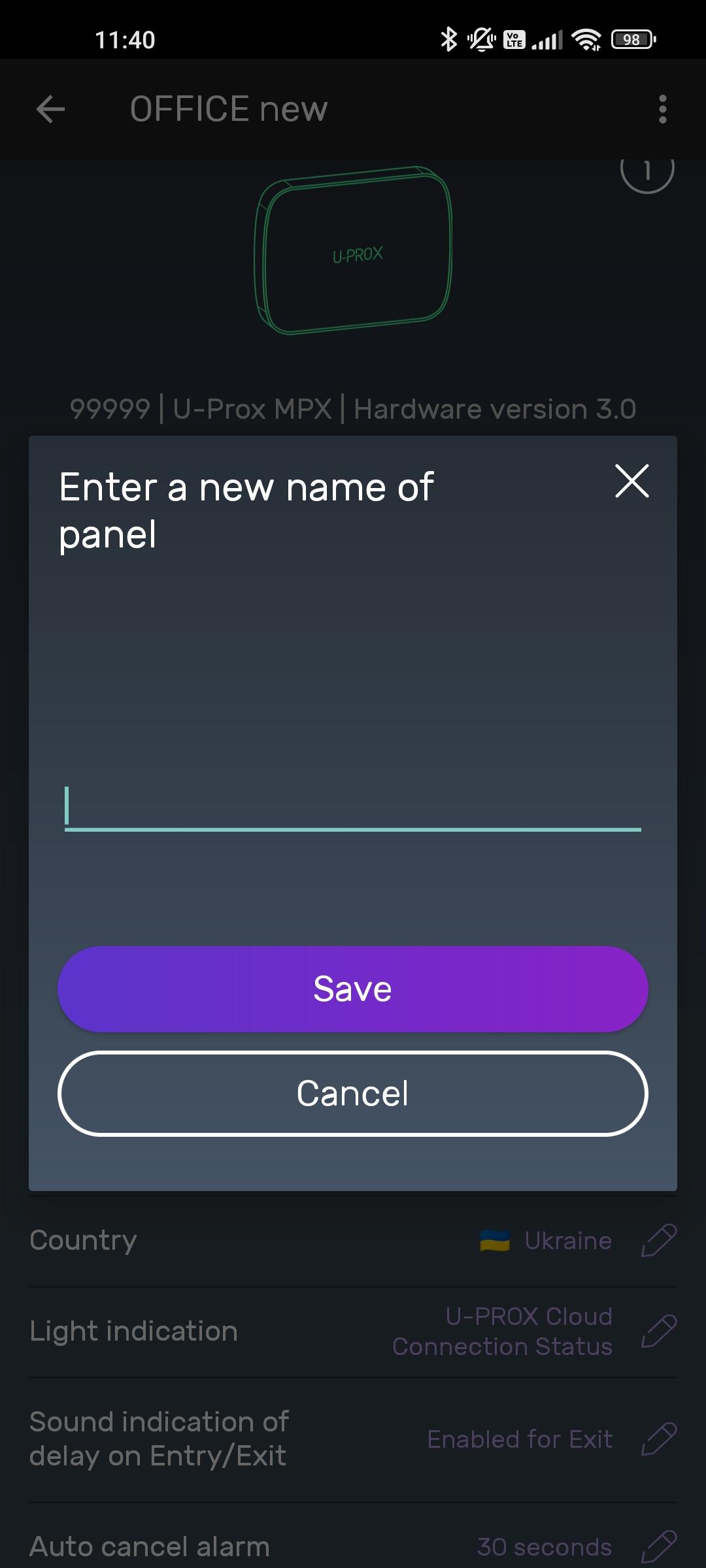

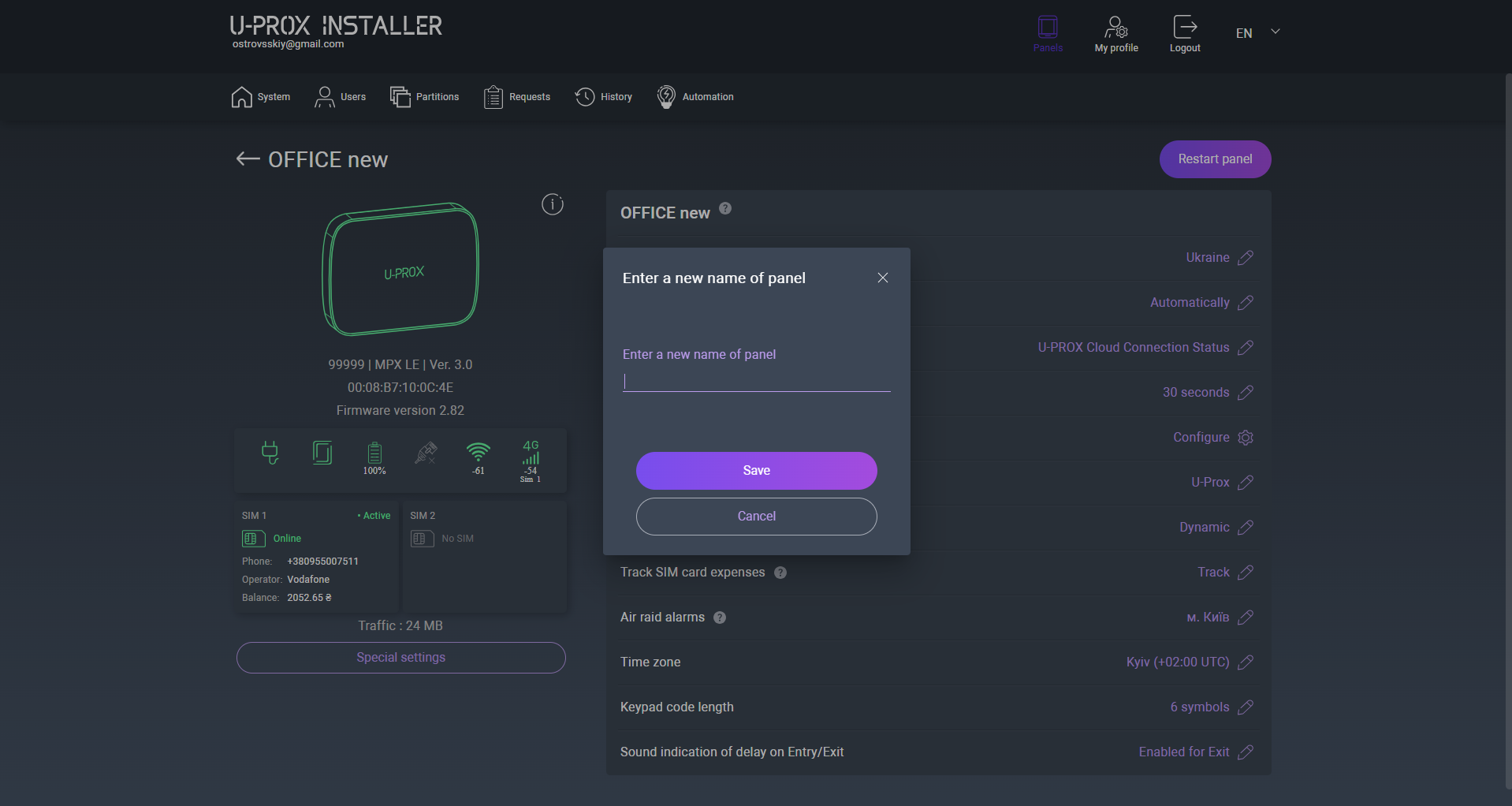

4. “Device name” setting – change the name of the security control panel.

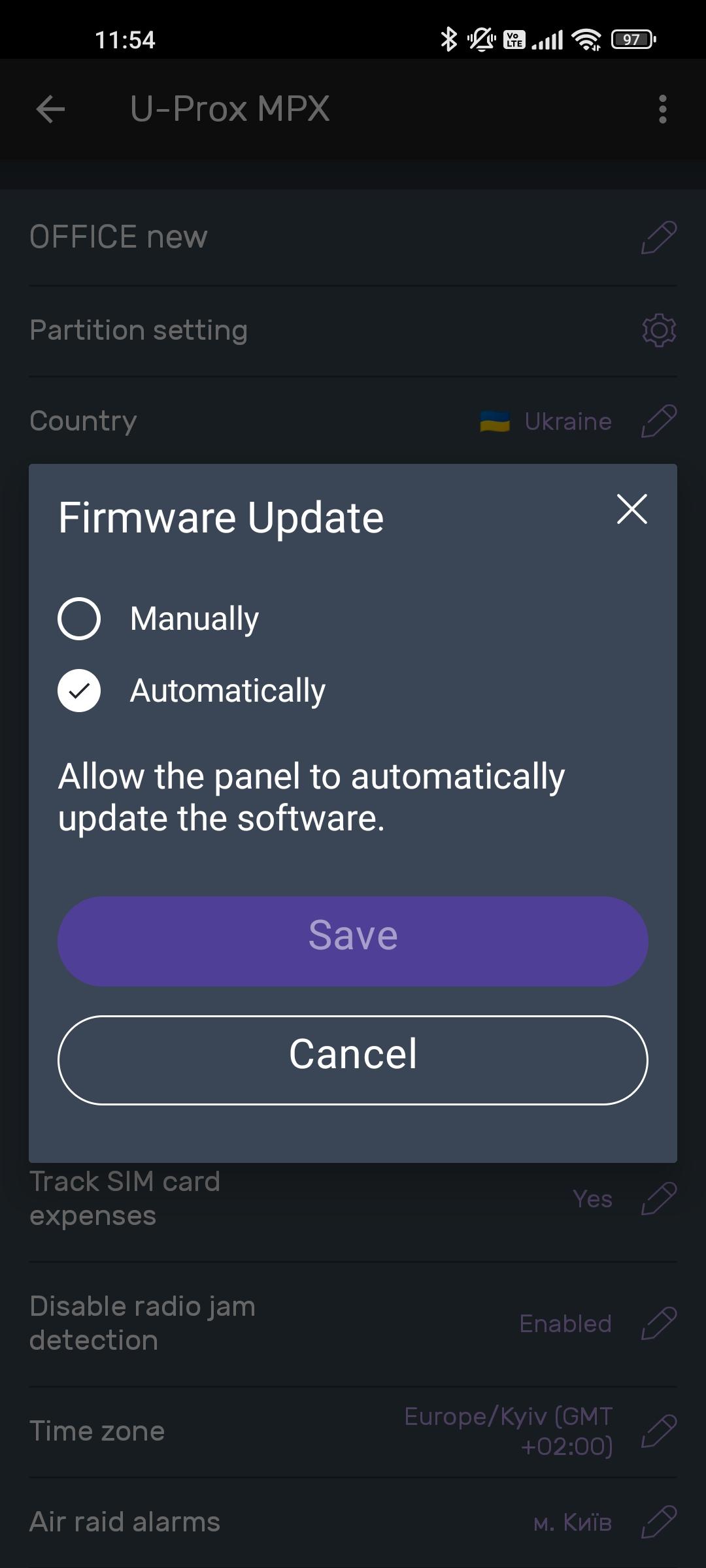

5. “Firmware update” setting – enable or disable automatic firmware updates from the cloud service.

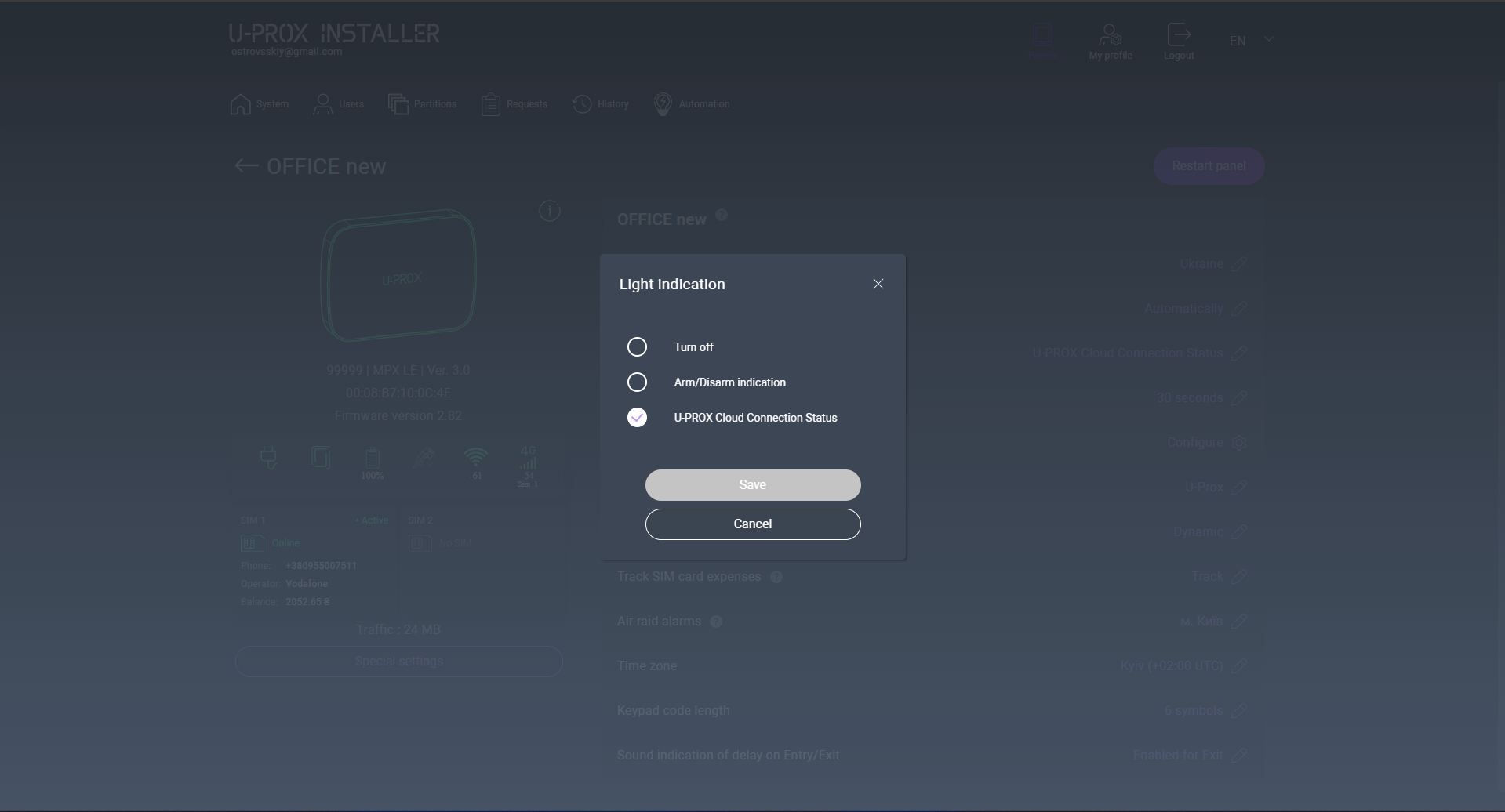

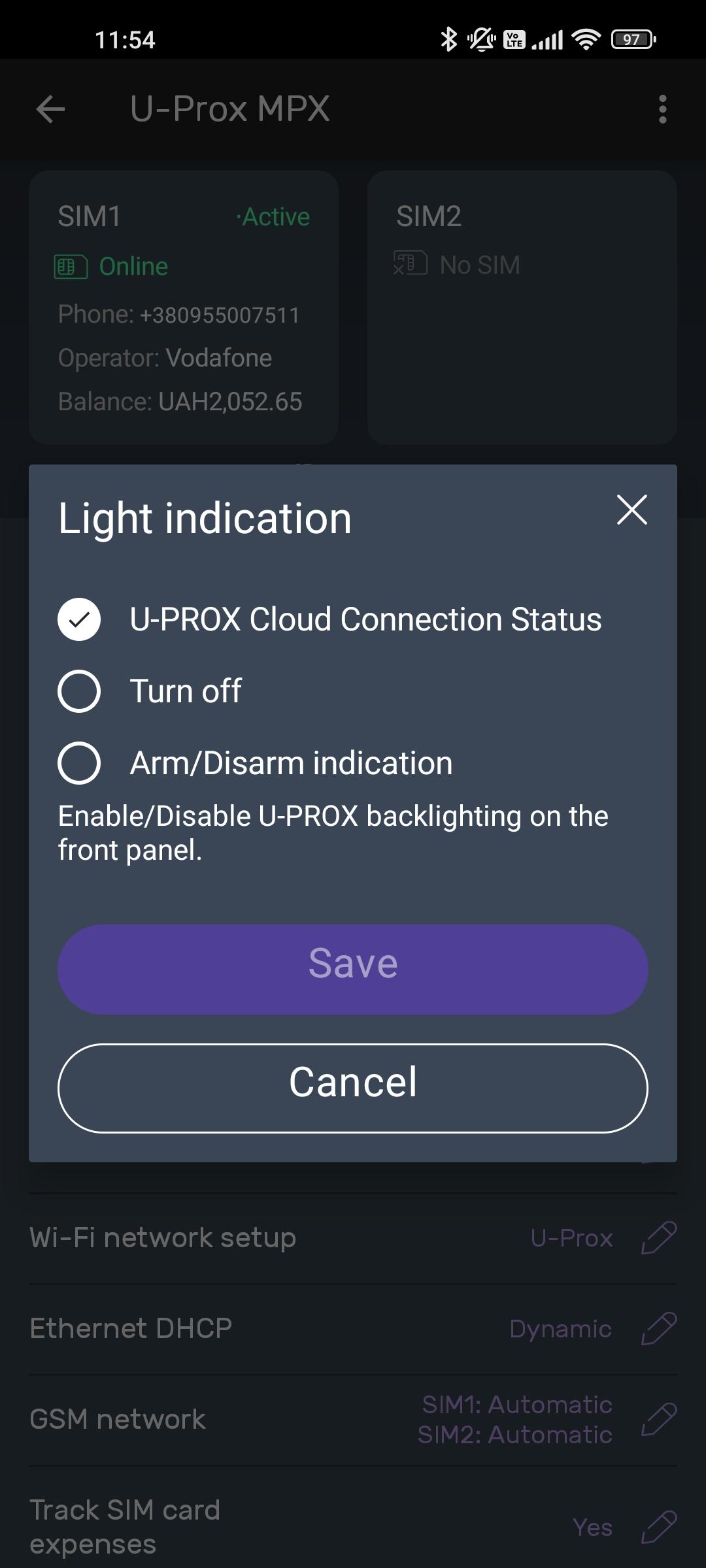

6. “LED indication” setting – enable or disable the indicator on the front panel.

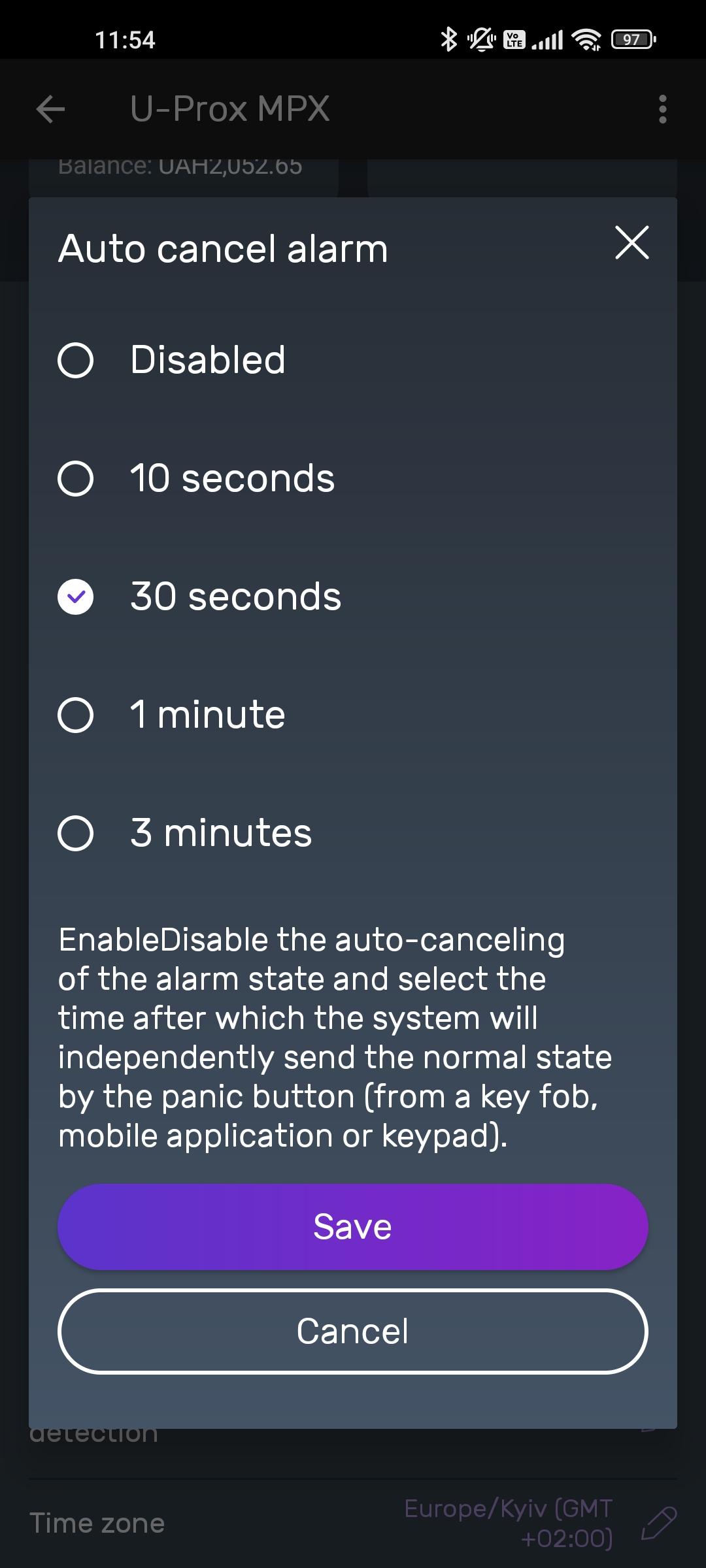

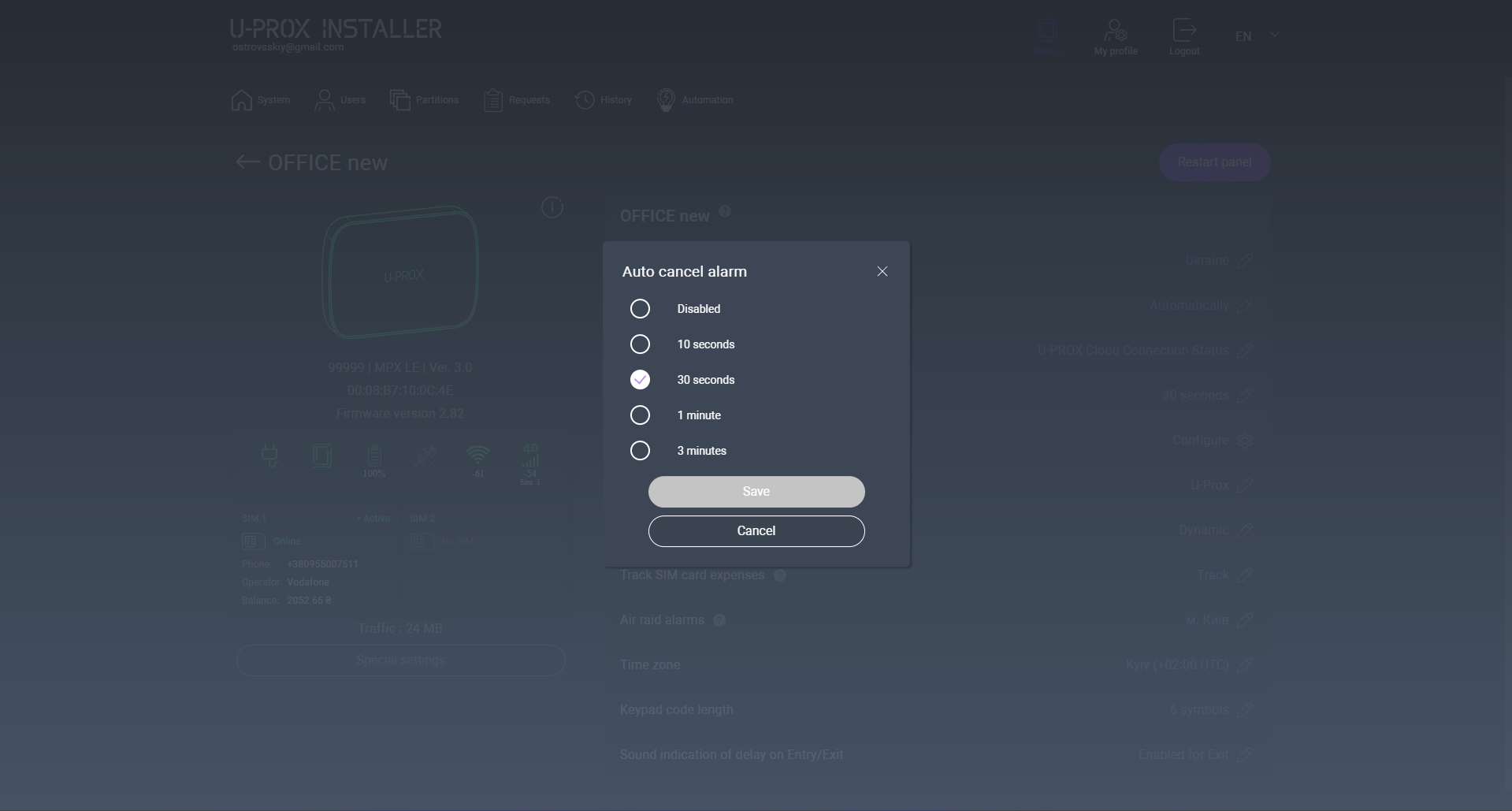

7. “Alarm auto cancel” setting – define whether the alarm is canceled after a specified time, by user action in the application, or after entering a code on the keypad.

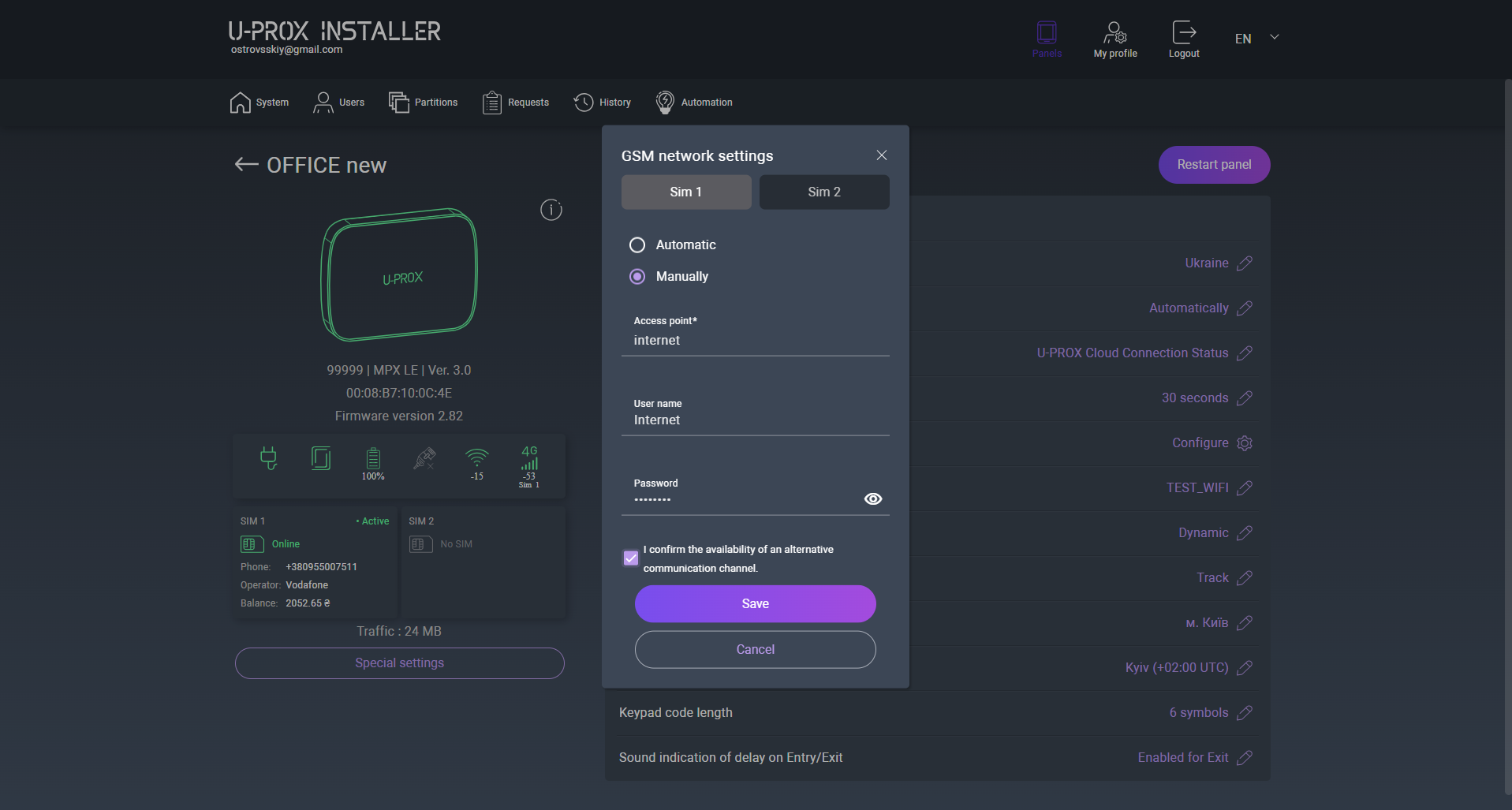

8. “Cellular data network” – configure mobile Internet connection parameters.

9. “Wi-Fi network” – configure connection to the wireless network.

10. “Ethernet” – configure wired Internet connection.

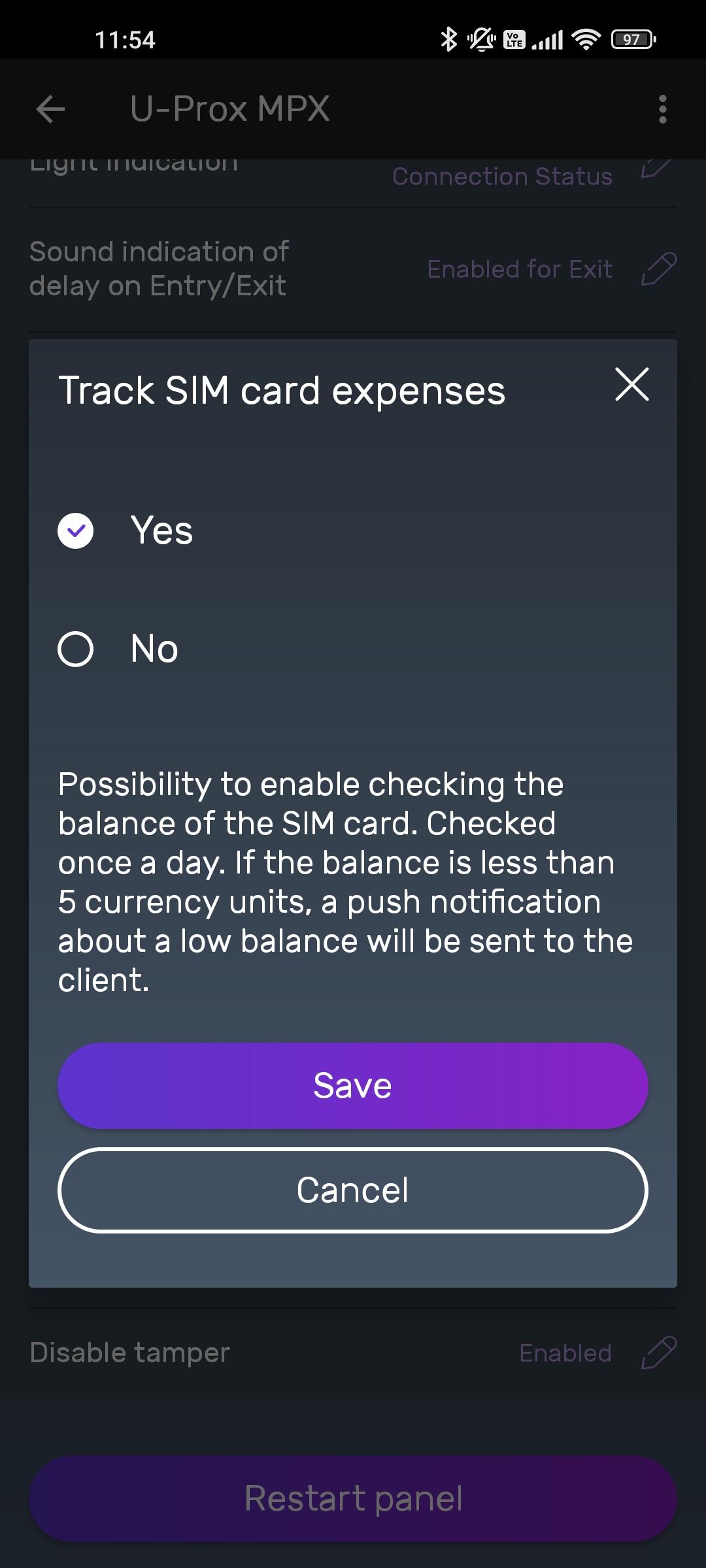

11. “SIM card balance control” – the device periodically requests the remaining mobile Internet balance from the modem.

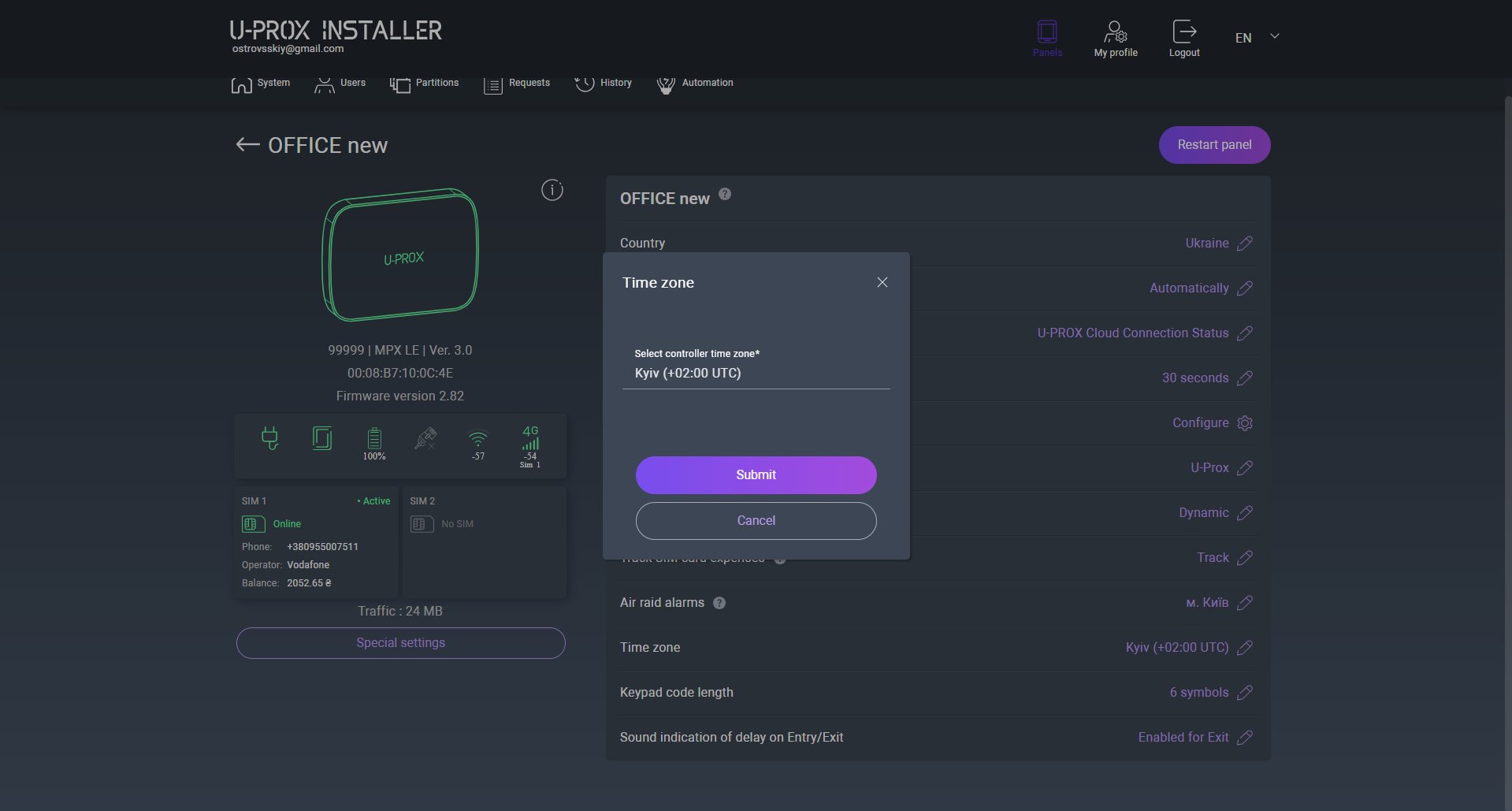

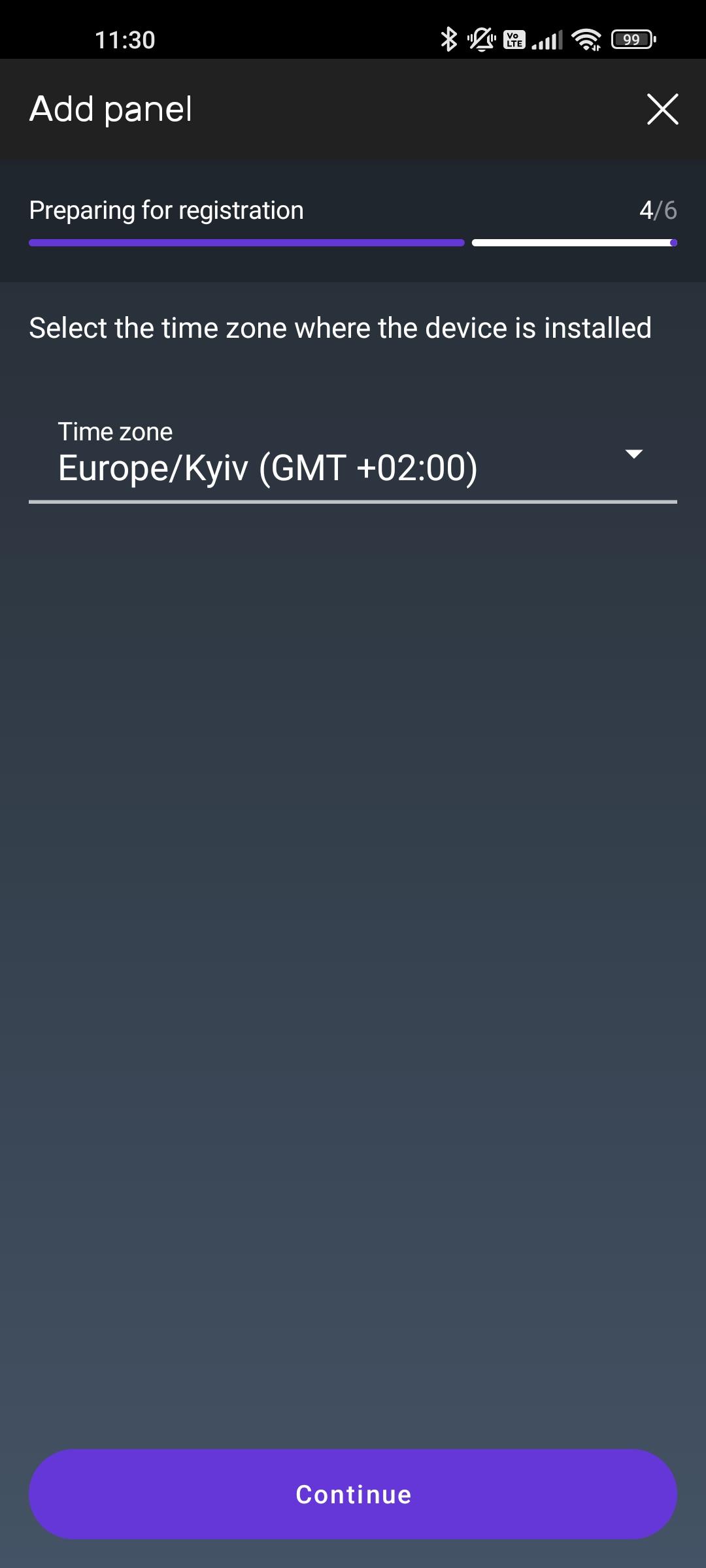

12. “Time zone” – a parameter that defines the offset required to determine local time.

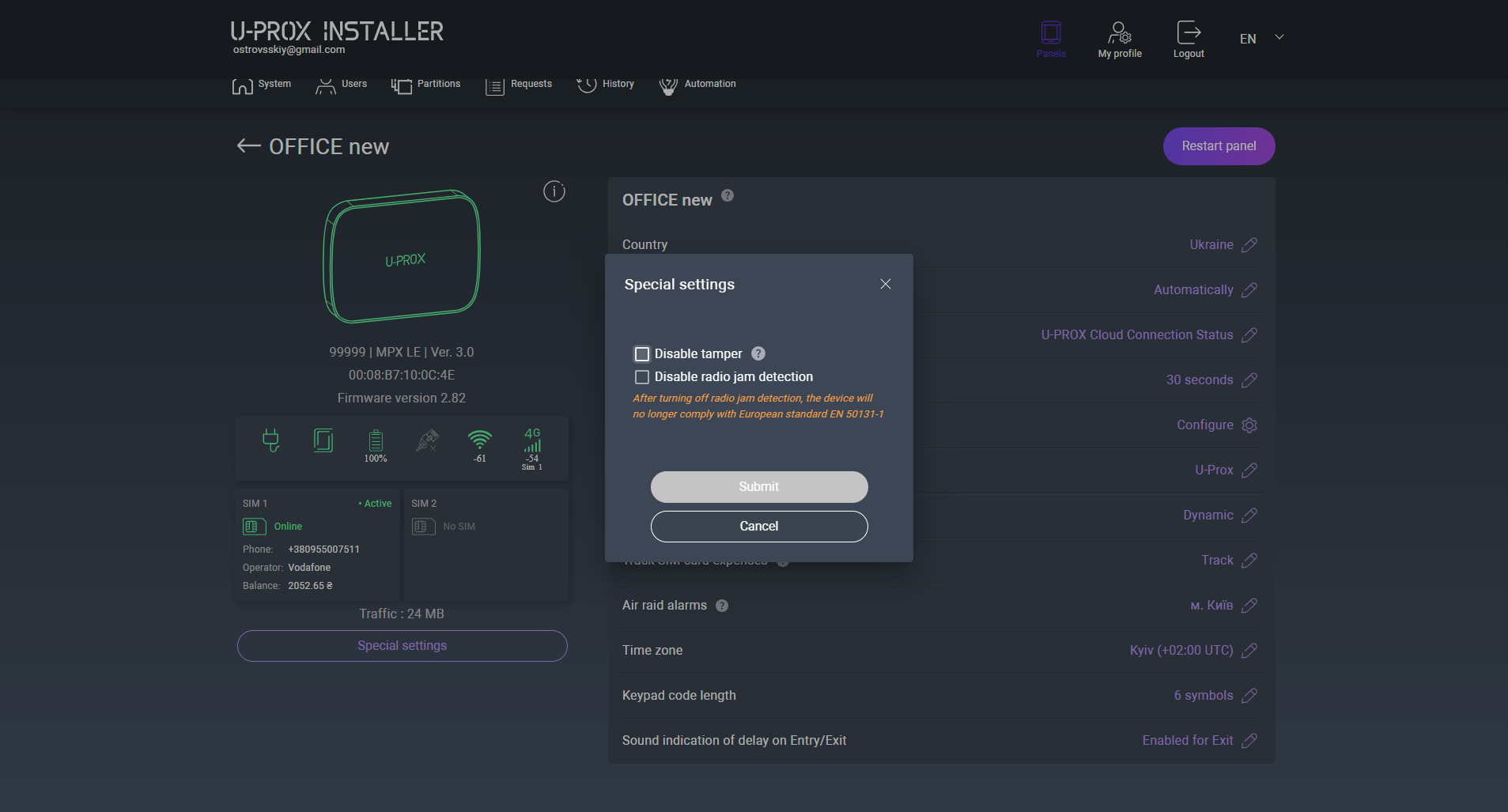

14. Special settings:

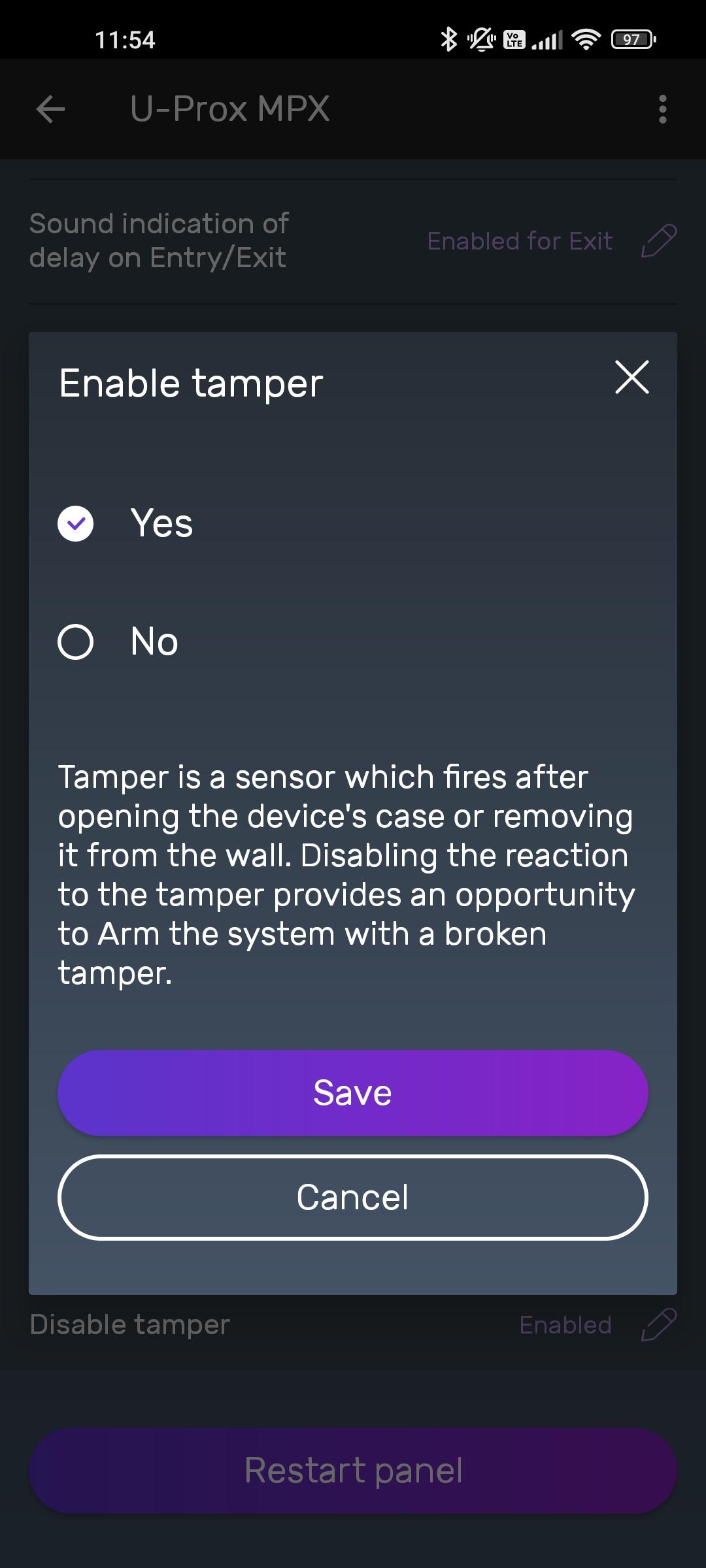

• • “Disable tamper” – when enabled, the device will not respond to enclosure opening.

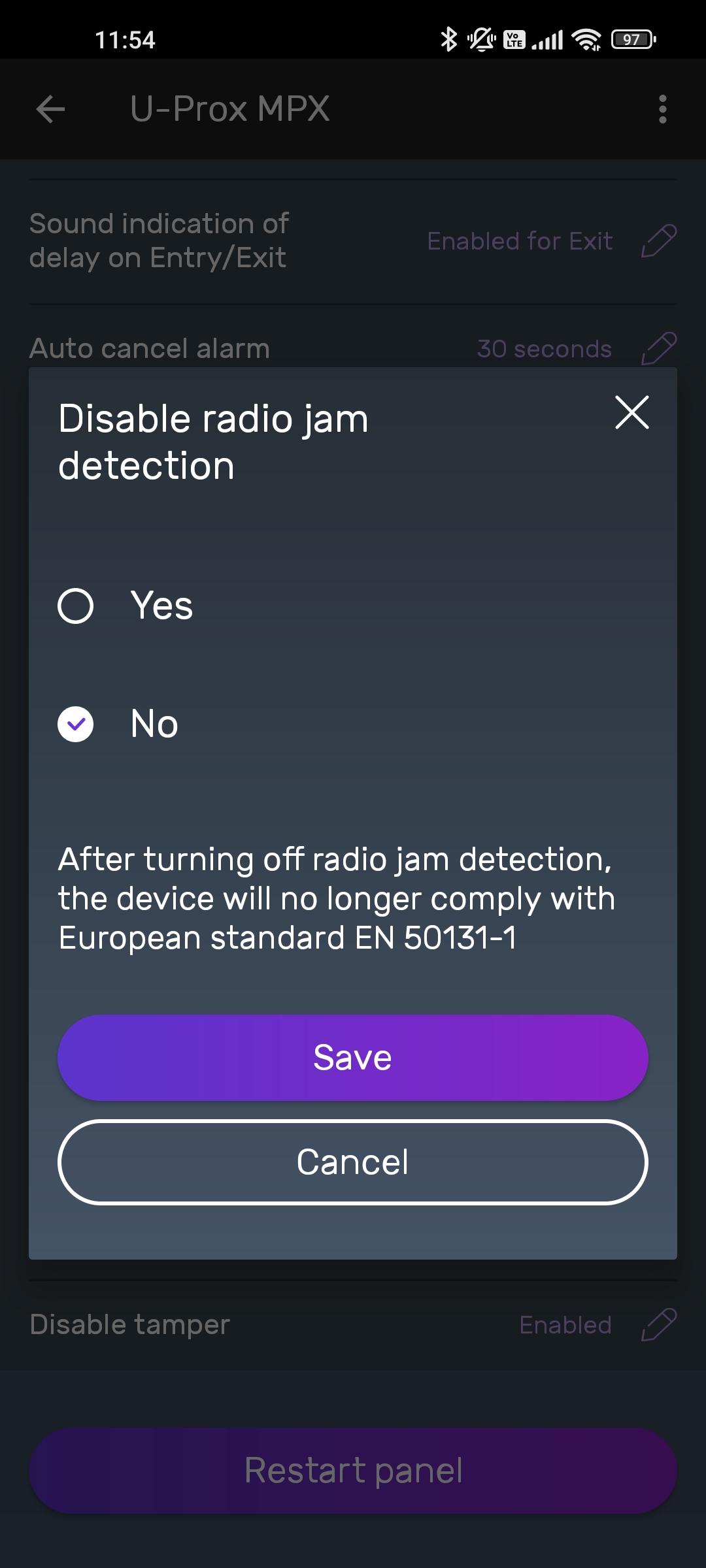

  • “Disable radio noise detector” – disables the radio noise detection algorithm in accordance with EN 50131-1.

Remote Wi-Fi configuration from the U-PROX Installer WEB portal and U-PROX Installer mobile application

1. Select the device from the device list in which you want to configure or reconfigure Wi-Fi

2. Go to the security control panel settings and select “Wi-Fi settings”

3. Press the “Search Wi-Fi access points” button

4. The following will be searched

WARNING: THE DEVICE OPERATES ONLY WITH WI-FI 2.4 GHz. OTHER TYPES ARE NOT SUPPORTED AND WILL NOT BE DISPLAYED DURING SCANNING.

5. The found access points are displayed in the list. Select the network you want to
connect to from the list

6. Enter the password and confirm the availability of an alternative communication
channel in case the Wi-Fi connection fails

7. The Wi-Fi network will be connected

Cellular (mobile) network setup

1. Select from the list of devices the device for which special cellular network parameters must be set

2. Select the SIM card for which special settings must be specified

3. Set the required settings, confirm the presence of an alternative communication channel in case the connection is unsuccessful. Press the “Save” button

Registration of wireless devices

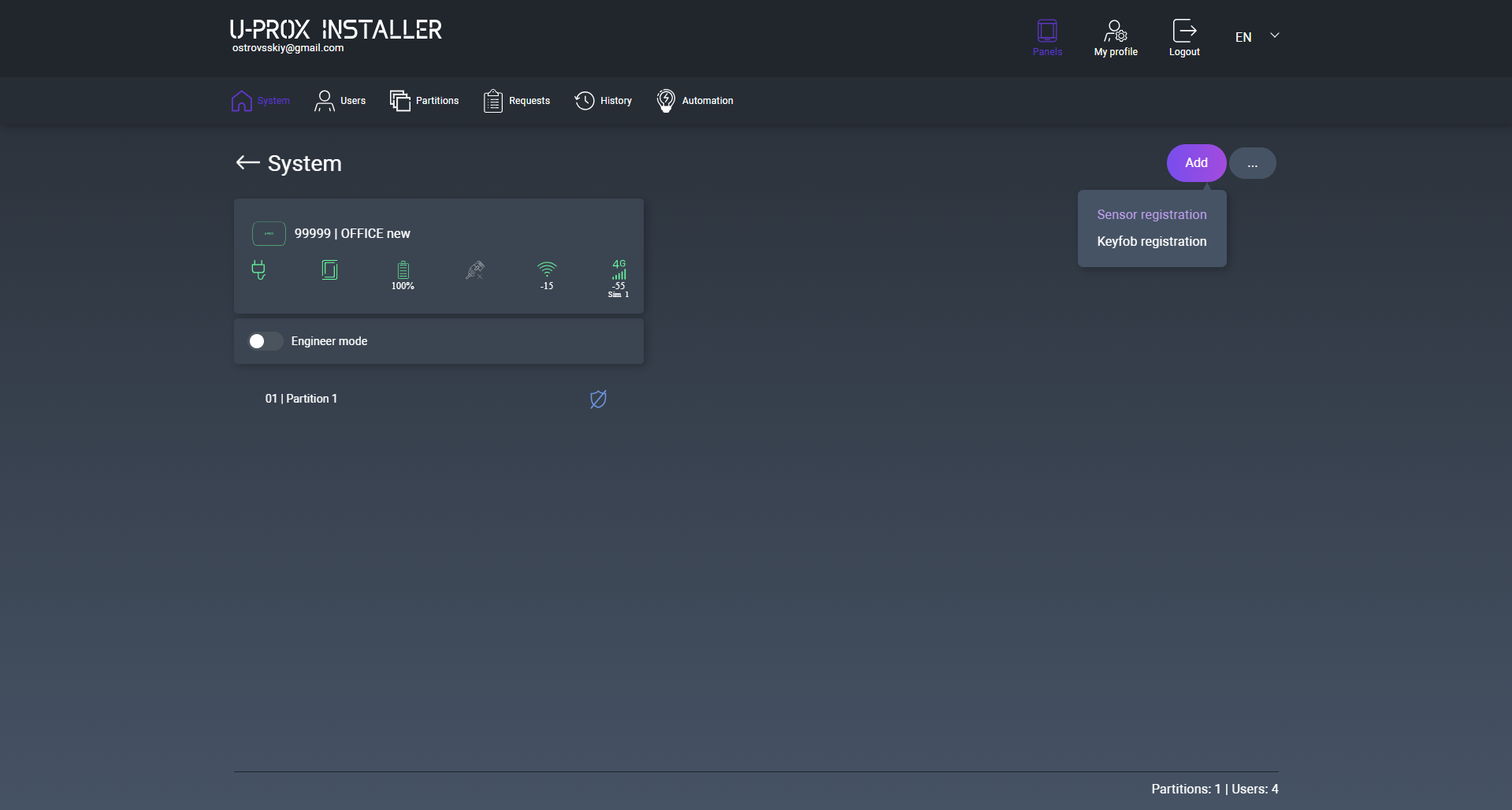

1. Select the U-PROX MPX LE device from the list to which the wireless detector should be added

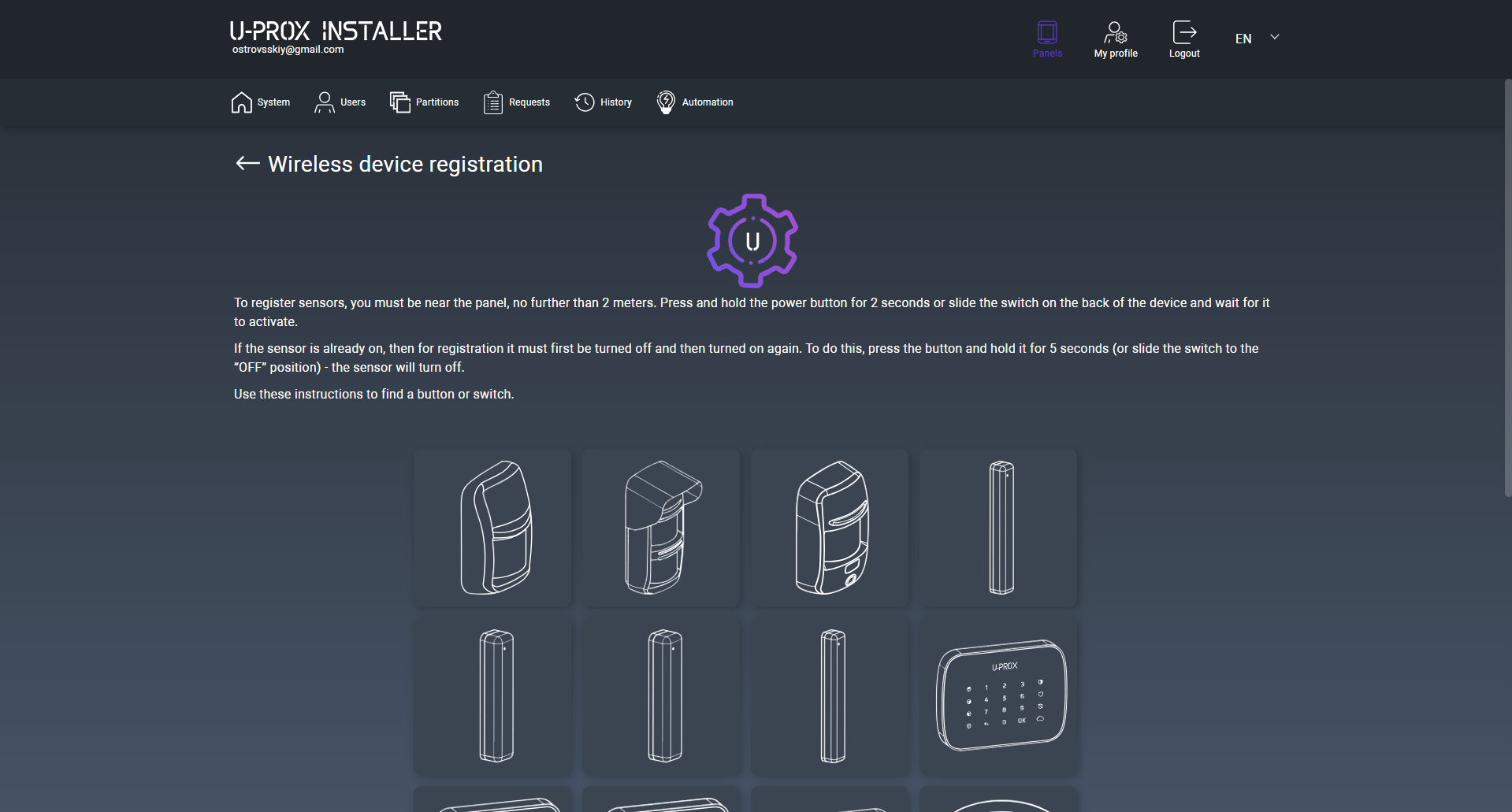

2. Press the (+) button (“Add radio devices”), the control panel will switch to the registration mode for detectors, keypads, etc. In this window, you can tap the device icons and view the activation instructions.

3. According to the instructions, turn on the wireless detector and bring it close to the control panel at a distance of approximately 1 meter

4. Wait 15–20 seconds – the wireless detector will be registered and its settings will open in the application

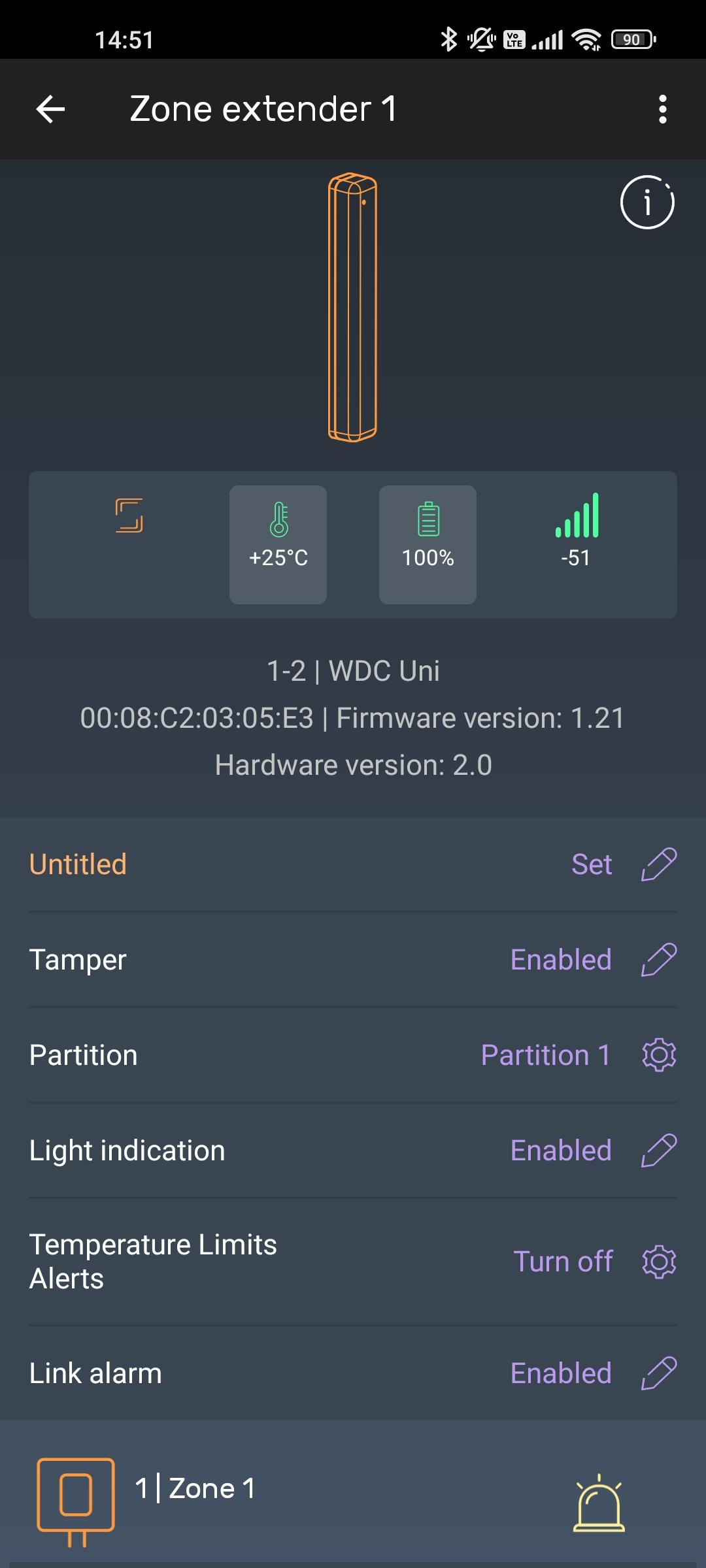

5. After changing the settings, device registration will continue

6. To complete registration, press the “Back” button in the application window

Adding a user

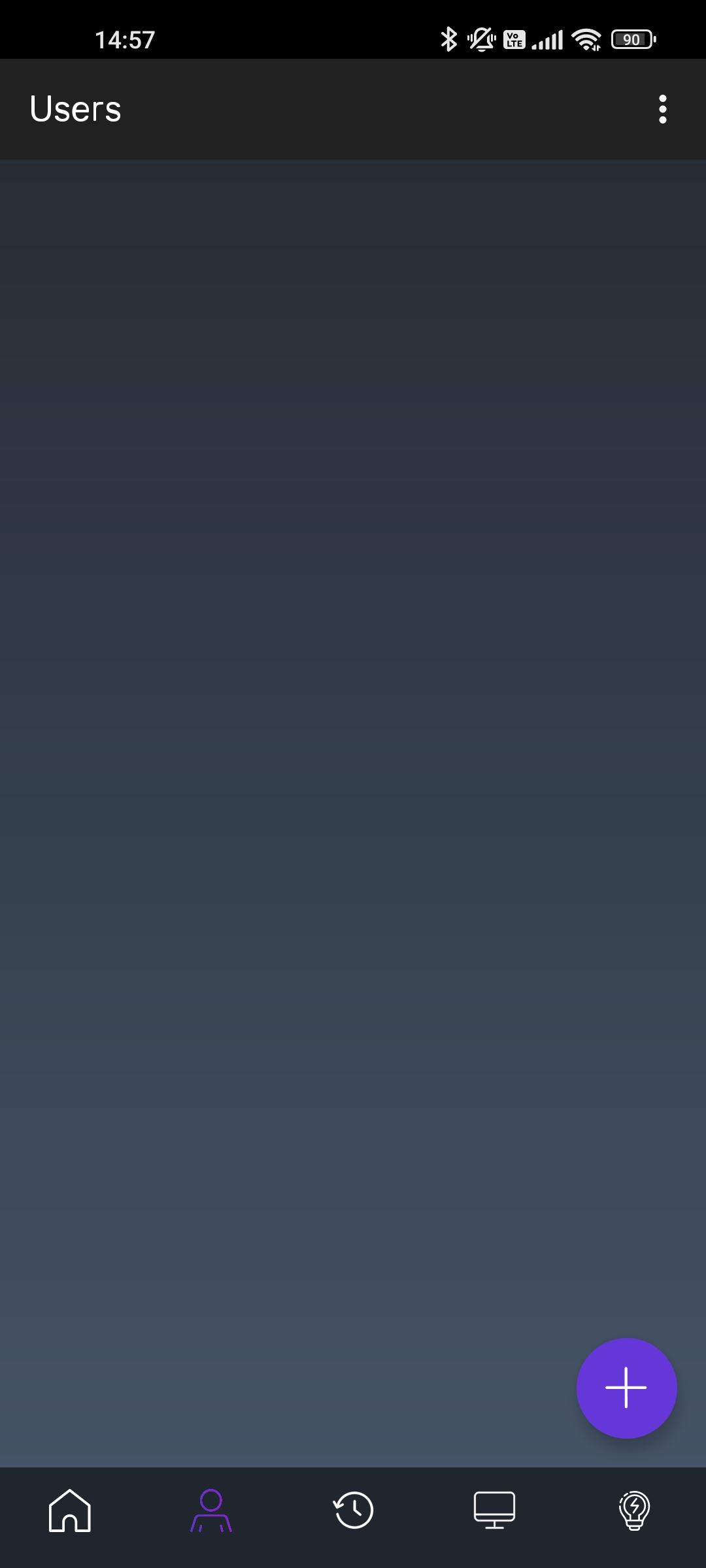

1. After registering the existing wireless devices, go to the “Users” section to configure users

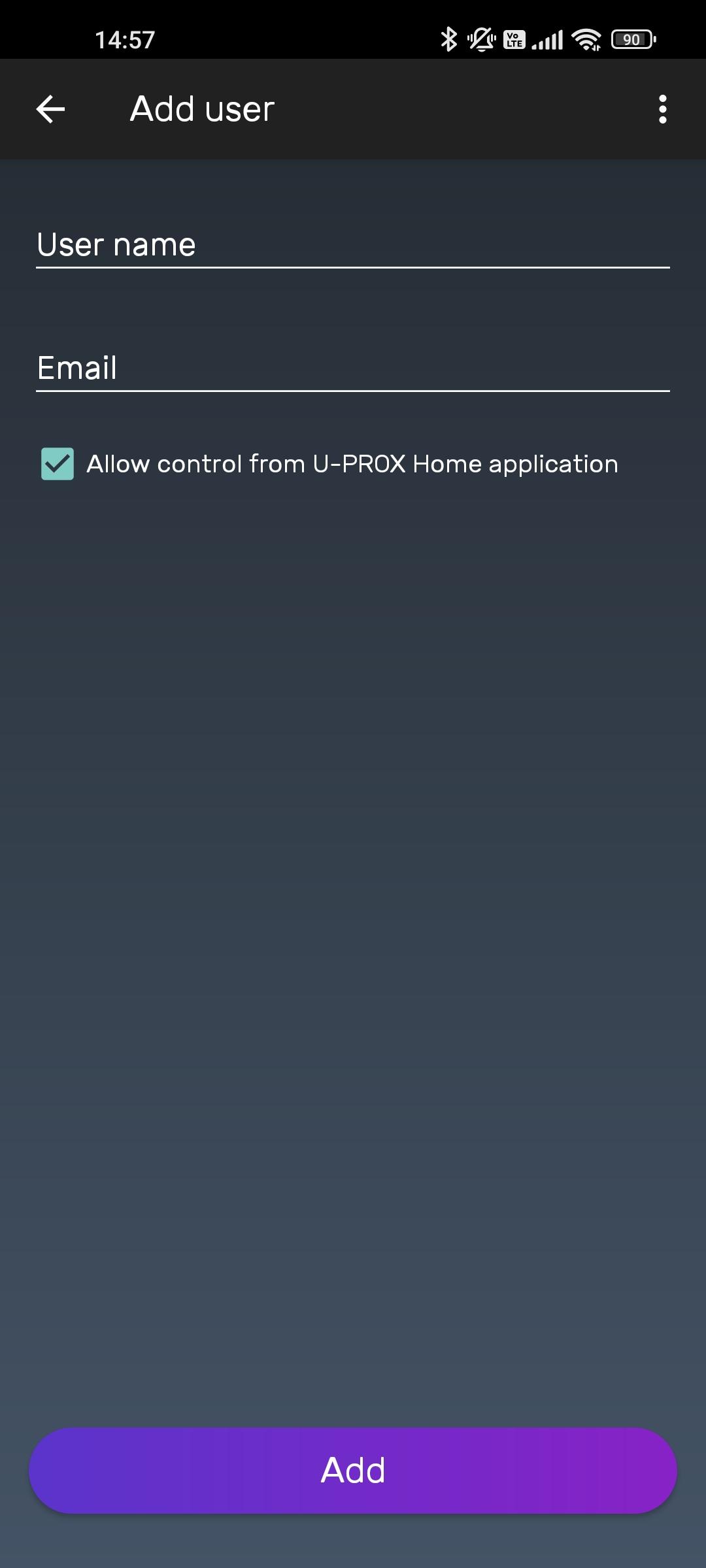

2. Press the (+) button (“Add user”) and enter their name.

3. Press the “Add” button – the user will be created

Adding a keypad code for a user

If a keypad is used in the system, provide users with a PIN code.

1. Go to the “Users” section

2. Select a user from the list

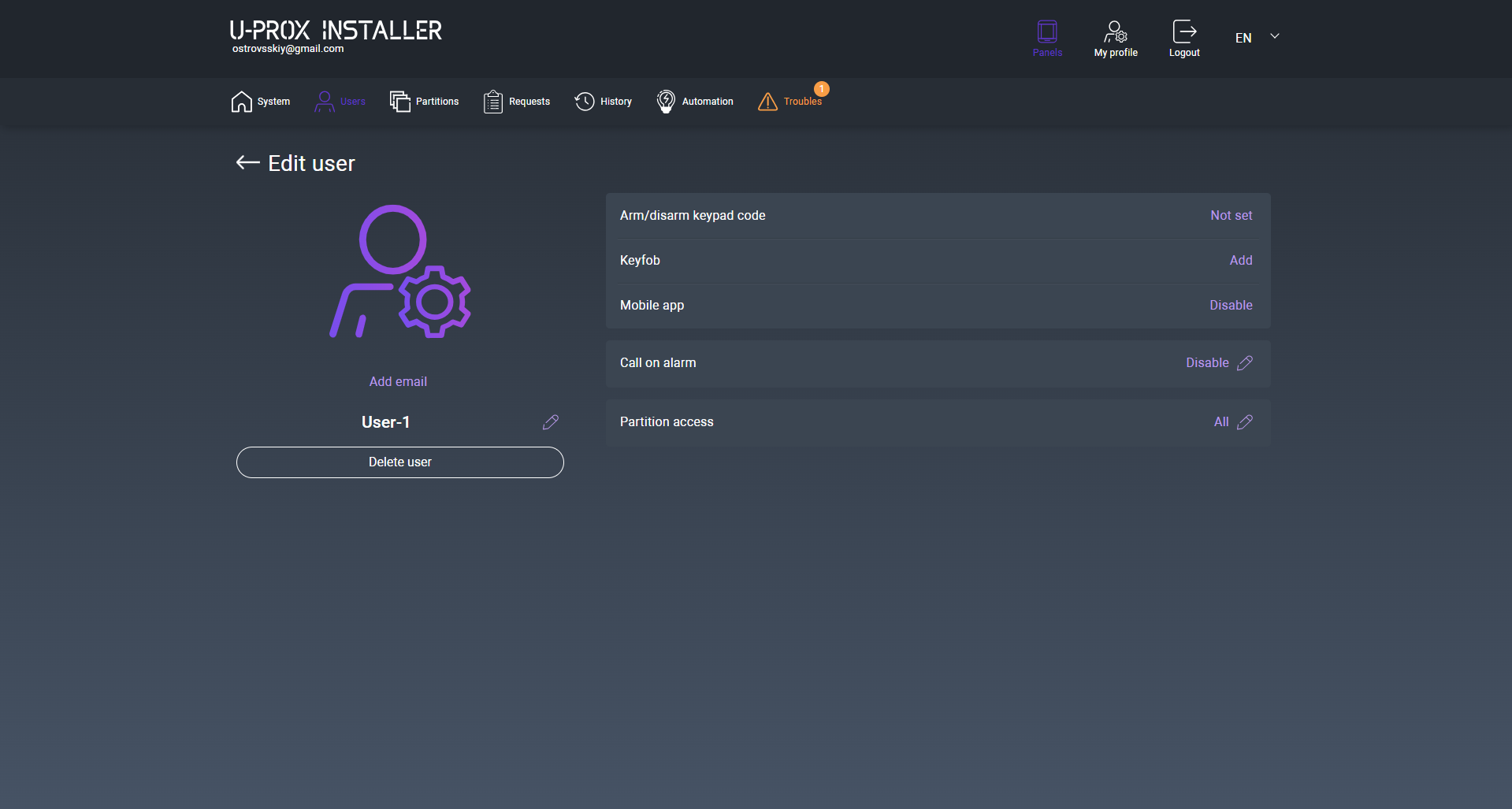

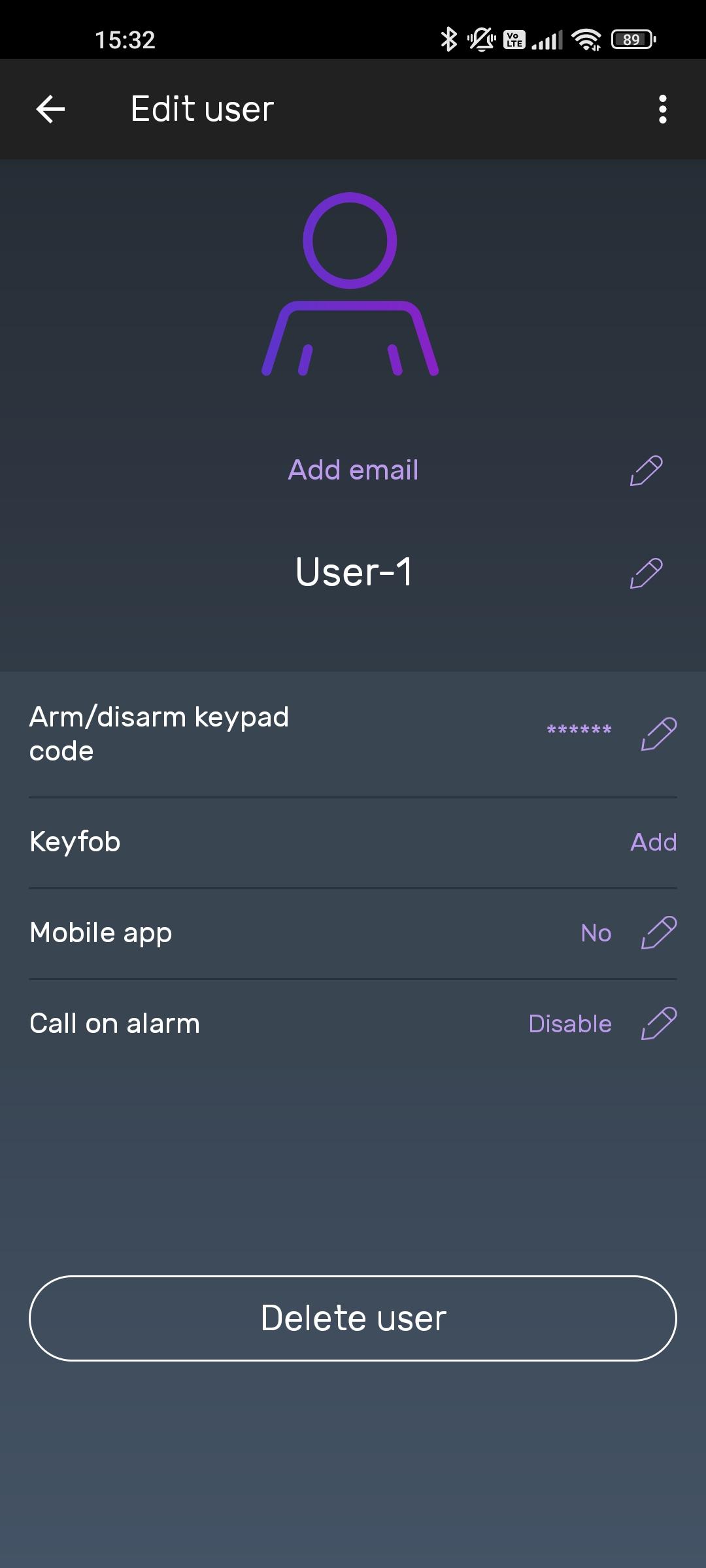

3. Select “Keypad code for arming/disarming”

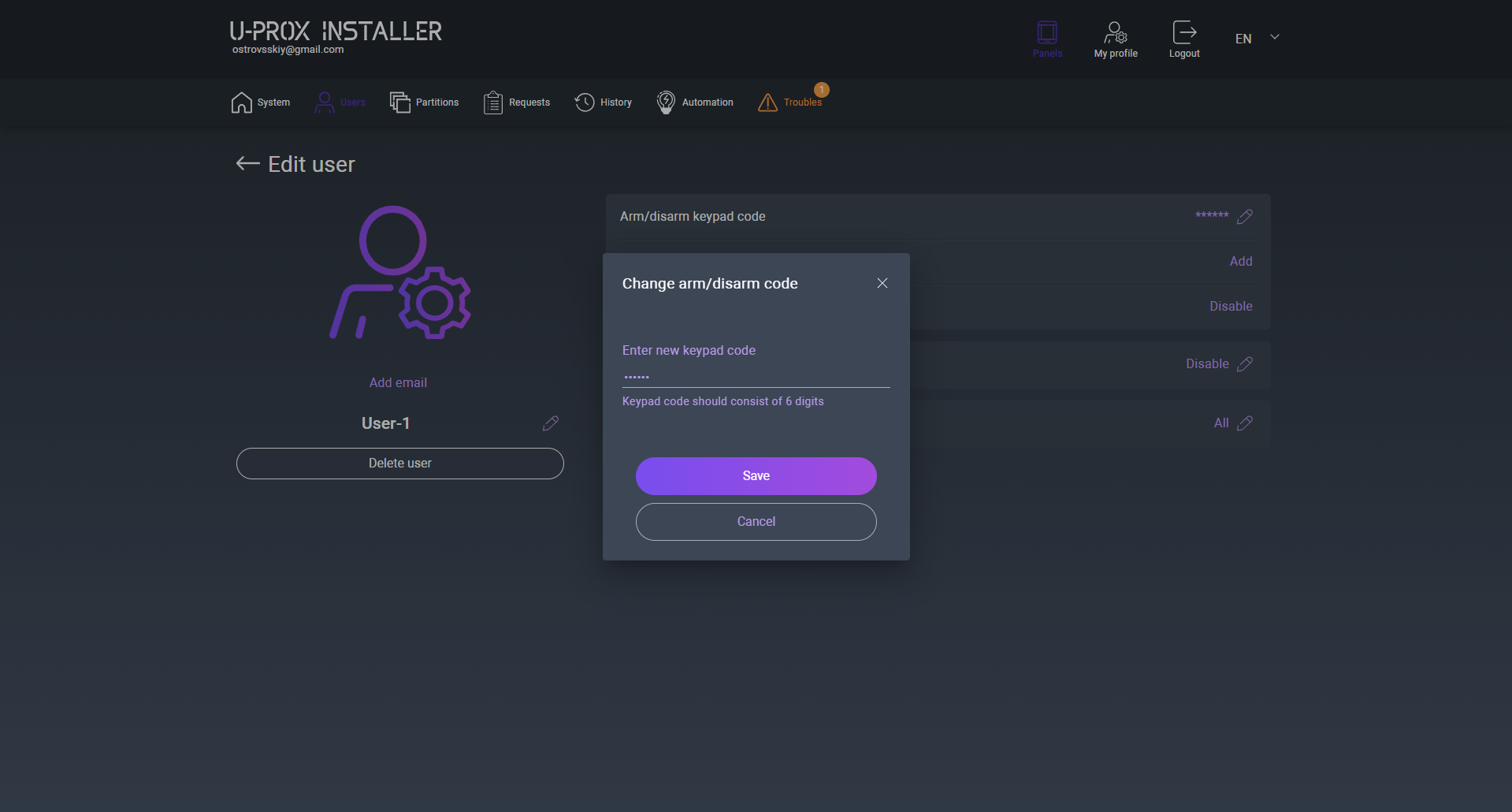

4. Enter the keypad code and click the “Save” button

5. The passcode will be saved

Registration of a wireless key fob

To add a wireless key fob to a user, perform the following actions:

1. Go to the “Users” section

2. Select a user from the list

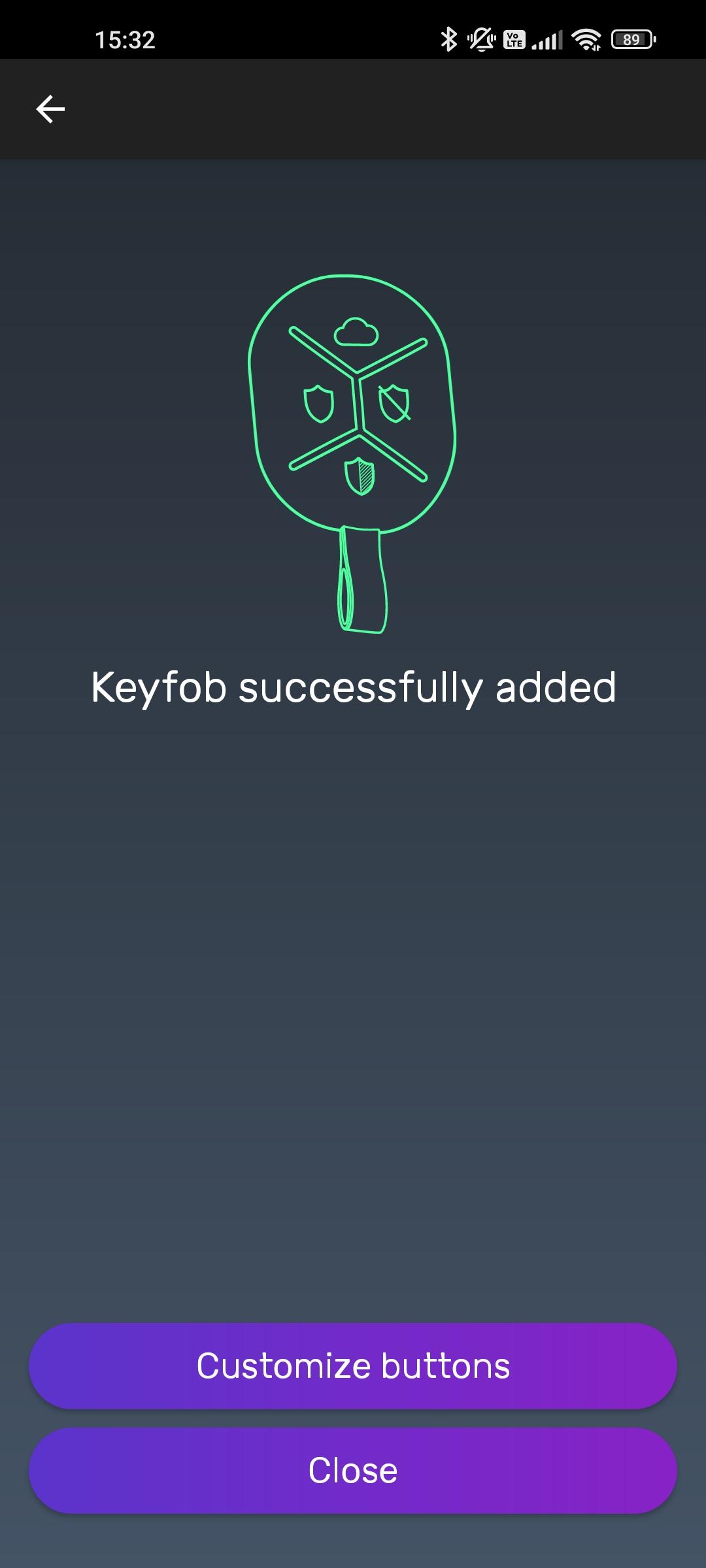

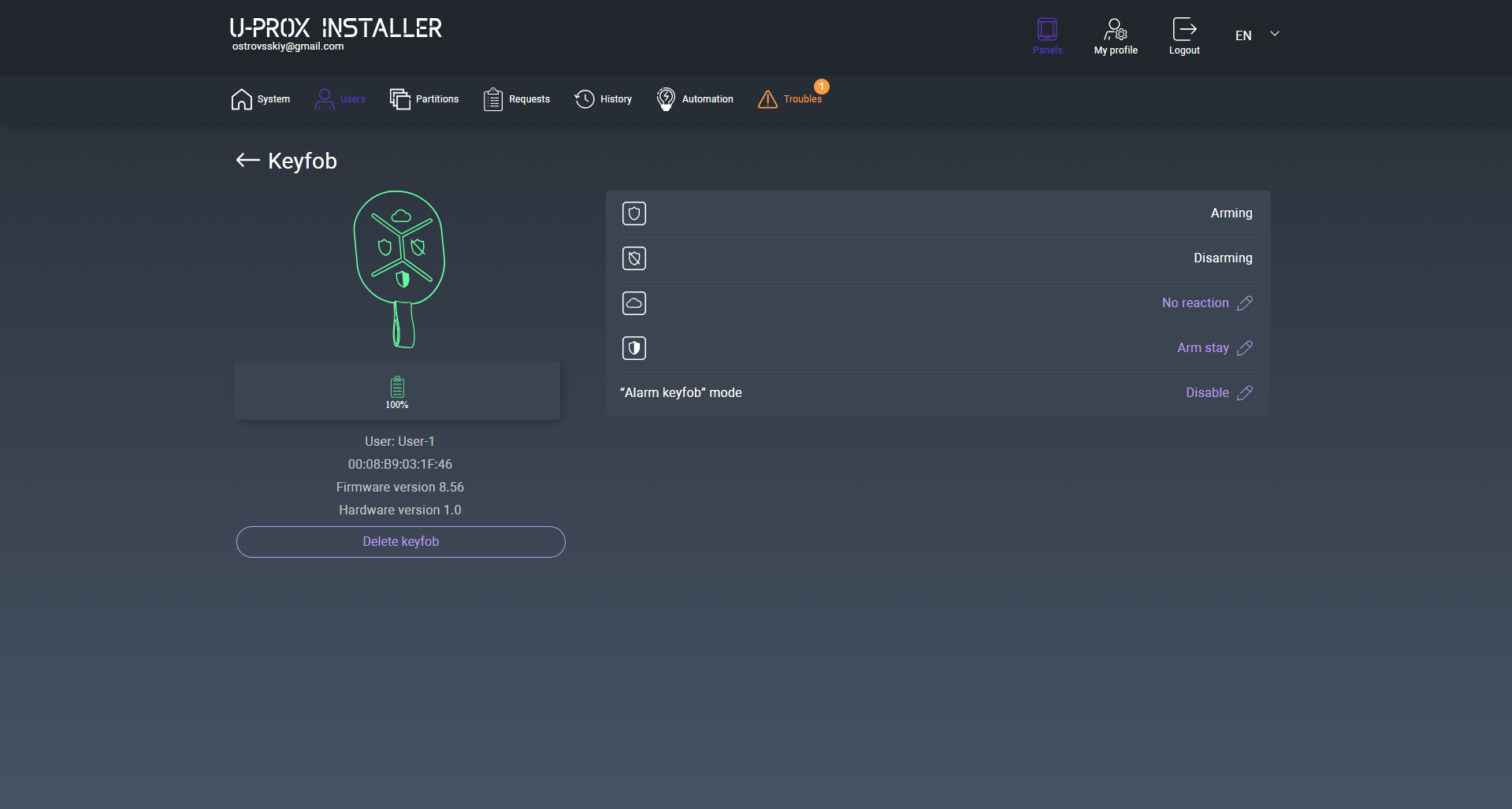

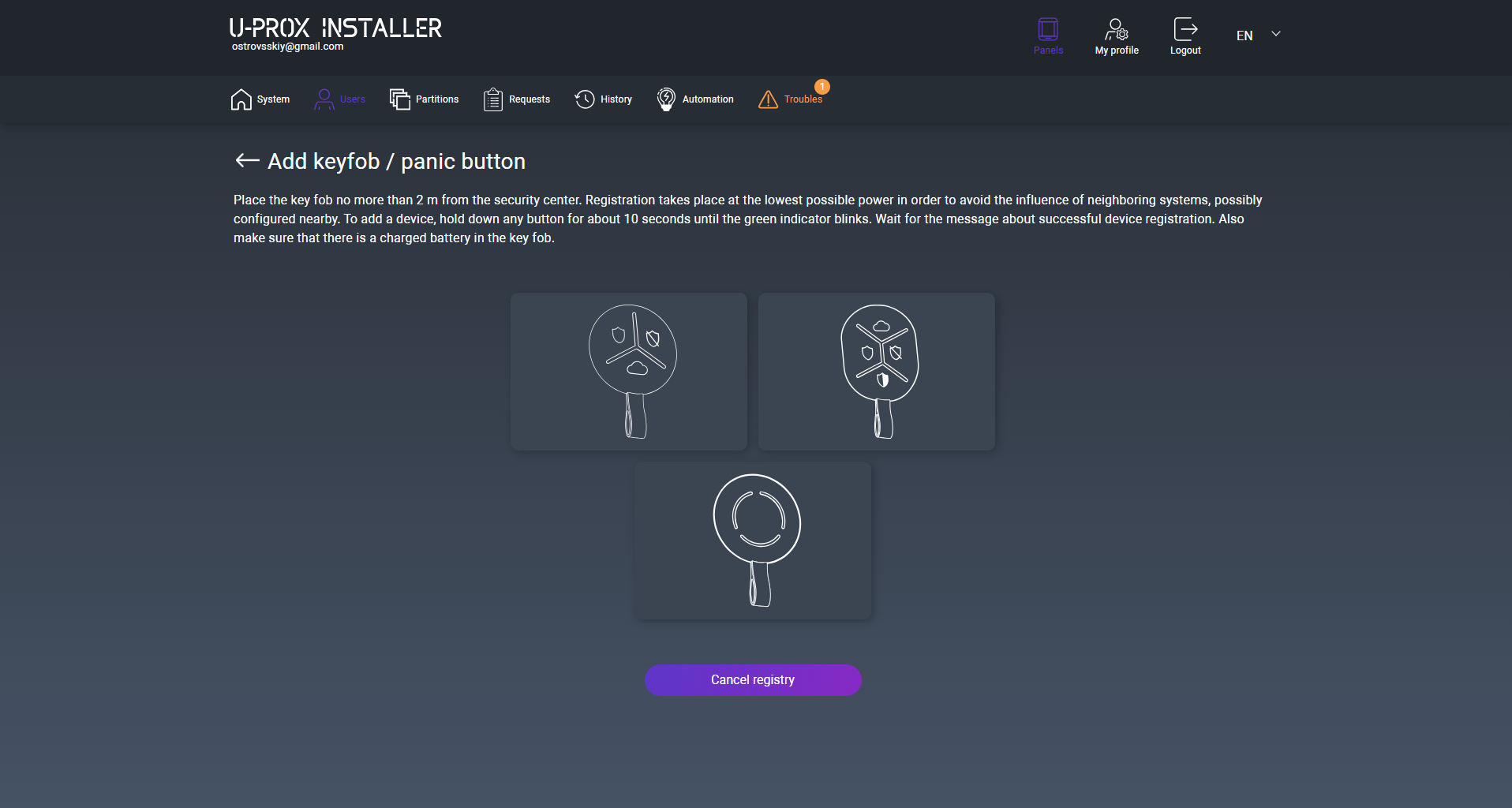

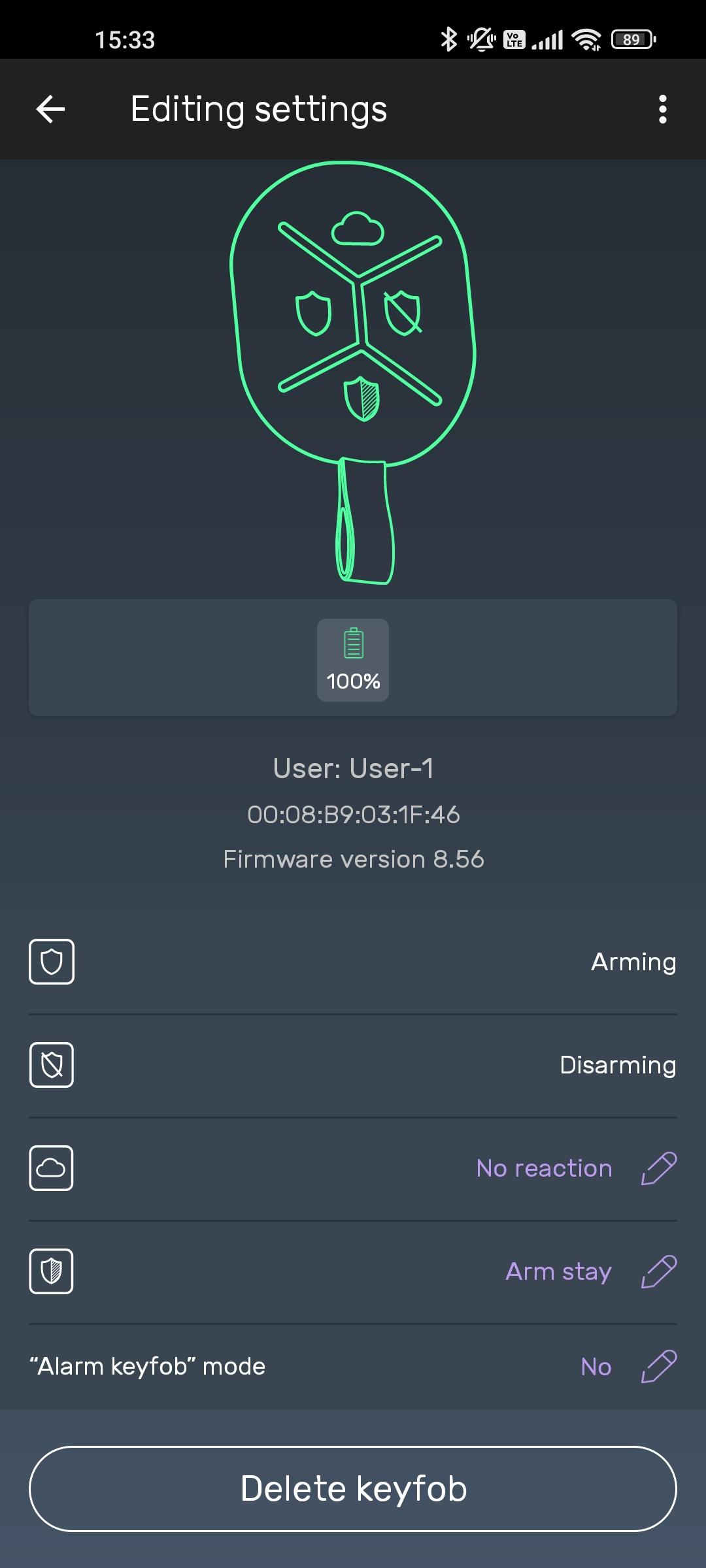

3. Select the “Key fob” item, key fob registration will be started

4. Bring the key fob to a distance of 0.5 m from the control panel, press and hold the button for about 20 seconds – the key fob will be registered. Release the key fob button.

5. If necessary, press the “Change buttons” button to reconfigure the functions of the key fob buttons

Granting user access to the mobile application

1. Go to the “Users” section

2. Select a user from the list

3. Select the “Mobile application” item

4. Specify the user’s e-mail address, select the “Allow” option and press the “Save” button

5. The user will receive an email with an access invitation to the specified e-mail address. If the application has not been installed before, the application will be downloaded and installed. After launching the application, if necessary, a new user
will be registered.

Security group configuration

A security group is a logical combination of protected premises zones (for example, a room, apartment, garage, floor of a building, etc.), the minimum unit of protection. A security group allows you to control all zones simultaneously. Security groups are independent – the user can manage and see only those security groups, devices, and events within them to which access has been granted.

1. Go to the “Security groups” section

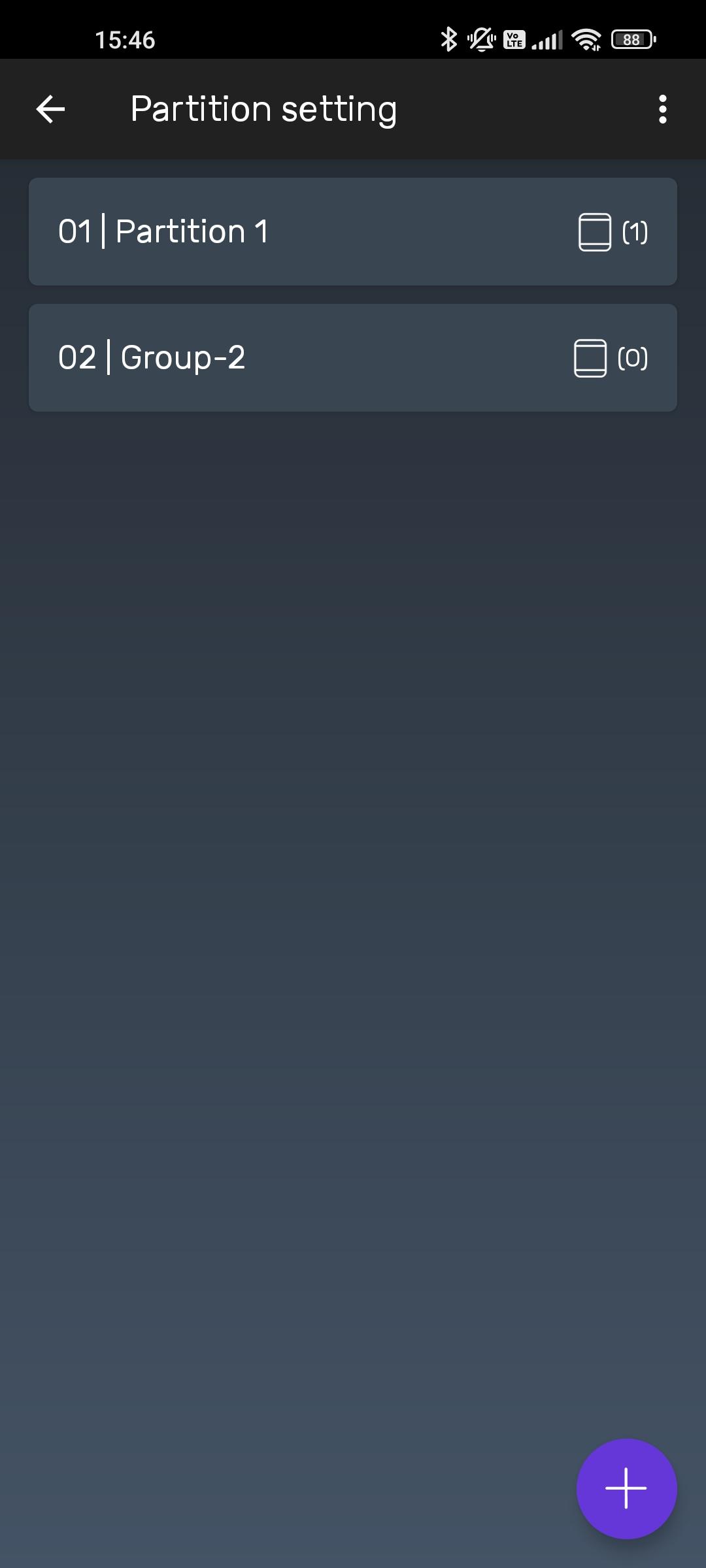

2. Press the (+) button (“Add group”), enter the group name and press “Save”

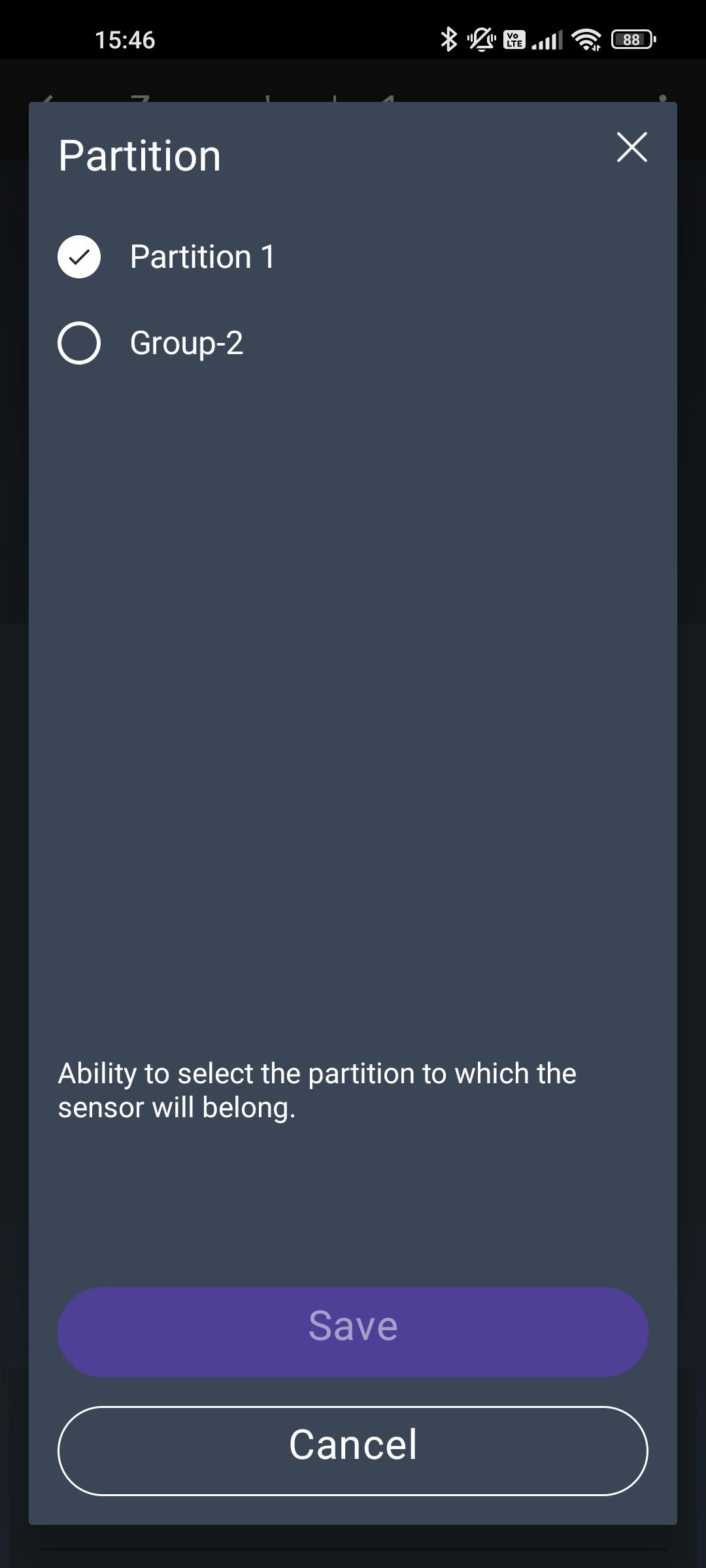

3. In the detector properties, you will be able to assign the detector to another group

Connection to a security company

Connecting the system to a security company allows you to receive round-the-clock monitoring of the security system status, rapid response to alarms with the involvement of rapid response teams and engineers to maintain the equipment.

Each security system is identified by the security company by an internal identifier – a monitoring station number or account.

1. Select the U-PROX MPX L device from the list that must be connected to the security company

2. Go to the “Remote control” section

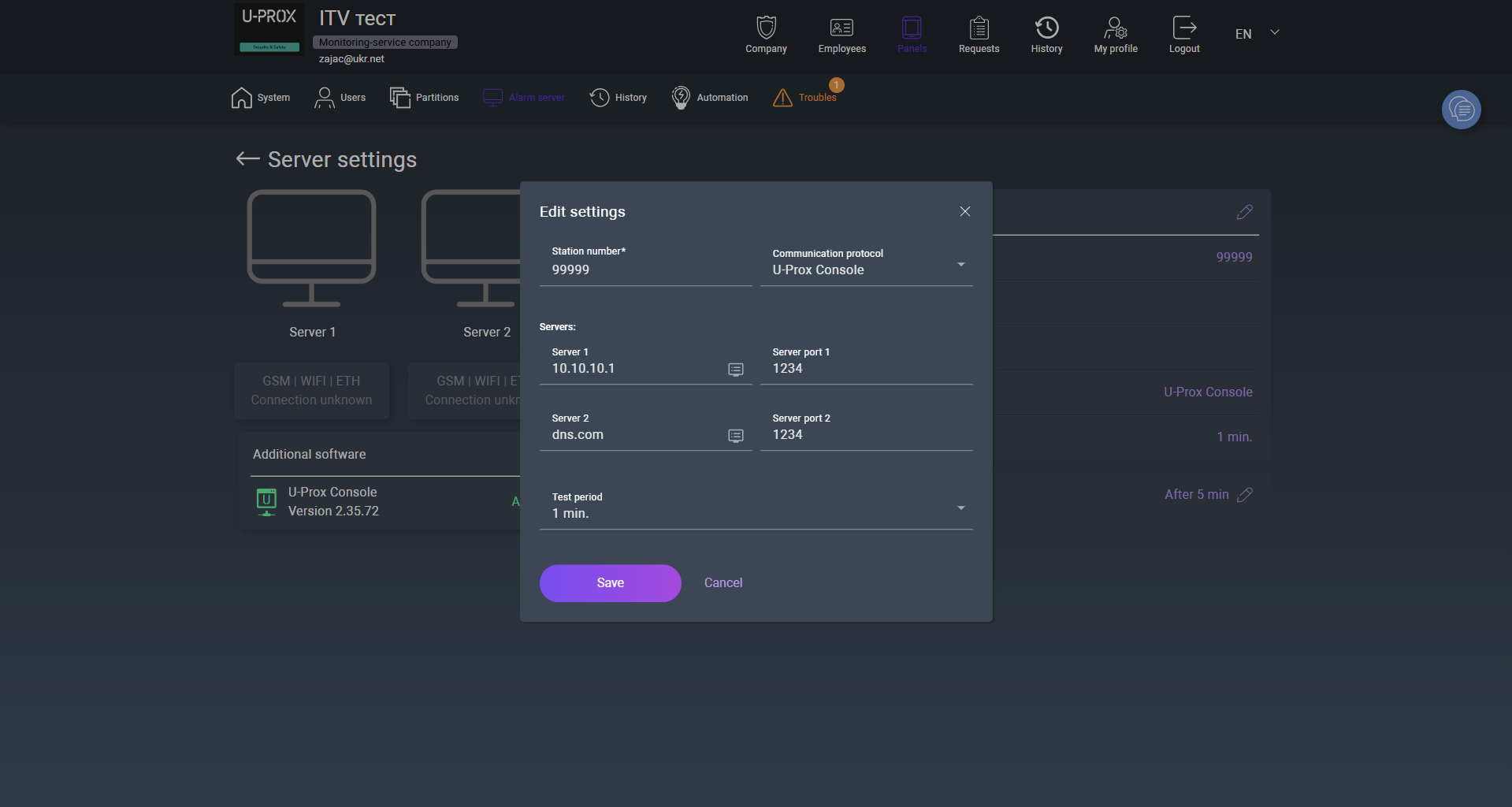

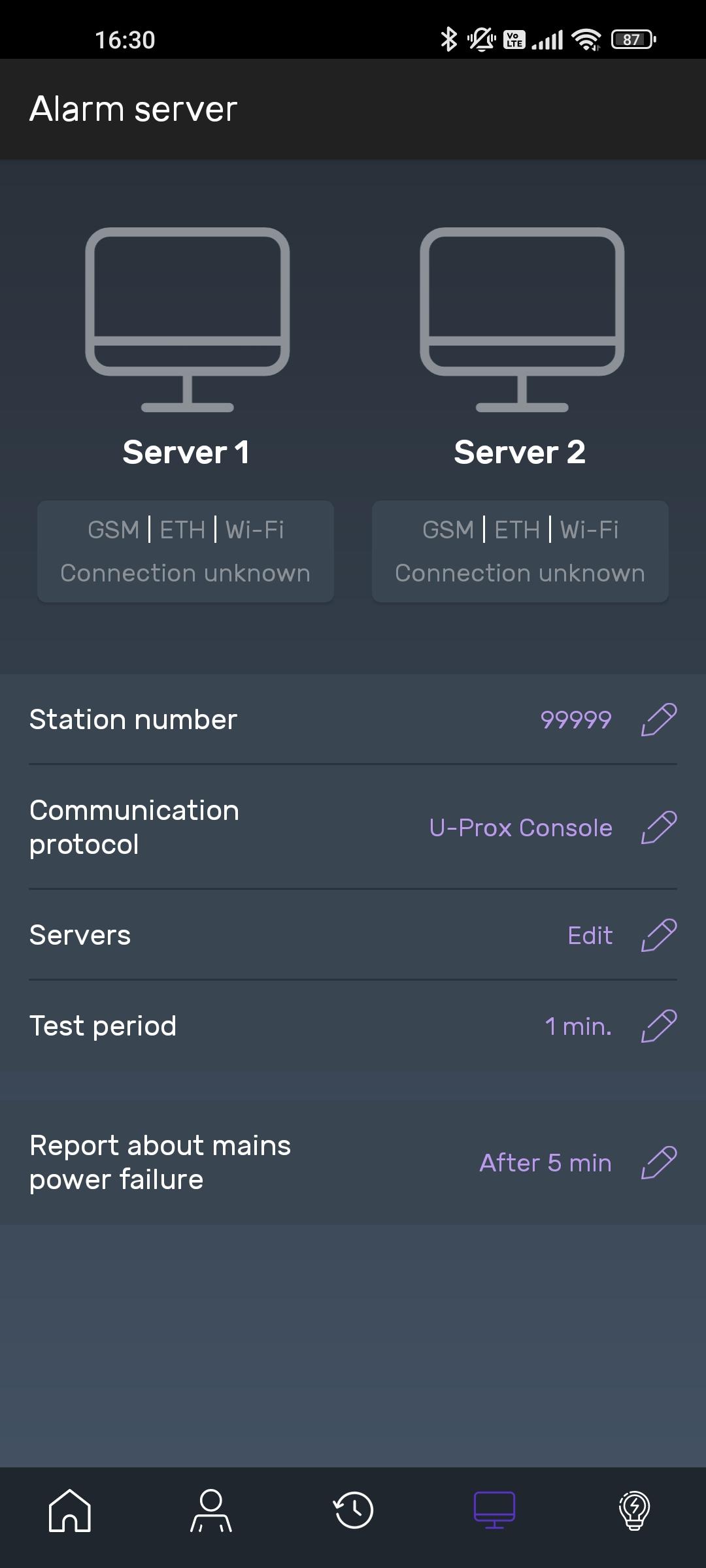

3. To connect to a security company and work through the cloud, it is enough to set only the monitoring station number of the security system

4. To connect to a security company and operate directly with backup via the cloud, it is necessary to set the control panel number of the security system and specify the IP address and port of the event receiver

5. Additionally, a test period is configured – the time interval for sending the “Periodic test” notification, which is used to monitor the status of the device and the communication channel between the device and the security event receiver.

Remove the device

1. In the device list, press the “Delete” button on the U-PROX MPX L device that must be removed

2. Select the deletion method – full, with clearing all settings (the “Clear all settings…” option is enabled, the device must be online), or partial – the device will be disconnected from the account, but all settings will be preserved (the “Clear all settings…” option is disabled)

3.Press the “Remove” button to remove the device.

U-PROX MPX device statuses

	main power is OK
	main power is absent
	device enclosure is closed
	device enclosure is open
	battery is charged
	battery charge level
	battery is critically discharged
	battery malfunction

Communicator statuses

	Ethernet communicator is OK, connection to U-PROX Cloud is available
	no connection to U-PROX Cloud
	no Ethernet connection
	connected via Wi-Fi, signal levels
	Wi-Fi connection is absent
	mobile Internet, 2G connection, signal levels and active SIM card number
	no 2G connection
	mobile Internet, 4G (LTE) connection, signal levels and active SIM card number
	no 4G (LTE) connection

Wireless device statuses

	220V power supply is normal
	220V power supply not available
	device temperature sensor
	device housing closed
	device housing open
	battery charged
	battery charge level
	battery critically low
	battery is faulty
	level of radio communication with the device
	No radio connection with the device
	passage (bypass) of the zone during the security period
	sensor tilted or inverted

User interaction

All critical events (alarm, loss of communication, low battery, tamper triggering) are displayed in the application in real time and are accompanied by push notifications.

The event history allows viewing all actions and system states for the selected time period.

Depending on the granted rights, the user can manage security groups, devices, and automation elements.

Changes to system settings are logged and available for review in the event history.

U-PROX Home application and interaction with the user

Receiving an invitation

1. The user receives an invitation to their email
2. After clicking the “Open application” link, a transition to the U-PROX Home application will be performed if it is installed, or it will be предложено to install the application and set a password for the new user.

3. During the first installation, the application will request additional settings, such as a security PIN code, geo-reminder settings, application appearance, and, if the appropriate right is granted, additional settings when using the panic button

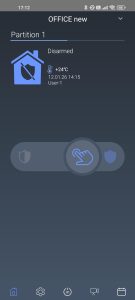

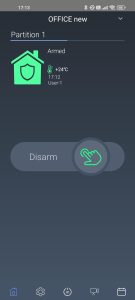

4.The main screen of the application can have two views: one group and horizontal navigation through the groups in a slider (view A) and a view with a list of groups (view B)

At the bottom of the screen there is a navigation panel that provides movement to the main functions: Security,Settings, Automation, Cameras, Events.

Full production

1. Go to the “Security” section
2. Select the appropriate group
3. Perform the following actions for “Full arming”: for view A – move the joystick to the far right position, for view B – select the appropriate group from the list and press the “Full arming” button
4. The exit delay countdown will start (if a delay is configured)

Partial arming (“Night mode”, “Perimeter”)

1. Go to the “Security” section
2. Select the appropriate group
3. Perform the following actions for “Partial arming”: for view A – move the joystick to the far left position, for view B – select the appropriate group from the list and press the “Partial arming” button
4. The group will be armed in “Perimeter” mode – all sensors with the “Internal” property will be disabled

Disarming the system

1. Go to the “Security” section
2. Select the appropriate group
3. Perform the following actions for “Disarming”: For view A – move the joystick to the far left position, for view B – select the appropriate group from the list and press the “Disarm” button
4. The group will be disarmed

Panic button

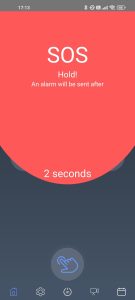

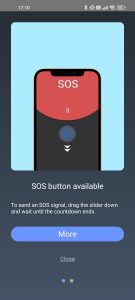

Sending the “Attack” (“Panic” or “Silent alarm”) signal. This function must be enabled in the user properties.

1. Go to the “Groups” section
2. Perform the following actions: for view A – move the joystick to the far bottom position and hold for 3 seconds, for view B – press the “Alarm” (!) button

Cancel the alarm

To cancel the alarm, it is enough to disarm the group, or press the “Arm” and immediately “Disarm” buttons

Control of actuator devices

1. Go to the “Automation” section
2. Press the toggle near the corresponding device to activate or deactivate it

Video surveillance

1. Go to the “Cameras” section

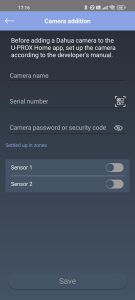

2. If it was not installed previously, the application will offer to download and install an additional video module. Press “Download”

3. After successful download of the module, press the (+) button to add a camera, and select its type from the menu that appears

4. When adding a Dahua/Imou camera, it is enough to set the camera name and read the serial number using the built-in QR code scanner.

5. Specify which security zone the camera is linked to, so that in case of an alarm in the zone the video from the nearest camera is displayed, and press “Save”. For verification, you can view the video

6. In order to add an RTSP camera, specify its name and the rtsp link

Event log

1. Go to the “Events” section

2. To filter events by types, use the “Filter” button

Additional options

This menu contains additional parameters for configuration and control of the security system

1. “Security system” – information about the device, its communication channels, used traffic. Also provides the ability to change Wi-Fi network settings.

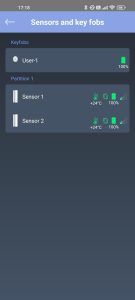

2. “Sensors and key fobs” – information about devices in the system and their status. Also provides the ability to view statistics on temperature changes and battery discharge. From this menu you can disable (skip or “bypass”) a faulty sensor.

3. “Users” – view system users and, if the appropriate right is granted, edit them

4. “Notifications and reminders” – configuration of notifications and reminders about arming and disarming according to geolocation

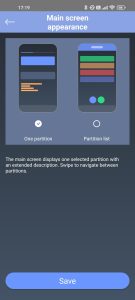

5. “Application appearance” – configuration of the appearance of the main screen and sensors for displaying temperature on the main screen

6. “Passwords and login” – additional security settings, such as biometric identification and an additional PIN code for logging in to the application

7. “About the application” – view the application version and send a request to the technical support service

Reset to factory settings

1. Remove the device from the mounting plate
2. Press and hold the power button for 40 seconds.
3. The device will notify with a series of sound signals – continue holding the power button.
4. Release the power button after the light indicator lights up yellow and a long signal sounds.
5. The device will return to the initial settings.

Factory reset does not remove the device from the owner’s account or the security company account!

IF THE POWER BUTTON IS RELEASED DURING THE SERIES OF SOUND SIGNALS, THE DEVICE WILL NOT RETURN TO THE INITIAL SETTINGS.

Compliance with standards

• RED (Radio Equipment Directive) Directive 2014/53/EU
• EU ROHS Directive 2011/65/EU, EN IEC 63000:2018
• EN 62311:2008
• EN 62368-1:2014
• EN 50130-4:2011/A1:2014
• EN 61000-6-3:2007/A 1:2011
• ETSI EN 301 489-1 v2.2.3
• ETSI EN 301 489-3 v2.1.1
• ETSI EN 301 489-17 v3.2i4
• ETSI EN 301 489-52 vl.2.1
• ETSI EN 300 220-1 v3.1.1
• ETSI EN 300 220-2 v3.2.1
• ETSI EN 300 328 v2.2.2
• ETSI EN 301 908-1 v13.1.1
• ETSI EN 301 908-2 v13.1.1
• ETSI EN 301 908-13 v13.1.1
• ETSI EN 301 511 v12.5.1
• IEEE 802.3x-1997
• EN 50131-1 Grade 2, Class II:
  • EN 50131-1:2006/A1:2009/A2:2017/A3:2020
  • EN 50131-3:2009
  • EN 50131-5-3:2017
  • EN 50131-6:2017
  • EN 50131-10:2014
  • EN 50136-2:2013

Warranty

The manufacturer guarantees that U-PROX MPX L meets the parameters described in this manual, provided proper storage and operation.

• Warranty storage period — 6 months from the date of manufacture
• Warranty operating period — 24 months from the date of commissioning
• Delivery, staff training, installation, commissioning and warranty service are carried out by the manufacturer or authorized organizations
• In case of a defect due to the manufacturer’s fault, elimination is performed within 10 days
• Warranty service is not provided in cases of:
  • Incorrect connection,
  • Failure to follow this manual,
  • Mechanical damage,
  • Natural disasters.

The manufacturer reserves the right to make design changes that do not affect key characteristics or reliability.

Training and technical support

Training courses covering the installation and use of the U-PROX MPX L are conducted by “Limited Liability Company Integrated Technical Vision.” For additional information, please contact company employees using the phone numbers listed below.

Technical support:

+38 (091) 481 01 69

support@u-prox.systems

https://t.me/u_prox_support_bot

This support is intended for trained specialists. End users should contact their dealers or installers before contacting “Limited Liability Company Integrated Technical Vision.”

Technical information is available at: www.u-prox.systems
