U-PROX SL mini
Universal miniature reader
Top ID formats
Mobile Identification
Protection against cards forgery
Compatible most ACS
Adjustable from smartphone
Protection against cards forgery
Protect access control system identifiers from cloning and data spoofing
-
- Mifare Desfire EV1, Mifare Desfire EV2, Mifare Desfire EV3
- AES encryption
-
- SL1 and SL3 support
- AES encryption
-
- Special algorithm to avoid vulnerability in Crypto 1
-
- Encrypted container with data in U-PROX ID
- Data protection based on smartphone security
- Secure communication channel
Mobile identification
All keys in your smartphone
Reading U-Prox ID
Your smartphone can become an electronic key for access to the premises.
- Opening up close and at a distance of up to 15m via BLE
- Opening up close via NFC (Android only)
- Receiving and storing identifiers
- Identifier backup
- Remote door opening in the cloud access system
Reading U-PROX Tag
Contactless active identifier for authorizing users of the access control system in hands-free mode.
It can work in two modes:
- Hands-free and button
- Button only
Reading U-PROX Auto Tag
Contactless active identifier for vehicle authorization in the access control system
Configuration from your smartphone
Reader configuration with mobile app
Full configuration of the reader from the mobile application
- Indication
- Output interfaces
- Allowed types of identifiers
- Encryption keys
- Mobile identification modes
- Updating firmware
- Saving configuration templates
Lifestyle gallery
Photos and videos
Certificates
NEW PRODUCTS
Want to buy?
Contact partner companies to purchase or install security and automation devices.
Want to sell?
Become an official distributor, reseller or installer of U-PROX security and safety systems.
TECHNICAL SPECIFICATIONS
| Generation | First edition of U-PROX SmartLine Readers, revision 2 |
|---|---|
| Mifare®, 13.56 MHz |
ISO14443A, 4, 7, 10 bytes UID: Mifare®Classic 1K/4K Mifare®Standard Mifare®Ultralight Mifare®Hi-Memory Mifare® Plus S 2K Mifare® Plus S 4K Mifare® Plus SE 1K Mifare® Plus X 2K Mifare®Plus X 4K Mifare®Plus EV1 2K Mifare® Plus EV1 4K Mifare® DESfire Mifare® DESfire EV1 Mifare® DESfire EV2 |
| NFC, 13.56 MHz | U-PROX ID (Android only) |
| Payment cards |
PayPass PayWave Cards in Apple Wallet Cards in Google Wallet |
| RFID, 125 kHz |
ASK FSK |
| 2.4 GHz mobile ID |
U-PROX ID U-PROX Tag U-PROX Auto Tag |
| Read range |
NFC, Mifare and RFID 125 kHz - up to 5 cm, 2.4 GHz mobile ID - adjustable 10 cm - 15 m |
| Power | +9...+15 VDC, consumption < 80 mA |
| Interfaces |
Wiegand Auto, 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits, RS-232, TouchMemory |
| Wiring and distance |
8 wire cable: TouchMemory - up to 30 m, Wiegand - up to 150 m |
| Dimensions | 45 х 80 х 12.5 mm |
| Weight | 70 gramms |
| Case colour |
black light gray |
| Case material | ABS+PC plastic |
| Ambient |
IP65, -40°С to +60°С |
| Firmware |
30.хх - аll in one firmware Update via NFC (Android only) |
| Proximity sensor | metal detector |
| Complete set |
1. U-PROX SL mini; 2. Mounting kit; 3. Quick start guide |
Color
+1
+1
U-PROX SL mini User manual
Description
U-PROX SL mini – the adjustable universal SmartLine reader for mobile credentials and proximity identifiers.
In conjunction with the U-PROX ID application and mobile identifiers U-PROX IDs allow any access control system to use smartphones as access system credentials.
Installation

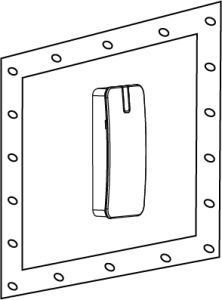

1. Make small recess or hole (diameter is 14 mm) to connect cable under the reader’s case
2. Loosen the screw at the bottom of the reader
3. Remove the top cover, remove the back plate
4. Mount the back plate of reader on the wall using supplied plastic dowels and screws
5. Carry out wiring to the control panel
6. Insert the reader in the back plate
7. Place the top cover and tighten it with a screw
Installation on the metal surfaces may cause decrease of reading range.
Do not place readers closer than 20 cm one from another. It is possible to install two readers at a distance 10-15 cm of each other when their yellow wires (Hold/Sync) interconnected. This synchronizes the work of the readers, they will work alternately.
Connection
Seamless and easy connection to existing and new access systems, due to the Wiegand 26, 32, 34, 37, 40, 42, 56, 58, 64, 80 bits interfaces, Wiegand with automatic selection, RS232 and TouchMemory supports.
We recommend to use multi-core signal cable with 0.22 mm2 cross-section of each wire between reader and panel.
Wiegand
The reader connection wires functions are listed in the table.
We recommended to use following whiring when reader connected to the control panel with twisted pair.
RS-232
The reader connection wires functions are listed in the table.
TouchMemory
The reader connection wires functions are listed in the table.
We recommended to use following whiring when reader connected to the control panel with twisted pair.
Configuration
With the free mobile application U-Prox Config, the reader can be completely adjusted — from the indication to the encryption modes.
The reader is supplied without the engineering password for programming specified. To connect and (re) set the password — connect inputs D0 (green) and D1 (white) with each other and apply power to the reader.
The reader firmware can be updated with an NFC-enabled Android smartphone only.
Mobile identification

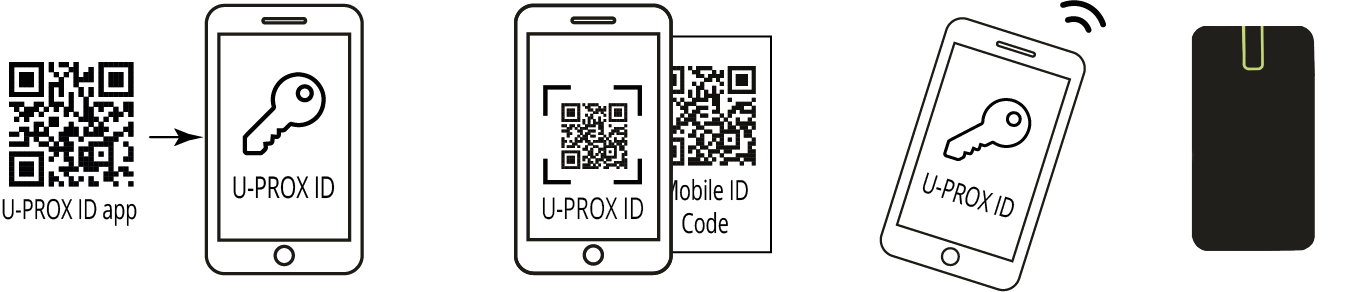

Reader supports digital personal mobile credential. It is processed and stored in the user’s smartphone using the U-PROX ID application. It can be transferred over NFC and/or 2.4 GHz radio between the reader and the smartphone.
Reader supports hardware active mobile identifiers U-PROX Tag and U-PROX Auto Tag.
Reader supports 3 operation modes for smartphones with U-Prox ID:
- “Door-Proximity” – 10-20 cm, reader activates by built-in proximity sensor. Recommended for double-sided doors and turnstiles
- “Door” – up to 60-70 cm
- “Barrier/Gate” – adjustable range of interaction from 1 to 15 m.
 |
|
 |
U-PROX ID application
Free mobile application U-PROX ID receives, stores and transmits mobile credentials between the reader and the smartphone.
How to obtain mobile ID
You can purchase mobile IDs from our dealers
RFID, 125 kHz
The reader supports 125 kHz cards with amplitude (ASK – EmMarine, etc.) and frequency modulation (PSK – Temik, etc.)
These cards do not have cloning protection, but are very popular due to their low cost
Mifare® identifiers
The reader supports work with Mifare® cards, reads encrypted identifiers with a user-assigned card number, with a static or diversified encryption key.
Up to five encryption profiles can be used simultaneously.
Mifare®Classic
The least secure series of cards, has a Crypto 1 (SL1) encryption algorithm vulnerability.
When using it, it is recommended to encrypt all card sectors with a diversified encryption key.
Mifare®Plus
The reader supports SL1 and SL3 modes for Mifare®Plus. It is recommended to use SL3 mode as it has the highest security and AES encryption algorithm.
Mifare®Defire
The reader supports Mifare DESFire EV1, EV2 and EV3 cards. AES encryption algorithm is supported.
Warranty
Warranty for U-PROX devices (except batteries) is valid for two years after the purchase date. If the device operates incorrectly, please contact support@u-prox.systems at first, maybe it can be solved remotely.
